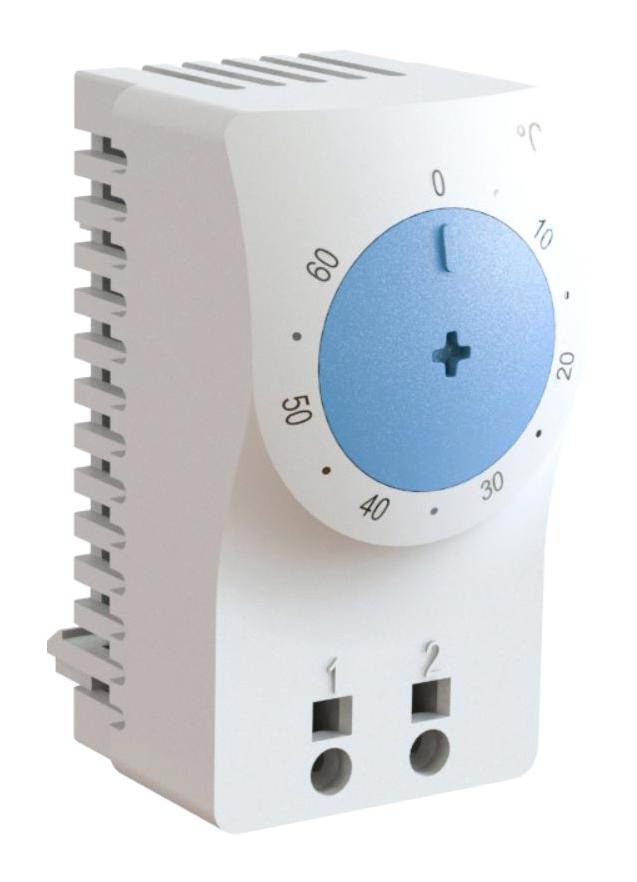

STEGO 11101000 Compact Thermostat Regulator
STEGO KTO 111 and KTS 111 mechanical thermostats are compact regulators suitable for a variety of applications, including heaters, filter fans, and heat exchangers. These thermostats are designed for use in challenging environments, with optimized air gaps and increased creepage distance allowing operation up to 5,000 meters in altitude. The Push-In terminals enable tool-free wiring and provide a secure connection, preventing wires from loosening during transport. The KTO 111 model functions as a contact breaker, opening the circuit when the temperature rises, while the KTS 111 model acts as a contact maker, closing the circuit when the temperature rises. They are ideal for industrial applications requiring reliable temperature regulation in demanding conditions.
STEGO 11101000 Compact Thermostat Regulator Specifications:
- Switch temperature difference: 7 K (±4 K tolerance)
- Sensor element: thermostatic bimetal
- Contact type: snap-action contact
- Service life: 100,000 cycles verified
- Max. operating voltage, frequency range: AC 250 V, 50-60 Hz
- Max. inrush current: AC 16 A for 10 sec.
- Connection: 2 Push-In clamps
- rigid wire: 2.5 mm² (AWG 14)
- stranded wire: 1.5 mm² (AWG 16)
- Mounting: clip for 35 mm DIN rail, EN 60715
- Casing: plastic according to UL94 V-0, light grey
- Dimensions: 60 x 33 x 41 mm
- Weight: approx. 40 g
- Fitting position: variable
- Operating/Storage temperature: -45 to +80 °C (-49 to +176 °F)
- Operating/Storage humidity: max. 90 % RH (non-condensing)
- Protection type/Protection class: IP20 / II
- Overvoltage category/Altitude: II: up to 5,000 m; III: up to 2,000 m
- Setting range: 0 to +60 °C
- Switching current: 10 (2) A
- AC Voltage: 250 V
- DC Voltage: 24-72 V
- Approvals: VDE, UL File No. E164102, EAC
Buy the 11101.0-00 STEGO Compact Thermostat Regulator | myMectronic
Purchase the STEGO 11101.0-00 thermostat securely and efficiently through our online store.
