STMICROELECTRONICS AEKCONSENSOR1 Sensor Connector Board

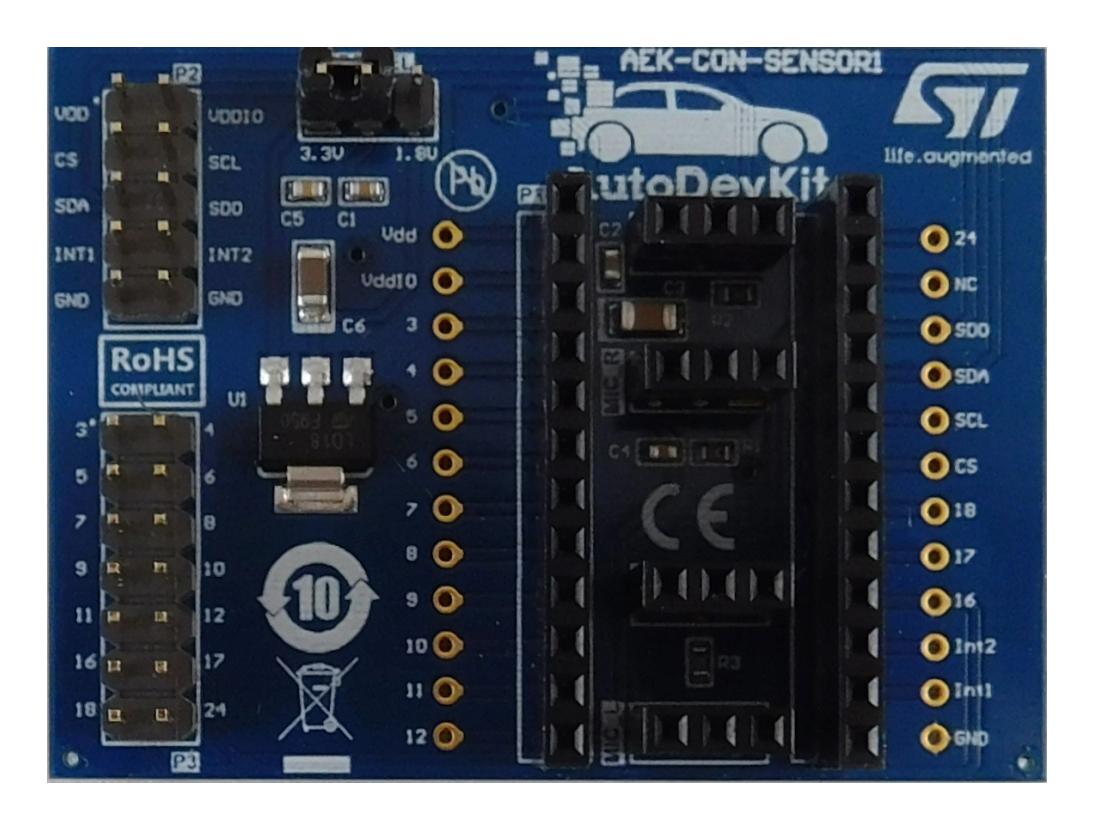

The STMICROELECTRONICS AEK-CON-SENSOR1 is a specialized connector board engineered to bridge MEMS sensor boards (in a DIL 24 socket) with SPC5 MCU discovery boards, such as the AEK-MCUC4MLIT1. This board incorporates a 1.8 V LDO voltage regulator to provide stable power to the MEMS boards. It features male strip connectors for power, SPI interface, signal interrupt, and optional GPIO connections, depending on the connected sensor. The AEK-CON-SENSOR1 is part of the AutoDevKit initiative and finds applications in areas like In-Vehicle Infotainment, Electro-Mobility, and Telematics Boxes.
STMICROELECTRONICS AEKCONSENSOR1 Sensor Connector Board Specifications:
- Connector Type: DIL 24 Socket
- Supported Sensors: Digital Microphones, 2D/3D Accelerometers, Inclinometers
- Voltage Regulator: 1.8 V LDO
- Dimensions: 56 mm x 41 mm
- Compliance: WEEE and RoHS compliant
- AutoDevKit Initiative: Included
- MCU Compatibility: SPC5 Chorus family automotive MCU
- Connector Type 1: 5x2 (Power, SPI, Interrupt)
- Connector Type 2: 7x2 (Optional GPIO)
- Connector Type 3: 12x2 (MEMS Sensors)
- Revision: Rev 1
- Date: February 2021
