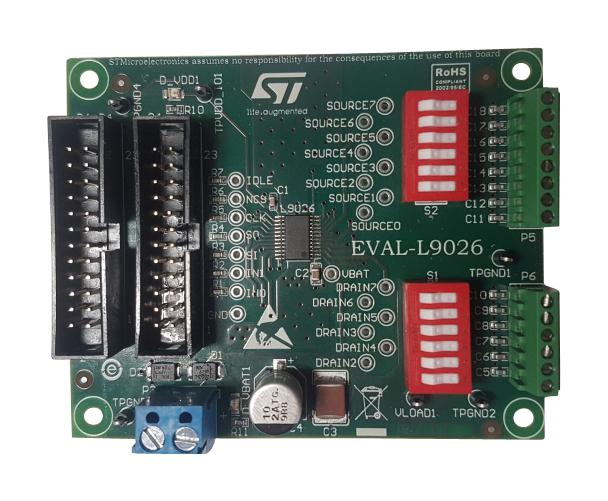

STMICROELECTRONICS EVALL9026YO Multi-channel power driver board
The EVAL-L9026-Y0O is an affordable evaluation board designed for the L9026, a multi-channel smart power IC by STMicroelectronics. It features two fixed high-side drivers up to 1A and six configurable high/low-side drivers also rated up to 1A, suitable for automotive LED and relay applications. The board supports SPI control, parallel inputs, Daisy chain setup, and diagnostics like short circuit and overcurrent detection. With an 80x65 mm 4-layer PCB and versatile interfaces, it facilitates advanced testing and configuration, ensuring reliable operation even under low voltage conditions from 3V to 18V.
STMICROELECTRONICS EVALL9026YO Multi-channel power driver board Specifications:
- Operating input voltage: 3 V to 18 V
- Two fixed high-side drivers up to 1A
- Six configurable high/low-side drivers up to 1A
- Idle mode for reduced current consumption
- Daisy chain compatibility with 8-bit SPI
- SPI communication interface and parallel input mapping
- 80x65 mm 4-layer PCB
- Supports resistive, inductive, and capacitive loads
- Includes diagnostic features: short to GND, open load, overcurrent, over-temperature detection
- Dimensions: 80 x 65 mm
Buy the STMicroelectronics EVALL9026YO – Reliable Multi-Channel Power Driver for Industrial Applications
Purchase the STMicroelectronics EVALL9026YO evaluation board online today to leverage advanced diagnostics, configurable drivers, and robust interfaces tailored for automotive and industrial applications. This cost-effective tool enables seamless control through SPI and parallel inputs, making it ideal for testing and integrating multi-channel power solutions. Its compact 80x65 mm design with a 4-layer PCB ensures durability and performance. Get your unit now and enjoy reliable operation, extensive diagnostic feedback, and flexible configurations to optimize your power management systems efficiently.
Buy STMicroelectronics EVALL9026YO now and experience unmatched reliability and flexible multi-channel power control, ideal for automotive and industrial use.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALL9026YO?
You can click on the BUY or RFQ button to purchase EVALL9026YO from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALL9026YO?
You can download the EVALL9026YO datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALL9026YO?
STMICROELECTRONICS
