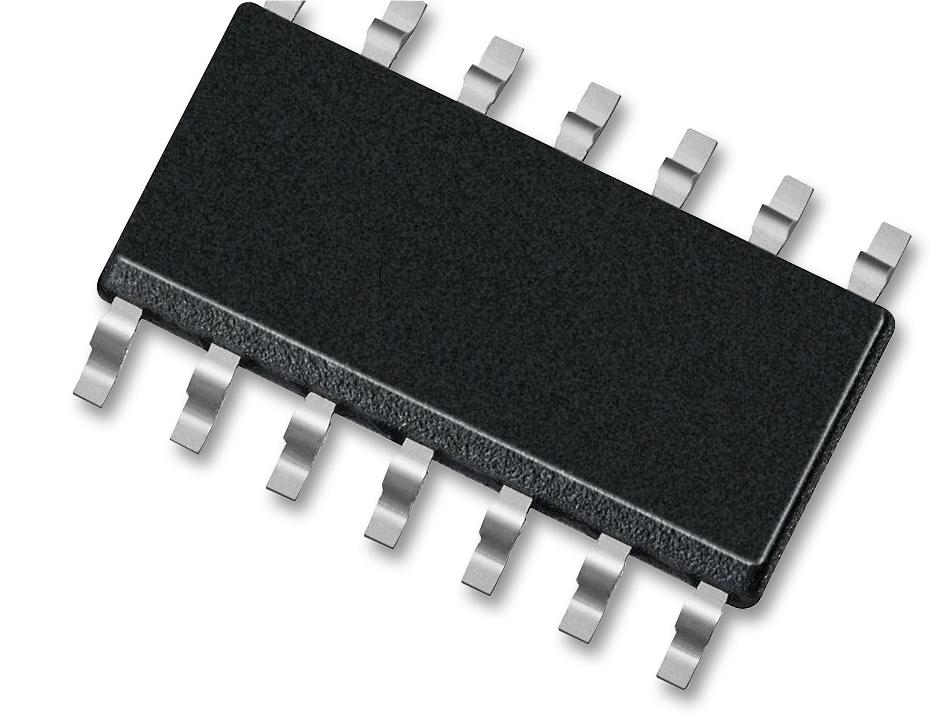

STMICROELECTRONICS HCF4013YM013TR Dual Flip-Flop IC
The HCF4013 is a dual D-type flip-flop IC designed for reliable digital applications in industrial, automotive, computer, and consumer electronics. Fabricated using silicon MOS technology, it features independent set, reset, and clock inputs for each flip-flop, enabling versatile use in shift registers, counters, and toggle circuits. With a compact PDIP14 package, it supports high-speed operation up to 16 MHz, low quiescent current, and robust ESD protection, meeting industry standards for durability and performance under a temperature range from -55°C to +125°C. Ideal for various control and logic functions.
STMICROELECTRONICS HCF4013YM013TR Dual Flip-Flop IC Specifications:
- Package: PDIP14
- Supply Voltage: 3 V to 20 V
- Maximum Operating Temperature: -55°C to +125°C
- Input Leakage Current: 100 nA at Vpp = 18 V
- High-Level Output Voltage: typically 4.95 V at 5 V supply
- Low-Level Output Voltage: typically 0.05 V at 5 V supply
- Propagation Delay Time: 45 to 130 ns (typical)
- Transition Time: approximately 50 ns
- Clock Frequency: up to 16 MHz
- ESD Protection: 2 kV HBM, 1 kV CDM
- Power Dissipation: 200 mW maximum
- Pin Configuration: includes VDD, VSS, Data, Set, Reset, Clock, Q, and Q outputs
- Features: Independent set/reset, static operation, symmetrical output characteristics, reliable performance over wide temperature range
Buy the STMicroelectronics HCF4013 Dual D-type Flip-Flop – Reliable Digital Logic for Industrial Applications
Purchase the STMicroelectronics HCF4013 dual D-type flip-flop online now to leverage its high-speed operation, independent set and reset functions, and industrial-grade reliability. This versatile IC in PDIP14 package is ideal for shift registers, counters, and toggle applications in industrial, automotive, computer, and consumer electronics. It offers wide temperature tolerance from -55°C to +125°C, high ESD protection, and low quiescent current, making it a dependable choice for demanding digital control systems. Get yours today for seamless integration into your electronics projects.
Order your STMicroelectronics HCF4013 dual D-type flip-flop today and ensure robust, high-speed digital performance in industrial, automotive, and consumer projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS HCF4013YM013TR?
You can click on the BUY or RFQ button to purchase HCF4013YM013TR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part HCF4013YM013TR?
You can download the HCF4013YM013TR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of HCF4013YM013TR?
STMICROELECTRONICS
