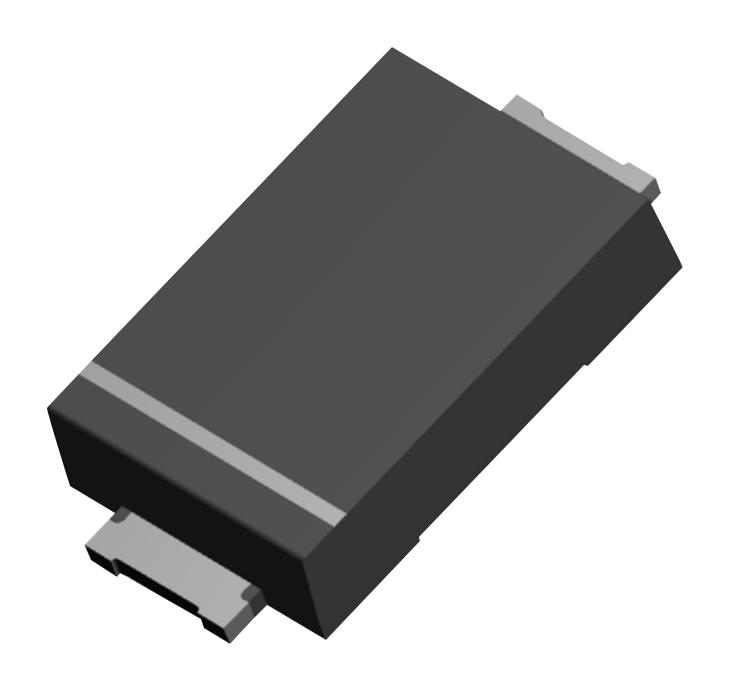

STMICROELECTRONICS SMA6F58A Transient Voltage Suppressor
The SMA6F series are high-power transient voltage suppressors designed for circuit protection against voltage surges. Featuring planar technology, these unidirectional smd devices handle peak pulse power up to 600 W (10/1000 us) and 4 kW (8/20 us). They have a stand-off voltage range from 5 V to 188 V, low leakage currents, and operate at maximum junction temperatures of 175 °C. Their compact 1 mm flat and thin package ensures compatibility with high-end circuits requiring stability, reliability, and compliance with standards like UL94 and IEC 61000-4-2. Ideal in telecommunications, data communication, and power supply circuits.
STMICROELECTRONICS SMA6F58A Transient Voltage Suppressor Specifications:
- Peak pulse power: 600 W (10/1000 us) and 4 kW (8/20 us)
- Stand-off voltage: 5 V to 188 V
- Maximum leakage current: 0.2 yA at 25 °C and 1 pA at 85 °C
- Operating junction temperature: -55 °C to +175 °C
- Maximum lead soldering temperature: 260 °C for 10 seconds
- Peak pulse voltage contact discharge: 30 kV
- Peak pulse voltage air discharge: 30 kV
- Compliance standards: UL94 VO, IEC 61000-4-2 level 4, J-STD-020 MSL level 1
- Package: JEDEC registered outline, 1 mm flat and thin package
- Lead finish: Matte tin plating
Buy the High-Performance Series Transil: SMA6F58A
Purchase SMA6F58A transient voltage suppressor online today to safeguard your electronic circuits from voltage surges and transient events. Designed for high power and low leakage, this compact device offers superior surge protection with a maximum pulse power of 600 W and a stand-off voltage up to 188 V. Featuring reliable planar technology, it ensures long-term stability, low leakage, and compliance with multiple safety standards. Ideal for telecommunications, power supplies, and high-end circuit protection applications, buy now for top-tier surge immunity and hassle-free installation.
Buy SMA6F58A high-power transient voltage suppressor series now and experience unmatched reliability, stability, and surge protection for sensitive circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMA6F58A?
You can click on the BUY or RFQ button to purchase SMA6F58A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMA6F58A?
You can download the SMA6F58A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMA6F58A?
STMICROELECTRONICS
