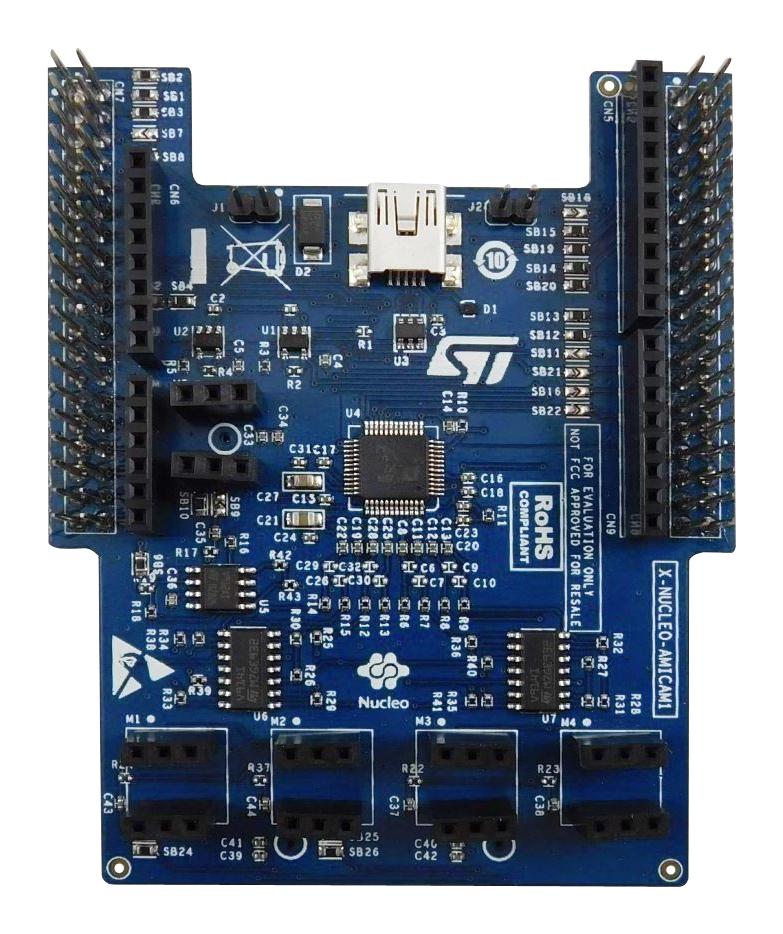

STMICROELECTRONICS XNUCLEOAMICAM1 MEMS Microphone Expansion Board
The X-NUCLEO-AMICAM1 is an analog MEMS microphone expansion board compatible with STM32 Nucleo systems, designed for synchronized audio acquisition of up to four microphones at sample rates up to 192 KHz. Featuring three onboard P23ABS 1 MEMS microphones—two connected to external ADCs and one routed to an embedded ADC—it supports high-performance audio sensing. The board includes amplification stages with wide bandwidth operational amplifiers, ST morpho and Arduino connectors for stacking, and is ideal for developing microphone-based applications and audio algorithms with flexible integration options.
STMICROELECTRONICS XNUCLEOAMICAM1 MEMS Microphone Expansion Board Specifications:
- Supports synchronized acquisition of up to 4 microphones
- Maximum sampling rate of 192 KHz
- On-board 3 P23ABS 1 MEMS microphones
- Two microphones connected to external ADCs
- One microphone routed directly to embedded STM32 ADC
- Amplification with TSV91x wide bandwidth op-amps
- Compatible with ST morpho, Arduino R3 connectors
- RoHS and WEEE compliant
- Designed for high-performance audio sensing and development
- Supports analog microphone coupon boards like STEVAL-MICO04V/1
- Suitable for developing microphone-based sensor applications
- Stackable with other I/O expansion boards
- Supports external and embedded audio capturing at high fidelity
Buy the STMicroelectronics Series MEMS Microphone: XNUCLEO-AMICAM1
Enhance your audio sensing projects with the versatile MEMS Microphone Expansion Board for STM32 Nucleo. Supporting four microphones at 192 KHz, it offers synchronized data acquisition, high-quality analog MEMS microphones, and easy stacking with compatible connectors. Perfect for speech recognition, noise monitoring, and audio processing, the board is RoHS compliant and compatible with various microphone coupon modules. Quickly develop advanced microphone-based applications and streamline your audio algorithm implementation with this reliable, high-performance expansion solution.
Get STMicroelectronics XNUCLEO-AMICAM1 today—built for precision audio sensing and reliable microphone integration in your projects.
