STMICROELECTRONICS ST6G3244MEBJR Level Translator
The ST6G3244ME is a dual supply, low voltage 6-bit bi-directional CMOS level translator designed for SD, mini SD, and micro SD cards. It provides high-speed operation with low power dissipation, supporting SDR and DDR modes at 60 MHz clock rate. The device features internal LDOs to supply 1.8 V or 2.9 V to B-side I/Os, with ESD protection on card and host sides. Ideal for mobile phones, cameras, SD readers, and portable devices requiring reliable memory card interfacing.
STMICROELECTRONICS ST6G3244MEBJR Level Translator Specifications:
- Supports 60 MHz clock rate
- Supports DDR mode for SD Card
- Compliant with SD Specification Part 1 Physical Layer Specification 3.00 and 2.00
- Bi-directional with direction control pin
- Internal LDO supplies 1.8 V or 2.9 V for B-side I/Os
- Supports Voca from 1.62 V to 1.98 V and Vpat from 3.0 V to 5.0 V
- Operating temperature range from -40°C to +85°C

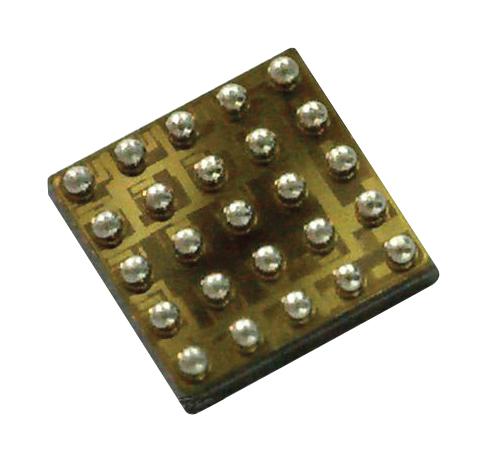

- Package: Flip Chip 25 (2 x 2 x 0.605 mm, 0.4 mm bump pitch)
- ESD protection: +2 kV on A-side, +15 kV on B-side (contact discharge), +8 kV (air discharge)
- Maximum junction temperature: 150°C
- Maximum power dissipation: 1 W
- Storage temperature: -55°C to 150°C
- Supports external decoupling and EMI filtering
Buy the STMicroelectronics ST6G3244ME – Reliable SD Card Level Translator for Industrial Applications
Purchase the ST6G3244ME today for your mobile devices, cameras, or SD card readers. This high-speed, low-power CMOS level translator ensures robust communication with SD, mini SD, and micro SD cards. Featuring internal LDOs for flexible power options and comprehensive ESD protection, it guarantees durability in industrial and portable applications. Fast delivery available online, providing you with a dependable component for seamless memory card interfacing in high-performance systems.
Order your STMicroelectronics ST6G3244ME dual supply CMOS level translator today and enhance the reliability of your SD memory card interfaces in industrial devices.
