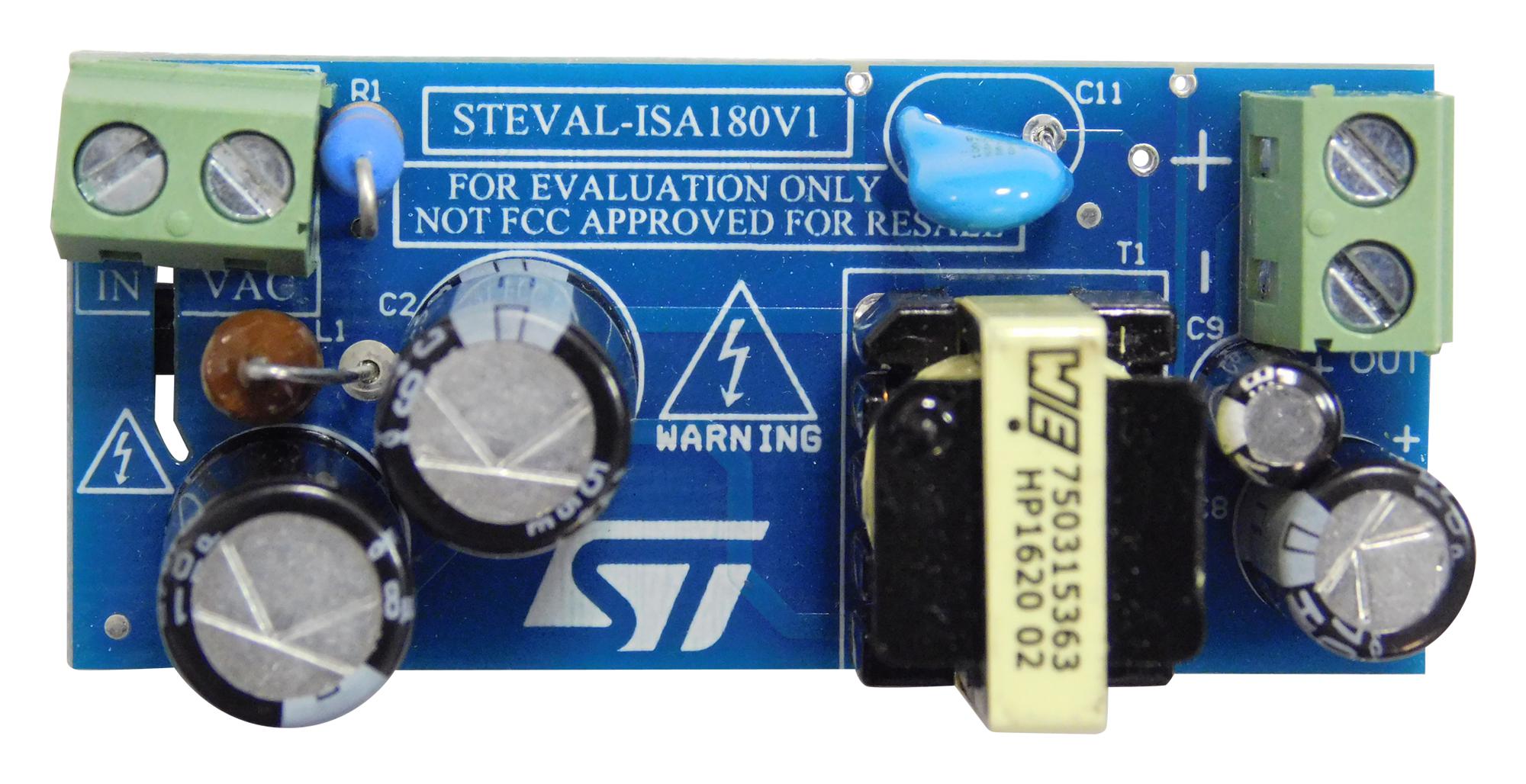

STMICROELECTRONICS STEVALISA180V1 Flyback Converter Module
The STEVAL-ISA180V1 evaluation board is designed for efficient, high-performance flyback isolated power conversion, capable of delivering 12 V at 0.6 A. This compact and reliable board features an 800 V MOSFET with PWM current-mode control, offering high efficiency (>80%) and low standby power consumption (<18 mW at 230 Vac). It supports a universal input voltage range from 85 to 265 Vac, includes protections like overload and flux runaway prevention, and complies with EN55022-Class-B EMI standards. Suitable for general purpose applications where compact size and reliability are essential.
STMICROELECTRONICS STEVALISA180V1 Flyback Converter Module Specifications:
- Input Voltage Range: 85 to 265 Vac
- Output Voltage: 12 V
- Output Current: 0.6 A
- Rated Power: 7.2 W
- Efficiency: > 80%
- Standby Power Consumption: less than 18 mW at 230 Vac
- Protection: flux runaway, overload protection, Vcc clamp, thermal shutdown
- EMI Compliance: EN55022-Class-B
- High-Voltage MOSFET: 800 V
- Control: PWM current-mode control
- Certification: ROHS compliant
- Size: Small form factor
- Operating Temperature: Typical for power electronics applications
Buy the Buy STMicroelectronics STEVAL-ISA180V1 Part Number STEVALISA180V1 Online
Purchase the STMicroelectronics STEVAL-ISA180V1 today for efficient 12 V, 0.6 A isolated power conversion in a compact design. This versatile evaluation board features high efficiency over 80%, wide input voltage support from 85 to 265 Vac, and built-in protections including overload and flux runaway prevention. Ideal for general purpose applications, it consumes less than 18 mW in standby, meets EMI standards, and is ROHS compliant. Order now to benefit from reliable, compact power solutions with minimal BOM.
Get STMicroelectronics STEVAL-ISA180V1 today—compact, high efficiency flyback converter with reliable protections for general purpose power conversion.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISA180V1?
You can click on the BUY or RFQ button to purchase STEVALISA180V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISA180V1?
You can download the STEVALISA180V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISA180V1?
STMICROELECTRONICS
