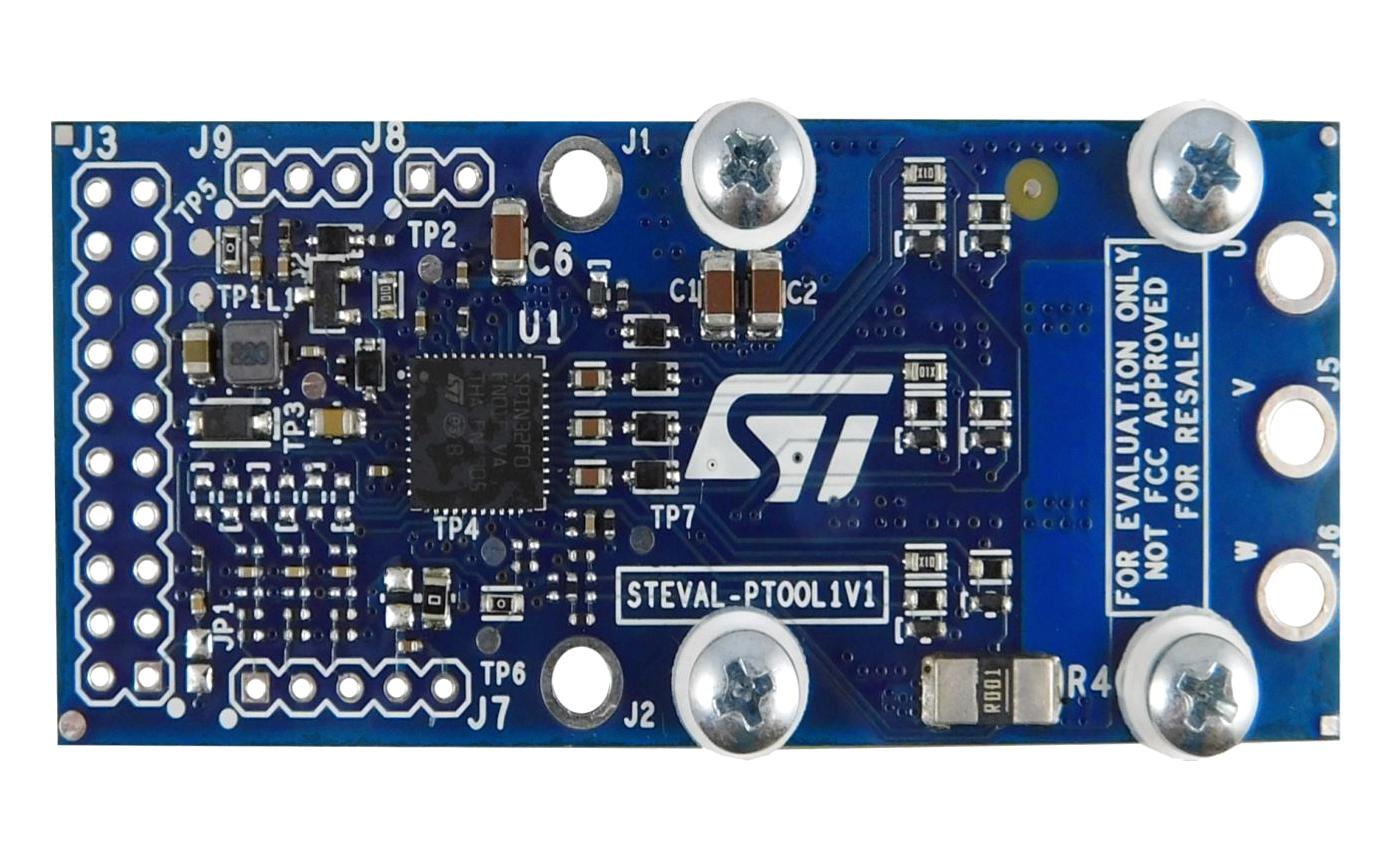

STMICROELECTRONICS STEVALPTOOL1V1 Low Voltage Brushless Power Controller
This compact reference design board, measuring 70 mm by 30 mm, is optimized for low voltage power tools utilizing 3-phase brushless motors powered by 2S to 6S batteries. It features the STSPIN32FOB controller, STL180N6F7 Power MOSFET, and supports sensorless and sensored FOC, with six-step firmware for Hall effect sensor feedback. The design provides up to 15 Amperes continuous current, embedded heatsink for thermal management, multiple protections, and debugging capabilities. Ideal for battery-powered tools and similar applications requiring reliable motor control and efficiency.
STMICROELECTRONICS STEVALPTOOL1V1 Low Voltage Brushless Power Controller Specifications:
- Motor voltage rating: 7V-45V
- Supported battery configurations: 2S to 6S
- Output current: Up to 15 Arms
- Controller: STSPIN32FOB with embedded STM32 MCU
- Power MOSFET: STL180N6F7 60 V, 1.9 mQ
- Size: 70 mm x 30 mm
- Standby current: below 1 μA
- Peak temperature: supported up to 105°C
- Protection features: thermal shutdown, UVLO, overcurrent, reverse bias
- Input: Hall sensors and encoder connectors
- Firmware: six-step sensorless and sensored FOC
- Adjustable speed: via external trimmer
- Debugging: SWD interface and DFU firmware update
- Applications: Power tools, battery-operated systems
Buy the Buy STMicroelectronics STEVALPTOOL1V1 Part Number STEVALPTOOL1V1 Online
Purchase the STMicroelectronics STEVALPTOOL1V1 online today to enhance your battery-powered power tools with a compact, efficient, and highly protected motor control solution. This controller features advanced sensorless and sensored FOC, supports up to 15A continuous current, and includes thermal management with an embedded heatsink for extended durability. It offers flexible input options for Hall sensors and encoders, along with debugging and firmware update capabilities. Ideal for professional power tools and portable motors requiring reliable performance and easy integration in demanding environments.
Order your STMicroelectronics STEVALPTOOL1V1 today and experience reliable, high-performance control for low voltage power tools and battery-powered applications.
