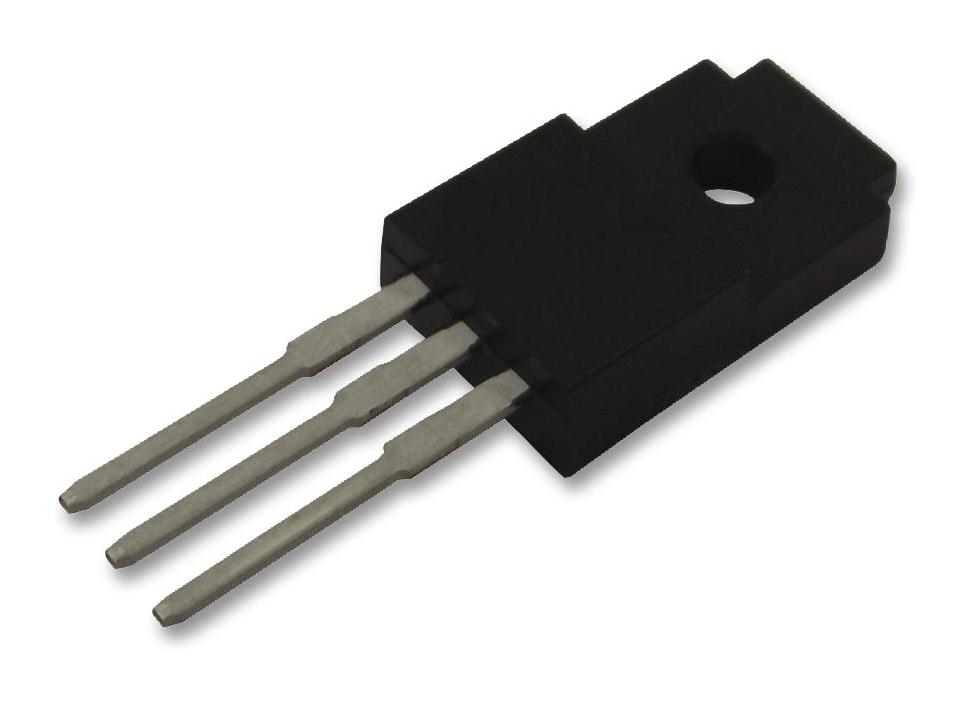

STMICROELECTRONICS T1235T8FP AC Switch Triac
The T1235T-8FP is a high-performance, medium current triac designed for general purpose AC line load switching, motor control, small appliances, and lighting applications. It features high static and dynamic commutation capabilities, three-quadrant operation, and UL certification with a 2 kV insulation rating. The device supports inrush current limiting, overvoltage crowbar protection, and can operate without a snubber circuit under specified conditions. Its robust specifications make it suitable for phase angle control and overvoltage protection in various industrial and consumer electronic applications.
STMICROELECTRONICS T1235T8FP AC Switch Triac Specifications:
- Maximum RMS on-state current: 12 A
- Maximum repetitive peak off-state voltage: 800 V
- Maximum non-repetitive surge peak on-state current: 90 A
- Gate trigger current: 40 mA (max), gate trigger voltage: 1.3 V (max)
- Insulation rating: 2 kV UL certified
- Storage temperature range: -40°C to +150°C
- Operating junction temperature range: -40°C to +150°C
- Maximum lead temperature during soldering: 260°C for 10 seconds
- Package: TO-220FPAB with dimensions: A: 4.4-4.6 mm, B: 2.5-2.7 mm, D: 2.5-2.75 mm, G: 4.95-5.2 mm, H: 10-10.4 mm
- Thermal resistance junction to ambient: 60 °C/W
- Maximum power dissipation: varies with current and case temperature, with a typical power dissipation curve
- ECOPACK® compliant package for environmental standards
- Recommended torque for mounting: 0.4 to 0.6 N-m
Buy the STMicroelectronics Series T1235T-8FP Triac: 12 A, 800 V
Purchase the STMicroelectronics Series T1235T-8FP Triac online today to ensure reliable AC load switching, motor control, and appliance protection. This high-quality device offers excellent static and dynamic commutation, UL certification, and a robust insulation rating, making it ideal for industrial and home applications. Its snubberless design supports high surge currents and phase angle control, reducing circuit complexity. With environmentally friendly ECOPACK® packaging and a compact TO-220FPAB package, it guarantees easy installation, durability, and superior performance for your electronic control needs.
Order your STMicroelectronics Series T1235T-8FP Triac today and give your projects the dependable quality they deserve with high commutation capability and UL certification.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS T1235T8FP?
You can click on the BUY or RFQ button to purchase T1235T8FP from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part T1235T8FP?
You can download the T1235T8FP datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of T1235T8FP?
STMICROELECTRONICS
