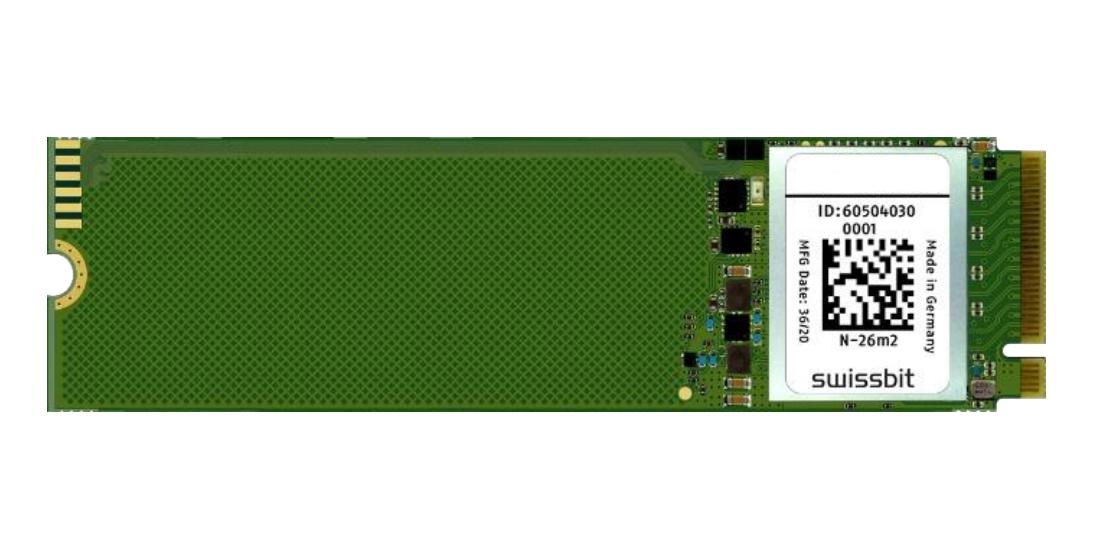

SWISSBIT SFPC040GM1EC4TOI5E51PSTD Industrial NVMe SSD
The Swissbit N-26m2 SSD leverages M.2 and NVMe standards for high-speed, reliable non-volatile storage, supporting capacities up to 160 GBytes. Equipped with a robust controller, 3D NAND flash, and advanced data management features, it delivers sequential read speeds up to 1,773 MB/s and write speeds up to 827 MB/s. Designed for industrial applications, the SSD operates in temperatures from -40°C to 85°C, ensures data integrity with ECC, and supports multiple power states for low power consumption. Its mechanical dimensions comply with JEDEC standards, making it suitable for embedded and enterprise systems requiring high endurance and performance.
SWISSBIT SFPC040GM1EC4TOI5E51PSTD Industrial NVMe SSD Specifications:
- Capacities: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
- Form Factor: PCI Express M.2 2230/2242/2280 (30/42/80 mm x 22 mm x 2.63 mm)
- Interface: Gen3 x2, 4 Lanes, supports NVMe 1.3
- Sequential Read: up to 1,773 MB/s, Random Read: up to 140,000 IOPS
- Sequential Write: up to 827 MB/s, Random Write: up to 131,000 IOPS
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Power Supply: 3.3V, 1.8V, and 0.9V
- MTBF: > 2,000,000 hours
- Data Reliability: <1 Non-Recoverable Error per 10^14 bits read
- Physical Dimensions: Length varies with form factor, height 2.63 mm, width 22 mm
- Mechanical: Supported by JEDEC standard LBA settings
- Regulatory Compliance: RoHS, REACh, WEEE
Buy the Swissbit Series NVMe SSD: SFPC040GM1EC4TOI5E51PSTD
Order the Swissbit industrial NVMe SSD online today to experience ultra-fast data transfer speeds, extensive temperature tolerance, and reliable data protection features. Perfect for embedded systems, enterprise applications, and demanding industrial environments requiring high endurance and consistent performance. Our SSD supports NVMe 1.3, offers capacities up to 160GB, and ensures long-term data integrity with ECC and advanced wear leveling. Purchase now for a robust, high-performance storage solution tailored to meet critical operational needs and minimize downtime.
Get Swissbit SFPC040GM1EC4TOI5E51PSTD today—built for high-speed data transfer, durability, and industrial reliability.
Frequently Asked Questions
Where can I buy SWISSBIT SFPC040GM1EC4TOI5E51PSTD?
You can click on the BUY or RFQ button to purchase SFPC040GM1EC4TOI5E51PSTD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFPC040GM1EC4TOI5E51PSTD?
You can download the SFPC040GM1EC4TOI5E51PSTD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFPC040GM1EC4TOI5E51PSTD?
SWISSBIT
