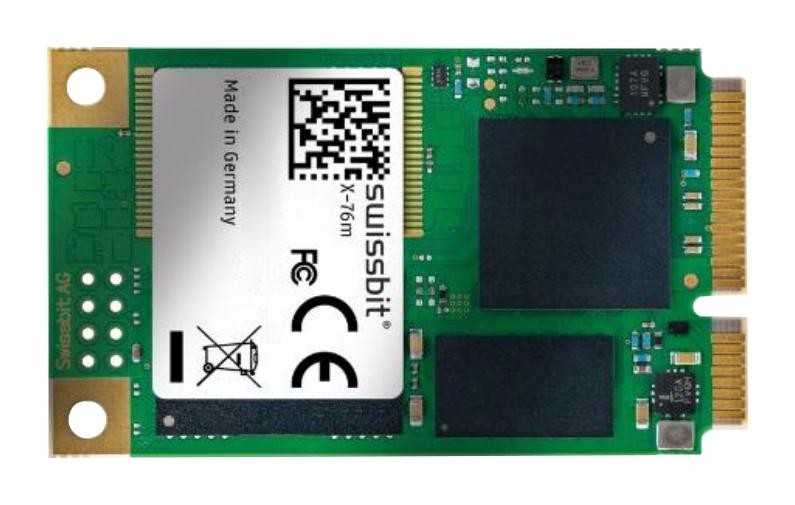

SWISSBIT SFSA010GU2AK1TOI5S22PSTD industrial mSATA SSD

The Swissbit X-76m Series is a high-performance industrial-grade mSATA SSD offering capacities from 10 GB to 320 GB. Utilizing Triple-Level Cell (TLC) 3D NAND flash in pSLC mode, it features SATA Gen3 interface (6 Gbit/s), support for AES256 encryption, TCG Opal 2.0, and advanced wear leveling and data management. Designed for rugged environments, it supports operating temperatures from -40°C to 85°C, with high endurance, power fail protection, and in-field firmware updates. Compact, reliable, and compliant with industry standards, it is suitable for embedded, industrial, and mission-critical applications.

Swissbit Series X-76m SSD: SFSA010GU2AK1TOI5S22PSTD
View SFSA010GU2AK1TOI5S22PSTDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFSA010GU2AK1TO-I-5S-22P-STD
Stock:9
Inv Date:06-15-2026
Price: Unit price: $181.84
Buy/RFQ:
Source:Mouser Electronics
Part No:SFSA010GU2AK1TO-I-5S-22P-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFSA010GU2AK1TOI5S22PSTD industrial mSATA SSD Specifications:

  • Form Factor: JEDEC MO-300A, 50.8 mm x 29.85 mm x 3.8 mm
  • Capacities: 10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB
  • Interface: SATA Gen3, backward compatible with Gen2 and Gen1
  • Performance: Sequential Read up to 560 MB/s, Write up to 480 MB/s; Random Read 74,000 IOPS, Write 84,900 IOPS
  • Operating Temperature: -40°C to 85°C (industrial), 0°C to 70°C (commercial)
  • Voltage: 3.3V ±5%
  • MTBF: > 2,000,000 hours
  • Endurance: Up to 10,520 TBW at max capacity
  • Physical Dimensions: 50.80 mm x 29.85 mm x 3.80 mm; Weight: <7 g
  • Regulatory Compliance: RoHS, WEEE, REACh, EMC, and others
  • Features: AES256 encryption (optional), TCG Opal 2.0 (optional), Power fail safety, Data security, Wear leveling, Bad block management
  • Connector: 52-pin edge connector supporting read/write and power
  • Mechanical robustness: Two JEDEC-compliant mounting holes
  • Environmental: Shock resistant (1500 g), vibration (50 g), humidity (85% RH), long-term storage -40°C to 85°C

Buy the Swissbit Series X-76m SSD: SFSA010GU2AK1TOI5S22PSTD

Experience the robust power and high-speed performance of the Swissbit X-76m series SSD. Designed for industrial and embedded applications, it offers capacities up to 320 GB, SATA Gen3 support, AES encryption, and a wide temperature range from -40°C to 85°C. With proven endurance, power fail protection, and in-field firmware updates, this compact SSD ensures reliable data integrity in harsh environments. Perfect for mission-critical systems requiring durability, fast data access, and secure storage solutions. Order online today to leverage superior reliability and performance.

Get Swissbit SFSA010GU2AK1TOI5S22PSTD today—built for industrial durability and high-speed data transfer.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA010GU2AK1TOI5S22PSTD?

You can click on the BUY or RFQ button to purchase SFSA010GU2AK1TOI5S22PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA010GU2AK1TOI5S22PSTD?

You can download the SFSA010GU2AK1TOI5S22PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA010GU2AK1TOI5S22PSTD?

SWISSBIT
