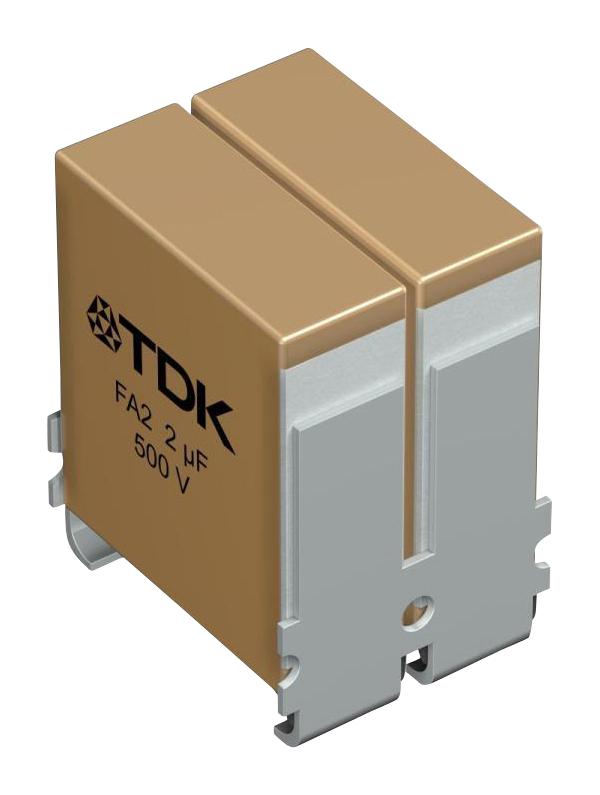

TDK Corporation B58035U9504M052 Ceramic Fast-Switching Capacitor
The CeraLink capacitor series by TDK is designed for fast-switching semiconductors, featuring high ripple current capability, high temperature robustness, and low ESR. It is constructed with RoHS-compliant PLZT ceramic, copper inner electrodes, and silver coatings, optimized for high-frequency applications up to several MHz with high capacitance density and minimized dielectric loss. Suitable for reflow soldering, these capacitors are qualified under AEC-Q200 rev. D, making them ideal for power converters, inverters, and DC link applications that demand reliability and high performance at operating temperatures up to +150°C.
TDK Corporation B58035U9504M052 Ceramic Fast-Switching Capacitor Specifications:
- Capacitance range: 0.14 to 3.50 μF depending on model
- Voltage ratings: 500V to 1300V
- Operating temperature: -40°C to +150°C
- Dissipation factor tan δ: < 0.02
- Insulation resistance: > 0.1 GΩ at 25°C
- Material: Lead lanthanum zirconium titanate (PLZT), copper inner electrodes, silver outer electrodes
- Construction: RoHS-compatible, suitable for reflow soldering
- Qualification: Based on AEC-Q200 rev. D
- Physical size: varies by type; typical dimensions in the product datasheet
- Reliability: Includes thorough testing for mechanical, thermal, humidity, and electrical endurance
Buy the TDK Series CeraLink Capacitor for Fast-Switching Semiconductors: B58035U9504M052
Purchase the TDK Series CeraLink B58035U9504M052 capacitor online today and benefit from its high ripple current capacity, excellent high-temperature stability, and low ESR. Designed for power converters and inverter circuits, this ceramic capacitor guarantees durability, reliable performance, and compliance with industry standards. With a compact design and qualified under strict automotive and industrial standards, this component provides a trusted solution for demanding high-frequency applications. Secure your supply now and enhance your project's efficiency and longevity.
Order your TDK Series CeraLink B58035U9504M052 capacitor today and ensure reliable, high-frequency performance for your power electronics projects.
Frequently Asked Questions
Where can I buy TDK Corporation B58035U9504M052?
You can click on the BUY or RFQ button to purchase B58035U9504M052 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part B58035U9504M052?
You can download the B58035U9504M052 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of B58035U9504M052?
TDK Corporation
