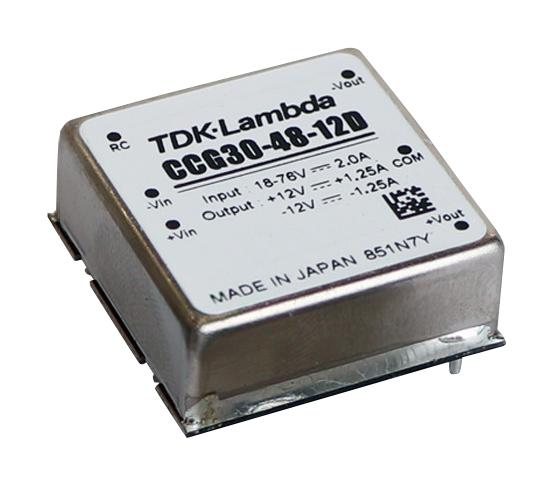

TDK-LAMBDA CCG304812D DC-DC Converter
The CCG15-30 Series from TDK-Lambda offers compact 15 to 30W DC-DC converters with industry-standard 1 x 1” footprint, high efficiency up to 92%, and broad input voltage ranges of 9 - 36V or 18 - 76V. Designed for industrial applications, these converters feature dual or single output options with precise voltage regulation, ripple suppression, overcurrent and overvoltage protection, and a temperature range from -40°C to +110°C. They are certified safety compliant with IEC/EN/UL standards, providing reliable power solutions for various demanding environments. The units are shielded on all six sides and include remote On/Off control for flexible integration.
TDK-LAMBDA CCG304812D DC-DC Converter Specifications:
- Power Rating: 15 to 30W
- Input Voltage Range: 9 - 36V or 18 - 76VDC
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, 30V
- Efficiency: Up to 92%
- Ripple & Noise (max): 70-190mV pk-pk
- Isolation: >100MΩ at 25°C, 500VDC to case
- Operating Temperature: -40°C to +110°C case, -40°C to +85°C ambient
- Size: 1.0 x 0.39 x 1.0 in (254 x 9.9 x 25.4 mm)
- Weight: 20g
- Safety Certifications: IEC/EN/UL/CSA60950-1, IEC/EN/UL/CSA62368-1, CE
- Mechanical: Six-sided shielding, convection or forced air cooling
- Overcurrent: >105%, hiccup mode
- Remote On/Off: Low=On, Open=Off
- Vibration: 10-55Hz, 1.52mm amplitude
- Shock: 490.3m/s²
- Withstand Voltage: 1kV input to case, 1.5kV input to output
- Temperature Coefficient: 0.02%/°C
Buy the TDK-Lambda Series CCG15-30 DC-DC Converter: CCG304812D
Enhance your power systems with the TDK-Lambda CCG15-30 series DC-DC converters, offering high efficiency up to 92%, broad voltage inputs, and excellent protection features. Compact, lightweight, and certified for safety, these converters are ideal for industrial automation, telecom, and medical devices. With remote On/Off, precise regulation, minimal ripple, and robust construction, you can ensure reliable operation even in harsh environments. Purchase online today and upgrade your power supply with industry-leading performance and durability.
Buy TDK-Lambda CCG304812D now and experience unmatched reliability and performance with compact size and high efficiency for demanding power applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CCG304812D?
You can click on the BUY or RFQ button to purchase CCG304812D from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CCG304812D?
You can download the CCG304812D datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CCG304812D?
TDK-LAMBDA
