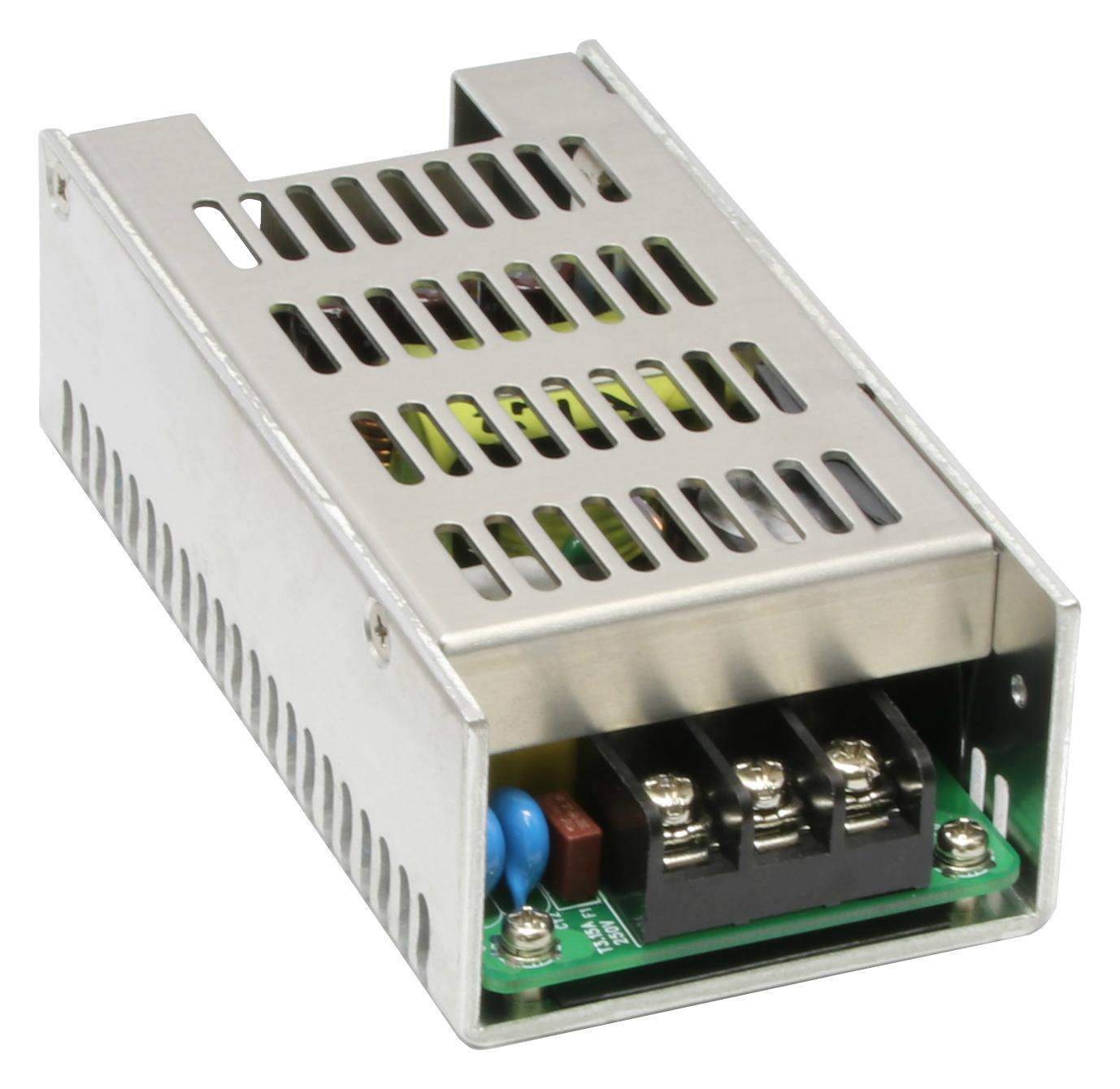

TDK-LAMBDA CSW6528A Industrial Power Supply
The CSW65-28/A from TDK-Lambda is an efficient U-channel AC to DC power supply designed for industrial environments. It accepts input voltages from 90VAC to 305VAC (47-63Hz) and delivers a stable 28V output at up to 2.33A, providing 65W of power. The unit features excellent ripple and noise performance at 280mV, overvoltage protection from 30.8V to 36.4V, and high efficiency of 89%. It complies with UL, CSA, IEC, EN safety standards, and EMI regulations EN55032-B, FCC Class B. Cooling is via convection, with robust insulation resistance over 20 MΩ, and withstand voltages suitable for demanding industrial applications. Compact dimensions and light weight enable versatile installation, making it ideal for automation, control systems, and manufacturing equipment.
TDK-LAMBDA CSW6528A Industrial Power Supply Specifications:
- Input Voltage Range: 90VAC to 305VAC (47-63Hz)
- Output Voltage: 28V
- Output Power: 65W
- Output Current: 2.33A
- Ripple & Noise: 280mV
- Overvoltage Protection: 30.8V to 36.4V
- Efficiency: 89%
- Operating Temperature: -10°C to +70°C
- Cooling: Convection
- Dimensions: 63.5mm x 120.7mm x 38.1mm (W x L x H)
- Weight: approximately 270 grams
- Isolation Resistance: >20 MΩ at 25°C & 70% RH
- Withstand Voltage: Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VDC
- Certifications: UL, CSA, IEC, EN60950-1, CE, UL1310 Class 2
- EMI: EN55032-B, FCC Class B
- Immunity: EN55024
Buy the TDK-Lambda Series CSW65 Power Supply: CSW6528A
Purchase the TDK-Lambda Series CSW6528A industrial power supply online today and enjoy rapid delivery of a reliable, efficient, and safe 28V 65W AC-DC converter designed for demanding industrial applications. Its UL, CSA, IEC, and CE certifications guarantee safety compliance, while high efficiency at 89% reduces energy costs. With excellent ripple performance, extensive insulation, and convection cooling, this compact unit is ideal for automation, control systems, and manufacturing processes. Secured with a three-year warranty, it offers durable performance for continuous operation.
Order your TDK-Lambda Series CSW6528A today and ensure reliable, efficient power for your industrial projects with superior safety and compliance features.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CSW6528A?
You can click on the BUY or RFQ button to purchase CSW6528A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CSW6528A?
You can download the CSW6528A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CSW6528A?
TDK-LAMBDA
