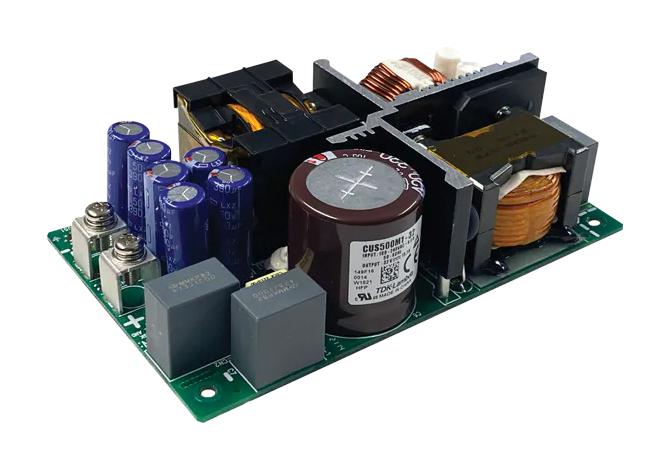

TDK-LAMBDA CUS500M112 Industrial Power Supply
The CUS500M1 power supply features a standard 3 x 5-inch footprint and provides 500W of power when cooled with forced air, or 300W in convection cooling, with a peak power capacity of 500W. It is certified for medical and industrial safety standards, suitable for both Class I (grounded) and Class II (no ground) applications. The unit also complies with Class B conducted and radiated EMI standards, and its compact size measures approximately 3 x 5 x 1.46 inches. Please note that extended lead times may apply due to high market demand; delivery dates are subject to fluctuation. This product is not eligible for discounts.
TDK-LAMBDA CUS500M112 Industrial Power Supply Specifications:
- Input Voltage range: 85-265 Vac
- Input Frequency: 47-63 Hz
- Efficiency: Up to 96%
- Power Output: 500W (forced air cooled), 300W (convection cooled)
- Dimensions: 3 x 5 x 1.46 inches
- Leakage Current: <200 uA at 265 Vac
- Hold Up Time: 22 ms at 115 Vac, 14 ms at 230 Vac
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Isolation Voltage: 2000 Vac input to ground, 4000 Vac input to output
- Weight: 450 g (Open frame), 790 g (/EF model with fan)
- Temperature Coefficient: 0.02 %/°C
- Input Voltage Derating: applies below 115 Vac
Buy the TDK Series CUS500M1 Power Supply: CUS500M112
Secure your TDK CUS500M112 power supply online today and enjoy efficient, reliable power delivery for medical and industrial systems. Certified for safety standards and EMI compliance, this compact unit offers 500W of output with options for forced air or convection cooling. Its robust design ensures high performance in demanding environments, supporting Class I and Class II applications. Purchase now to ensure your equipment operates smoothly with TDK's trusted power solutions, backed by a 5-year warranty and easy online ordering.
Buy TDK CUS500M112 power supply now and experience unmatched reliability and performance in medical and industrial applications.
