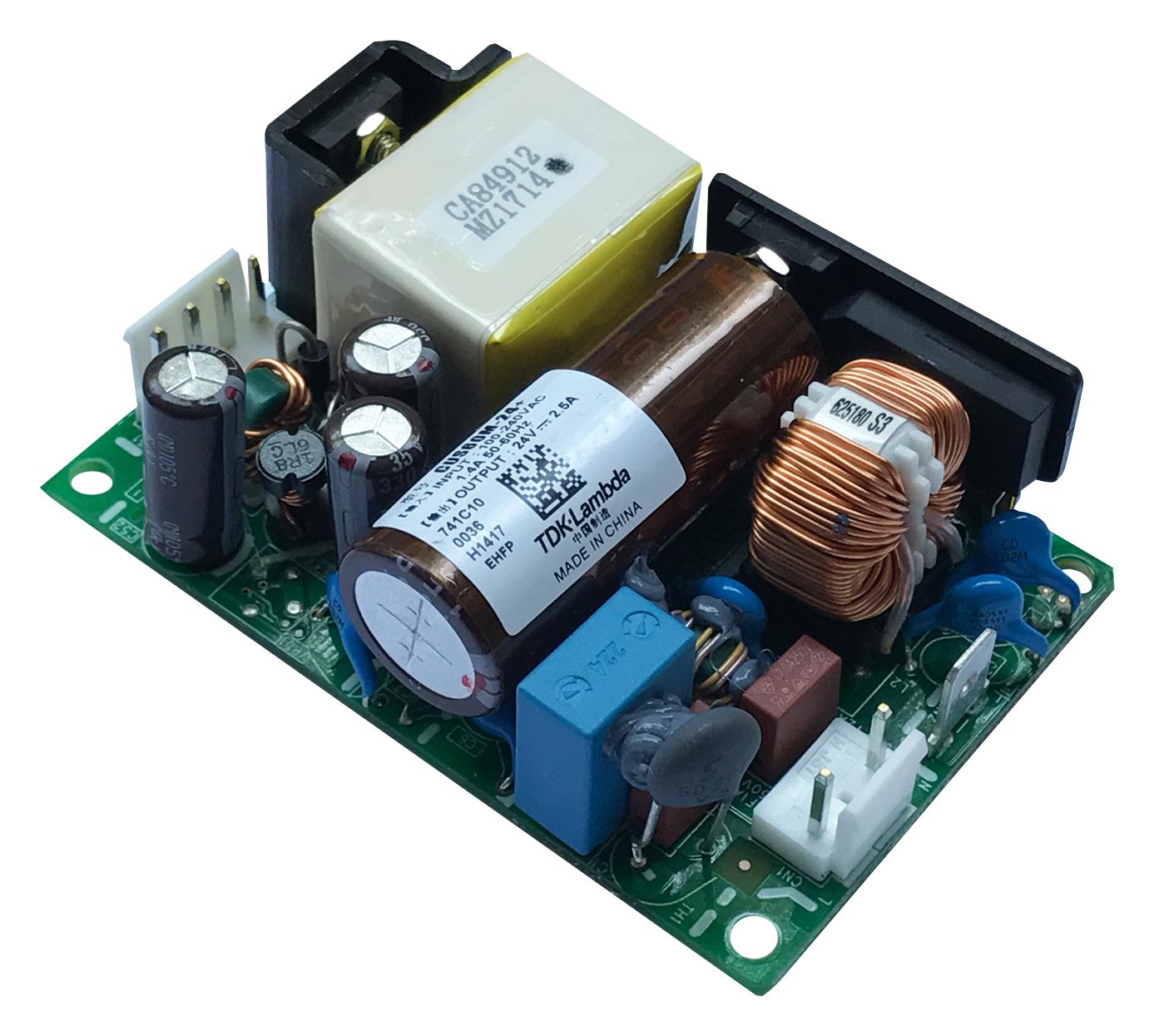

TDK-LAMBDA CUS60M18 Medical Power Supply
This compact power supply series offers high efficiency up to 90%, making it ideal for medical and industrial applications. With a 2" x 3" footprint, convection cooling, and medical approval including 2x MoPP isolation, it ensures reliable operation in healthcare equipment and medical devices. Suitable for Class I and II installations, these power supplies support a wide temperature range from -20°C to +70°C, derating at higher temperatures, and feature protections like overcurrent and overvoltage. Its low leakage current and safety certifications make it a dependable power solution for medical, test, broadcast, and industrial use.
TDK-LAMBDA CUS60M18 Medical Power Supply Specifications:
- Input Voltage: 85-265VAC
- Input Frequency: 47-63Hz
- Inrush Current: 30A at 115VAC, 60A at 230VAC
- Output Power: 30W to 60W
- Output Voltage Range: 5V to 48V
- Efficiency: Up to 90%
- Operating Temperature: -20°C to +70°C, derates above +50°C
- Storage Temperature: 40°C to +85°C
- Humidity: 10-95% RH (non-condensing)
- Isolation: 2x MoPP isolation for medical safety, 4kVAC input/output
- Leakage Current: <0.25mA at 265VAC
- Dimensions: 76.2mm x 50.8mm x 24.2mm or 26.7mm height
- Cooling: Convection cooled
- Certifications: UL, EN, CSA 60601-1, CE, IEC60601-1-2
- Weight: 62 to 120 grams
- Warranty: 3 years
Buy the Buy TDK-Lambda CUS60M Medical Power Supply Part Number CUS60M18 Online
Purchase the TDK-Lambda CUS60M power supply now online to ensure your medical or industrial equipment operates with dependable, high-efficiency power. Compact and convection cooled, this power supply features medical approval with 2x MoPP isolation, making it ideal for healthcare and sensitive applications. It offers wide input voltage compatibility, low leakage current, and robust safety features including overvoltage and overcurrent protection. With a 3-year warranty, secure your project’s power needs with this trusted solution for safety-critical environments.
Order your TDK-Lambda Series CUS60M medical power supply today and ensure reliable, efficient power for healthcare and industrial devices.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS60M18?
You can click on the BUY or RFQ button to purchase CUS60M18 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS60M18?
You can download the CUS60M18 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS60M18?
TDK-LAMBDA
