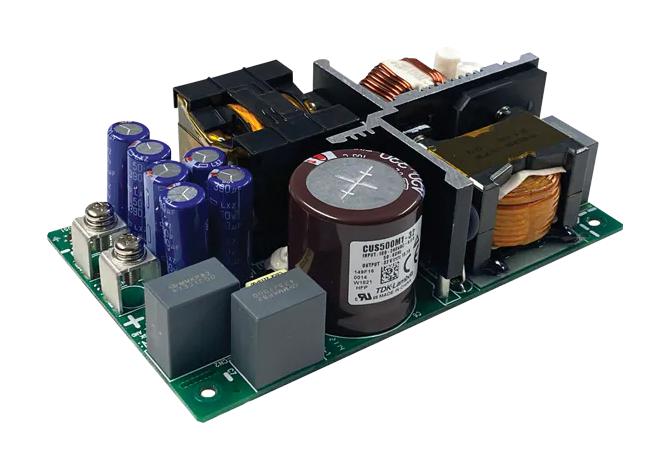

TDK-LAMBDA CUS500M119 Power Supply
The CUS500M1 power supply is housed in a compact 3 x 5 x 1.46-inch footprint, capable of delivering 500W with forced air cooling or 300W convection cooling, and a peak output of 500W. It is certified to medical and industrial safety standards, suitable for both Class I (with ground) and Class II (without ground) applications. The unit features Medical certification (2 x MoPP) and meets Class B conducted and radiated EMI standards. Its versatile design supports end equipment in medical, broadcasting, and industrial systems, offering high efficiency up to 96% and reliable operation in critical environments.
TDK-LAMBDA CUS500M119 Power Supply Specifications:
- Input Voltage range: 85-265 Vac
- Input Frequency: 47-63 Hz
- Efficiency: Up to 96%
- Power Output: 300W convection cooled, 500W with forced air
- Leakage Current: <200 uA at 265Vac 60Hz
- Protection: Overcurrent >105%, Overvoltage, Overtemperature
- Operating Temperature: -20°C to +70°C, derating below 115Vac
- Size: 3 x 5 x 1.46 inches (76.2 x 127 x 37 mm)
- Weight: Open frame 450 g, Enclosed with fan 790 g
- Isolation Voltage: Input to ground 2000 VAC, Output to ground 1500 VAC
- EMI Standards: Meets IEC61000-3-2 Class A, Class B conducted and radiated EMI
- Safety Certifications: IEC/EN/UL62368-1, 60601-1, CE LVD, EMC, RoHS
- Cooling: Convection or forced air (2.7 m/s)
Buy the TDK Lambda CUS500M1 – Reliable Medical and Industrial Power Supply for Critical Applications
Purchase the TDK Lambda CUS500M1 power supply online today to benefit from its compact size, high efficiency up to 96%, and proven safety standards. Ideal for medical, industrial, and broadcasting applications, it offers reliable performance with 300W convection cooling or 500W with forced air. Certified to IEC/EN/UL standards, this unit features overcurrent, overvoltage, and overtemperature protections, ensuring safe operation in critical environments. Easy to install and compatible with series or parallel configurations, it’s your dependable choice for demanding electronic systems.
Order your TDK Lambda CUS500M1 power supply today and ensure dependable, high-efficiency power for medical, industrial, and broadcast systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS500M119?
You can click on the BUY or RFQ button to purchase CUS500M119 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS500M119?
You can download the CUS500M119 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS500M119?
TDK-LAMBDA
