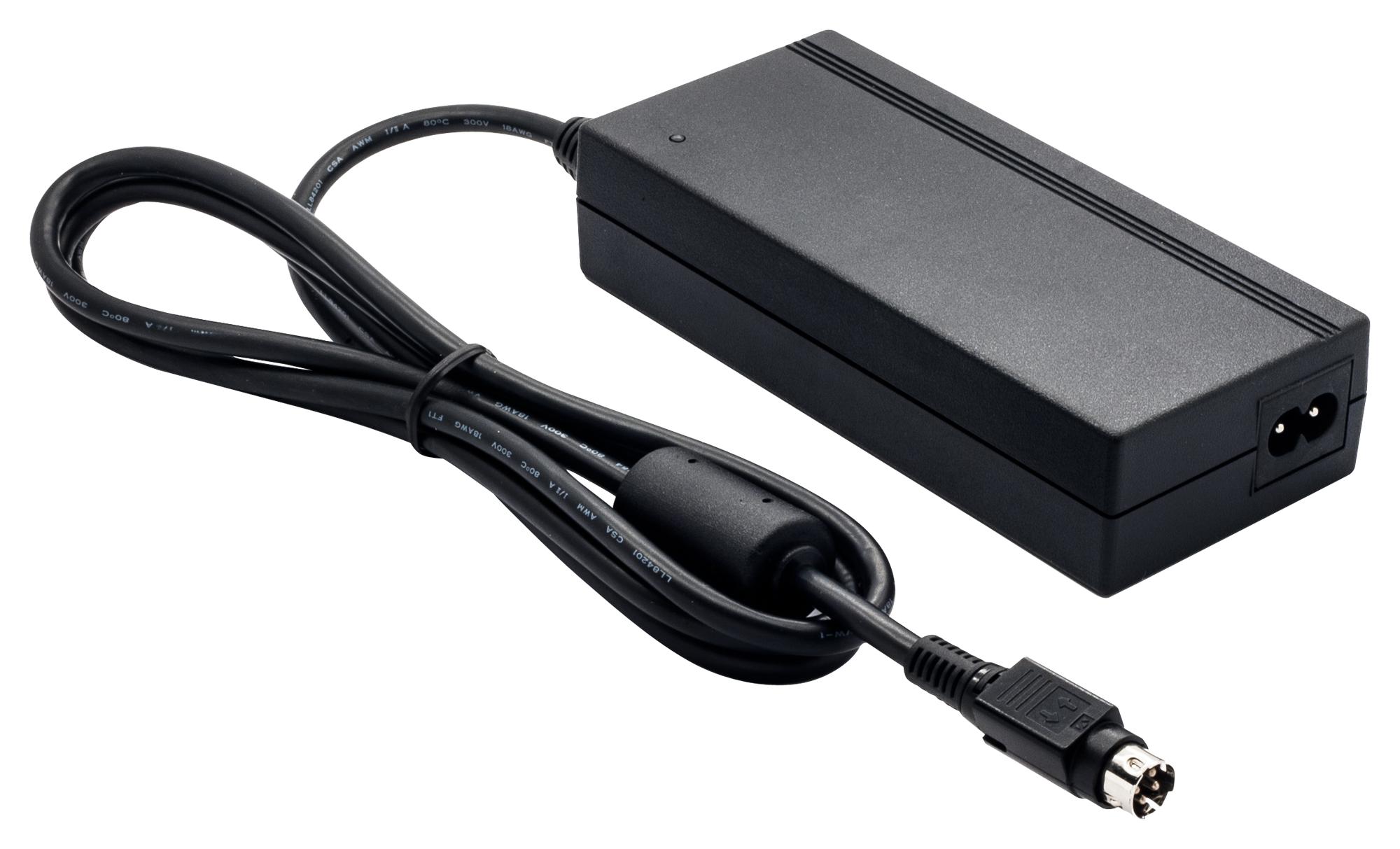

TDK-LAMBDA DTM110PW360C8 Medical Power Supply
The DTM110PW360C8 is a 110W external power supply designed for medical and industrial applications, offering high efficiency, medical and ITE certifications, and a compact, convection-cooled case. It features a wide input voltage range of 90-264VAC, a low no-load power draw of less than 0.15W, and robust safety and electromagnetic compatibility standards including IEC60601-1. Its output voltage is 36V with a maximum current of 3.06A, making it suitable for B & BF rated medical equipment. Operating temperature spans from -20°C to +60°C with linear derating.
TDK-LAMBDA DTM110PW360C8 Medical Power Supply Specifications:
- Input Voltage range: 90 - 264VAC, 47 - 63Hz
- Inrush Current: <120A at 230VAC, 25°C
- Input Current: 2A @90VAC; 1.25A @264VAC
- Touch Current: <100UA @ 264VAC
- Power Factor: >0.9 at 230VAC, meets EN61000-3-2
- Hold Up Time: 10ms at 115VAC
- Total Regulation: 5% (12-19V), +3% (24-48V)
- Ripple & Noise: 150mV pk-pk
- Overload & Short Circuit Protection: 105-150%, hiccup mode
- Efficiency: >89%
- Operating Temperature: -20°C to +60°C, derates linearly
- Storage Temperature: -20°C to +85°C
- Humidity: 0-95% RH, non-condensing
- Cooling: Convection
- Withstand Voltage: 4kVAC input to output
- Safety Certification: IEC60601-1, UL, CSA, CE, EN60950-1
- IP Rating: IP41
- Max Altitude: 5000m
- Weight: 780g
- Size: 63 x 140 x 33mm
- Cable Length: 1000mm
- AC connector: IEC 320-C8
- Output Connector: Kycon KPPX-4P or equivalent
Buy the TDK-Lambda DTM110-C8 – Reliable Power Supply for Medical and Industrial Applications
Secure your medical and industrial devices with the high-efficiency TDK-Lambda Power Supply. Designed to meet IEC60601-1 standards, it offers reliable power with low no-load consumption and a compact, convection-cooled case. Perfect for B & BF rated equipment, it ensures safety, durability, and consistent performance across a wide temperature range. Suitable for professional medical applications, it guarantees optimal operation in demanding environments and is available for purchase online—enhance your system’s reliability today.
Buy TDK-Lambda DTM110PW360C8 now and experience unmatched reliability and high performance for critical medical and industrial devices.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM110PW360C8?
You can click on the BUY or RFQ button to purchase DTM110PW360C8 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM110PW360C8?
You can download the DTM110PW360C8 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM110PW360C8?
TDK-LAMBDA
