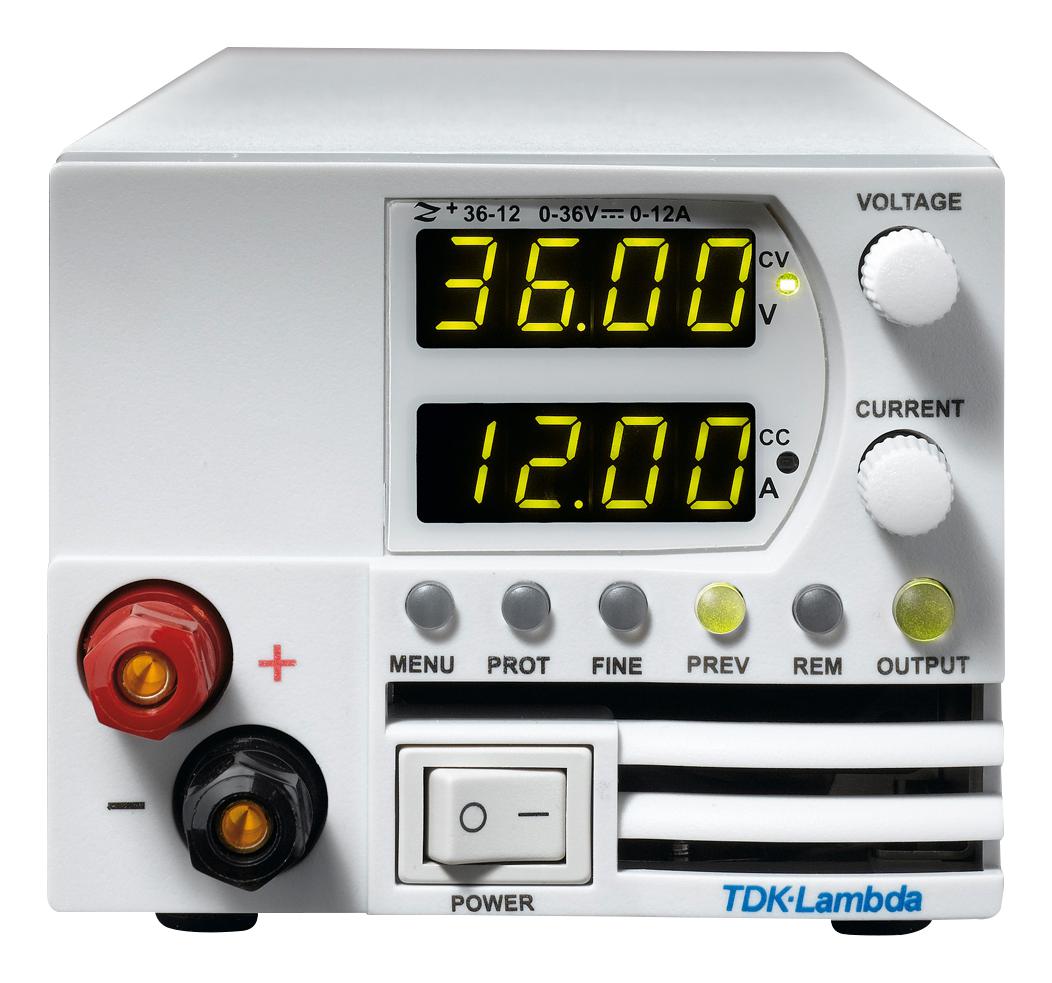

TDK-LAMBDA Z3612LU Programmable Power Supply
The Z36-12-L-U is a versatile programmable power supply featuring output voltage up to 36V and current up to 12A. It includes front panel terminals, supports multiple communication interfaces such as USB, RS-232, and RS-485, and supports optional LAN, GPIB, and analog programming. Designed for bench or rack mount use, it operates in constant current or voltage modes, making it ideal for testing, measurement, and power management applications. Compact and reliable, this unit ensures precise performance and easy integration in industrial environments.
TDK-LAMBDA Z3612LU Programmable Power Supply Specifications:
- Output Voltage: 0 to 36V
- Maximum Output Current: 12A
- Communication Interfaces: USB, RS-232, RS-485, optional LAN, GPIB, Isolated Analog
- Form Factor: 2U high, Compact design
- Mounting Options: Bench or Rack
- Modes: Constant Current and Constant Voltage
- Input Voltage: 85-265VAC, 47-63Hz
- Warm-up Time: 30 minutes
- Efficiency: High efficiency for reliability
- Weight: 2.4kg for Wide Body model
- Safety Certifications: UL61010-1, EN61010-1, IEC61010
- EMI Compliance: EN55022-B, FCC Part 15-B, VCCI-B
- Operating Temperature: Non-condensing, optimized for stability
- Overtemperature Protection: User selectable, latched or non-latching
- Remote Control: On/Off, Sense Compensation, Series Operation up to 2 units
- Vibration Resistance: IEC60068-2-64
- Standards: Designed for testing, measurement, power management
Buy the TDK Lambda ZT Series – Reliable Programmable Power Supplies for Industrial Applications
Purchase the TDK Lambda Z36-12-L-U programmable power supply online today. Featuring 36V and 12A output, multiple communication interfaces including USB, RS-232, RS-485, and optional LAN and GPIB, it offers versatile mounting for bench or rack setups. Its configurable modes—constant current or voltage—ensure precise control for testing, measurement, and power management. Designed for reliability, compact fit, and ease of integration, this unit guarantees high performance and durability for demanding industrial applications.
Get TDK Lambda Z3612LU today—built for precision and long-lasting durability in testing and industrial environments.
Frequently Asked Questions
Where can I buy TDK-LAMBDA Z3612LU?
You can click on the BUY or RFQ button to purchase Z3612LU from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part Z3612LU?
You can download the Z3612LU datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of Z3612LU?
TDK-LAMBDA
