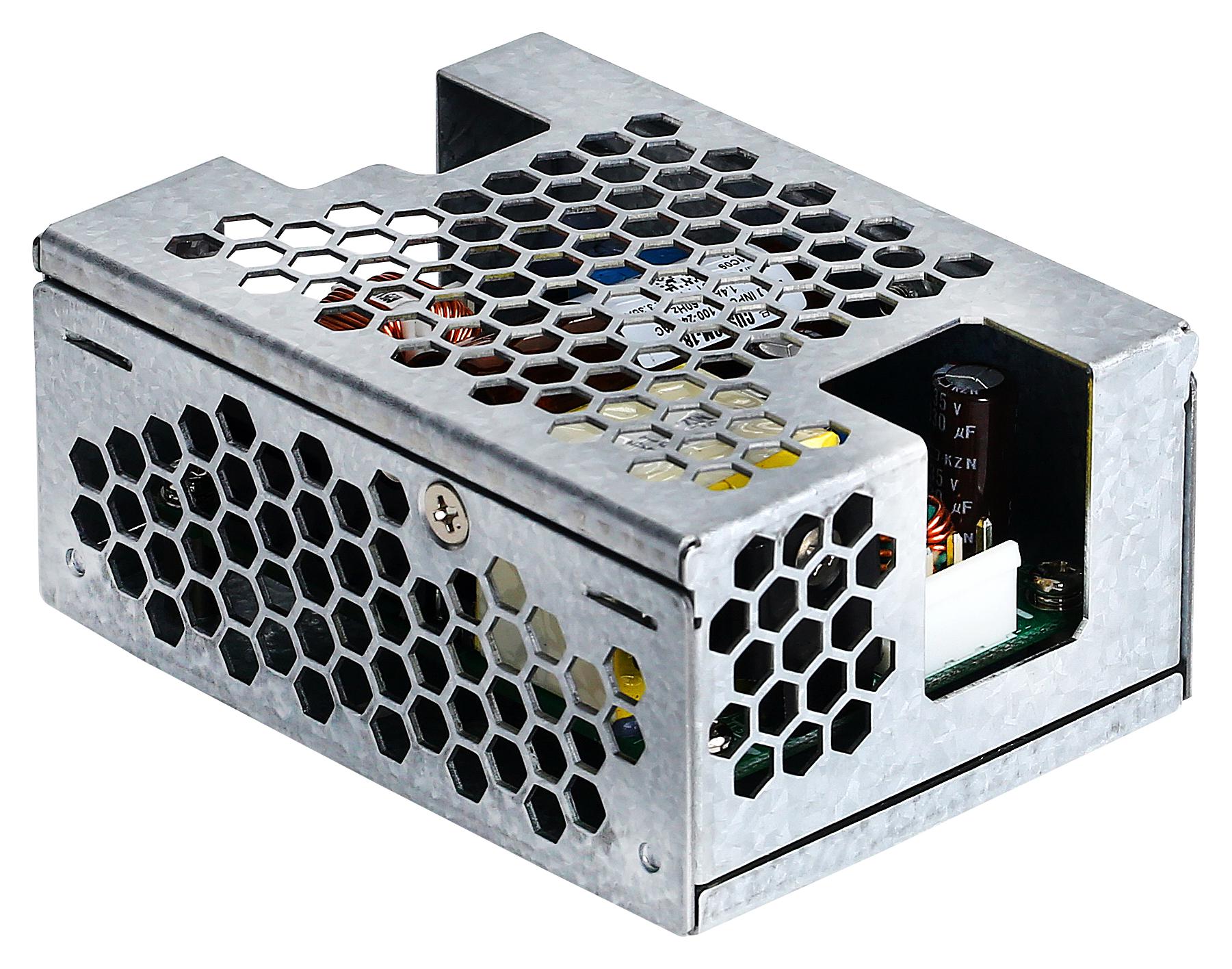

TDK-LAMBDA CUS60M15A Medical Power Supply
The CUS30M and CUS60M are compact AC/DC power supplies with a 2x3 inch footprint, rated at 30W and 60W respectively. They feature medical certification including IEC60601-1 3rd edition, IEC60950-1, and IEC60335-1, and comply with EN60601-1-2:2015 immunity standards. These high-performance units support class I and II installations, with conduction and radiation EMI Class B compliance, requiring no external filters. Their versatile design makes them suitable for medical, industrial, and test applications, offering high efficiency, space-saving size, and multiple connection options for end-users seeking reliable power solutions.
TDK-LAMBDA CUS60M15A Medical Power Supply Specifications:
- Input Voltage range: 85 - 264VAC
- Input Frequency: 47-63Hz
- Input Current: 0.6/0.4A at 110/230VAC for 30W; 1.2/0.8A for 60W units
- Inrush Current: 30A at 115VAC, 60A at 230VAC (cold start)
- Leakage Current: <0.25mA at 265VAC
- Efficiency: See model selector (measured at full load)
- Ripple & Noise: See model selector
- Protection: Overcurrent >105%; Overvoltage >115%/120%
- Environmental: Operating at -20°C to +70°C; Storage: -40°C to +85°C
- Size: 2x3 inches, various enclosure options available
- Certification: IEC60601-1, UL, CSA, CE, EN55011/32, FCC Class B
- Isolation: 2kVAC input to ground, 4kVAC input to output, 1.5kVAC output to ground
- Cooling: Convection
- Altitude: Up to 5000m with derating
Buy the TDK-Lambda Series CUS60M 60W Medical Power Supply: CUS60M15A
Purchase the TDK-Lambda Series CUS60M 60W medical power supply online today to secure a reliable, compact, and highly efficient power solution. Featuring IEC60601-1 certification and Class B EMI compliance, it is suitable for a wide range of medical and industrial applications. With versatile connection options and robust safety features, this power supply ensures safety and performance even in demanding environments. Order now and experience immediate benefits of space-saving design, high performance, and dependable power for your essential equipment.
Order your TDK-Lambda Series CUS60M 60W medical power supply today and ensure reliable, space-efficient power delivery for your critical medical devices.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS60M15A?
You can click on the BUY or RFQ button to purchase CUS60M15A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS60M15A?
You can download the CUS60M15A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS60M15A?
TDK-LAMBDA
