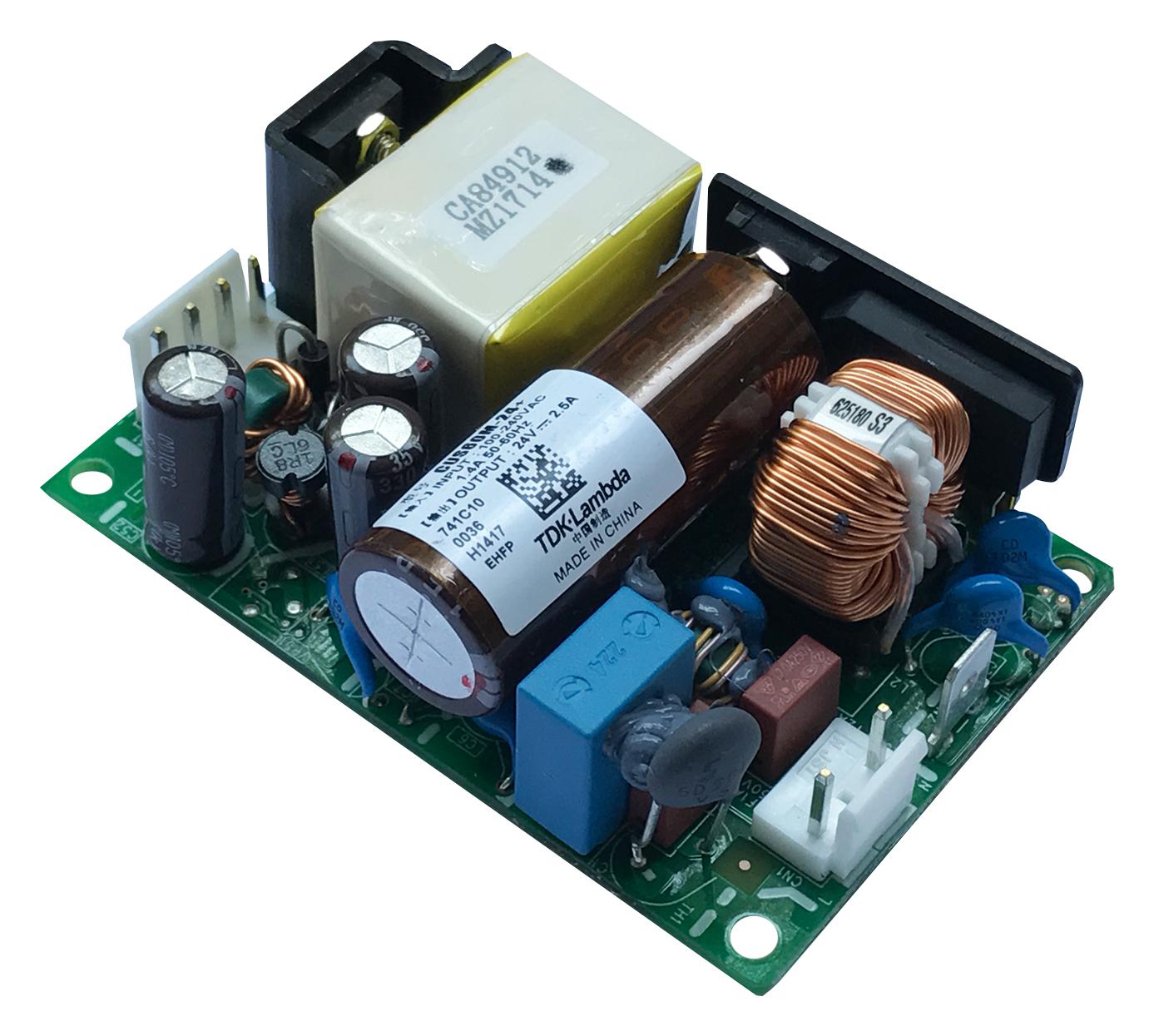

TDK-LAMBDA CUS60M5 Medical Power Supply
This component is suitable for medical applications, offering reliable performance for healthcare equipment and devices.
TDK-LAMBDA CUS60M5 Medical Power Supply Specifications:
- AC Input Voltage: 85-265VAC
- Input Frequency: 47-63Hz
- Inrush Current: 30A at 115VAC, 60A at 230VAC
- Power Factor: Meets EN61000-3-2
- Input Current: 0.6A/0.4A at 115/230VAC
- Off-load Power Draw: <0.3W at 265VAC
- Temperature Coefficient: <0.02%/°C
- Overcurrent Protection: >105% rated current
- Overvoltage Protection: >115% of nominal output
- Hold Up Time: 20/100 ms at 115/230VAC
- Leakage Current: <0.25mA at 265VAC
- Touch Current: 100μA at 265VAC
- Operating Temperature: -20°C to +70°C (-30°C startup)
- Cooling: Convection cooled
- Isolation: 2kVAC input to ground, 4kVAC input to output
- Weight: 62/120 g
- Size: 76.2 x 50.8 x 24.2/26.7 mm
- Certifications: UL, EN, IEC 60601-1, CSA, CE
- Vibration & Shock: Compliant with MIL-STD-810F
- Life & Durability: 3 years warranty
Buy the TDK-Lambda CUS60M – Reliable Medical Power Supply for Industrial Applications
Purchase the TDK-Lambda CUS60M Series medical power supply online today. With high efficiency up to 90%, compact design, and medical certification, it is ideal for healthcare equipment, medical devices, and industrial testing. These convection-cooled units are space-saving, quiet, and suitable for Class I and II installations. Enjoy quick delivery and ensure your medical and industrial applications benefit from reliable, safe power with proven longevity and robust isolation, all at competitive prices with easy online ordering.
Order your TDK-Lambda Series CUS60M medical power supply today and ensure dependable, efficient performance for healthcare and medical devices.
