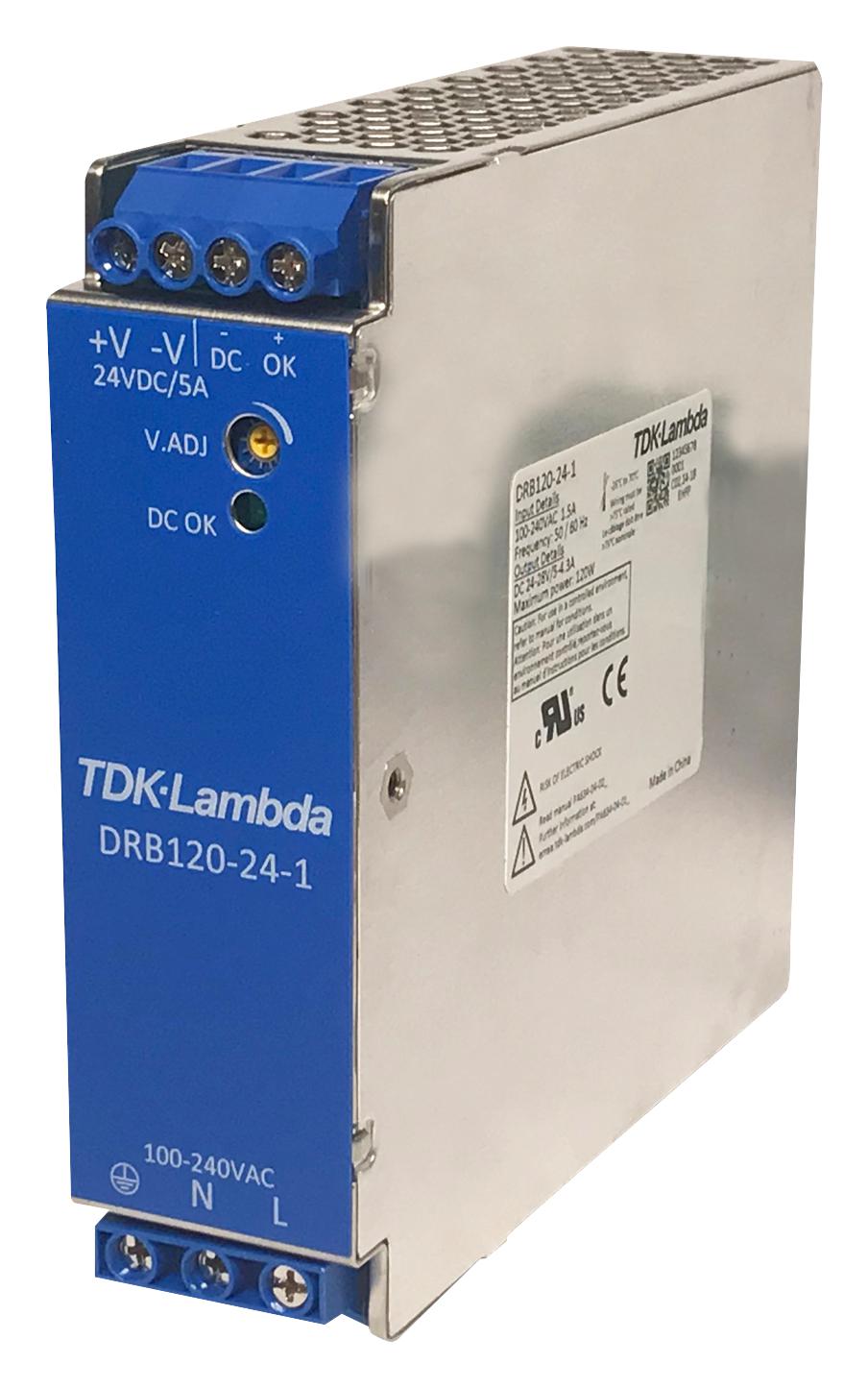

TDK-LAMBDA DRB120241 Industrial DIN Rail Power Supply
This compact 120W power supply is designed for industrial DIN rail applications, offering high efficiency and reliable operation across a wide input voltage range of 85-264VAC. It features excellent electromagnetic compatibility with conducted and radiated EMI standards, a robust case made of metal, and multiple safety certifications including UL and CE marks. Ideal for automation, manufacturing, and control systems, it supports series operation, offers overcurrent, overvoltage, and overtemperature protections, and operates in temperatures from -25°C to 70°C with linear derating. Its compact size and long warranty make it a dependable choice for demanding industrial environments, ensuring continuous power delivery and safety compliance.
TDK-LAMBDA DRB120241 Industrial DIN Rail Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC (withstands 300VAC for 5s), 47-63Hz
- Input Current: <40A at 264VAC, Typical 55A at 230VAC
- Efficiency: >87% at 230VAC, up to 93%
- Output Voltage: 24V (range 24-28V), 48V (range 48-52.8V)
- Output Power: 120W to 480W depending on model
- Maximum Output Current: 6A (DRB120-24-1), 10A (DRB240-24-1), 20A (DRB480-24-1), 100A (DRB480-48-1)
- Protection: Overcurrent, Overvoltage, Overtemperature
- Temperature Range: -25°C to +70°C with linear derating from 55°C to 70°C
- Dimensions: 35 x 124 x 125 mm (DRB120), 41 x 124 x 125 mm (DRB240), 84 x 124 x 125 mm (DRB480)
- Certifications: UL508, IEC/UL/CSA60950-1, CE, EN55011-B, EN55032-B
- Isolation Voltage: 3kVAC input to output, 1.5kVAC input to GND, 500VAC output to GND
- Operating Humidity: 5-95% RH (non-condensing), Storage Humidity: 5-95%
- Cooling: Convection, Case Material: Metal
- Warranty: 3 years
Buy the TDK-Lambda Series DRB120-480 Power Supply: DRB120241
Secure your industrial automation system with the TDK-Lambda DRB120241 power supply. Offering high efficiency, wide input range, and comprehensive protections, it ensures stable power delivery in demanding environments. Its robust metal case, certifications including UL and CE, and a reliable 3-year warranty make it a trusted choice for manufacturing and control systems. Easy to install with convection cooling and series operation support, this power supply enhances operational safety and efficiency, ensuring seamless and reliable power for your critical industrial equipment.
Buy TDK-Lambda DRB120241 now and experience unmatched reliability and performance in industrial power applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DRB120241?
You can click on the BUY or RFQ button to purchase DRB120241 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DRB120241?
You can download the DRB120241 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DRB120241?
TDK-LAMBDA
