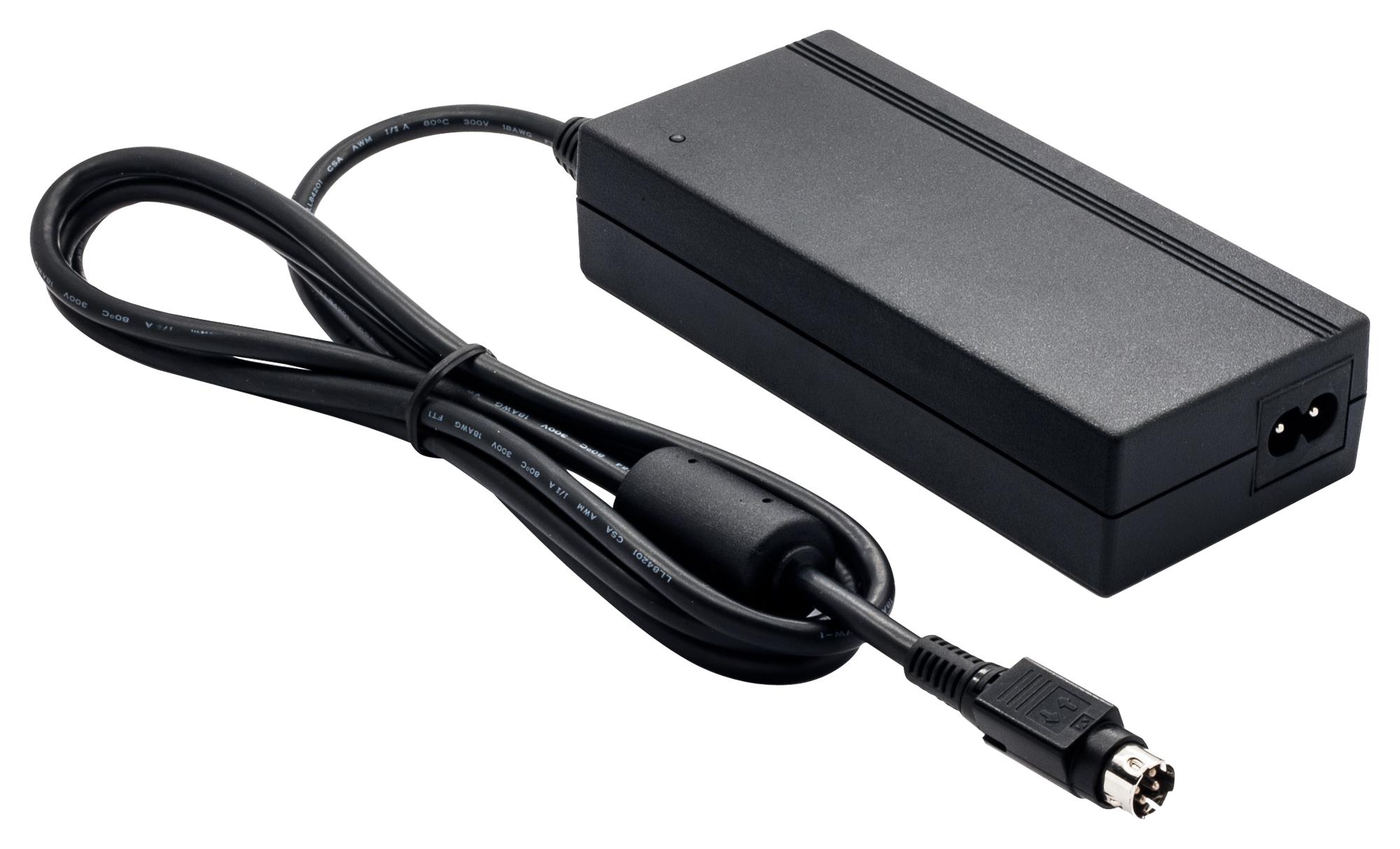

TDK-LAMBDA DTM110PW240C8 Medical Power Supply
The DTM110PW240C8 is a 110W external power supply designed for medical and ITE applications, complying with IEC60601-1 and IEC60601-1-11 standards. It features high efficiency over 89%, low no-load power consumption below 0.15W, and a broad input voltage range of 90-264VAC, supporting medical equipment and sensitive electronic devices. The power supply operates in temperatures from -20°C to +60°C, is convection cooled, and has a compact size of 63 x 140 x 33 mm. It includes protections against overload, short circuits, and overvoltage, with certifications for safety and electromagnetic compatibility.
TDK-LAMBDA DTM110PW240C8 Medical Power Supply Specifications:
- Input Voltage range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <120A at 230VAC
- Input Current: 2A @90VAC; 1.25A @264VAC
- Touch Current: <100UA @ 264VAC
- Power Factor: >0.9 at 230VAC, meets EN61000-3-2
- Total Regulation: 5% (12-19V), +3% (24-48V)
- Ripple & Noise: 150mV (pk-pk)
- Efficiency: >89%
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humdity: 0 - 95%RH
- IP Rating: IP41
- Size: 63 x 140 x 33 mm
- Weight: 780g
- Outputs Available: 12V, 15V, 19V, 24V, 28V, 36V, 48V
- Maximum Power: 110W (varies by model), output current up to 8.75A
- Safety Certifications: IEC/ES/CSA/EN60601-1, CE Mark
- EMC Compliance: IEC60601-1-2 Ed4, EN55011, EN55032, FCC Part 15 and 18 Class B
- Connectors: IEC 320-C8 inlet and Kycon KPPX-4P or equivalent output
Buy the Buy TDK-Lambda DTM110-C8 Part Number 240C8 Online
Get the TDK-Lambda DTM110PW240C8 110W medical-grade power supply online today. With advanced efficiency over 89%, low no-load consumption, and comprehensive safety certifications, it ensures reliable power delivery for critical medical and industrial equipment. Compact, convection-cooled, and with overload and overvoltage protections, this power supply suits demanding environments. Easily connect via IEC inlet with high-quality output connectors. Purchase now to enjoy fast shipping, competitive pricing, and trusted performance for your sensitive electronic devices.
Order your TDK-Lambda Series DTM110PW240C8 today and ensure reliable and high-performance power for your medical or industrial applications.
