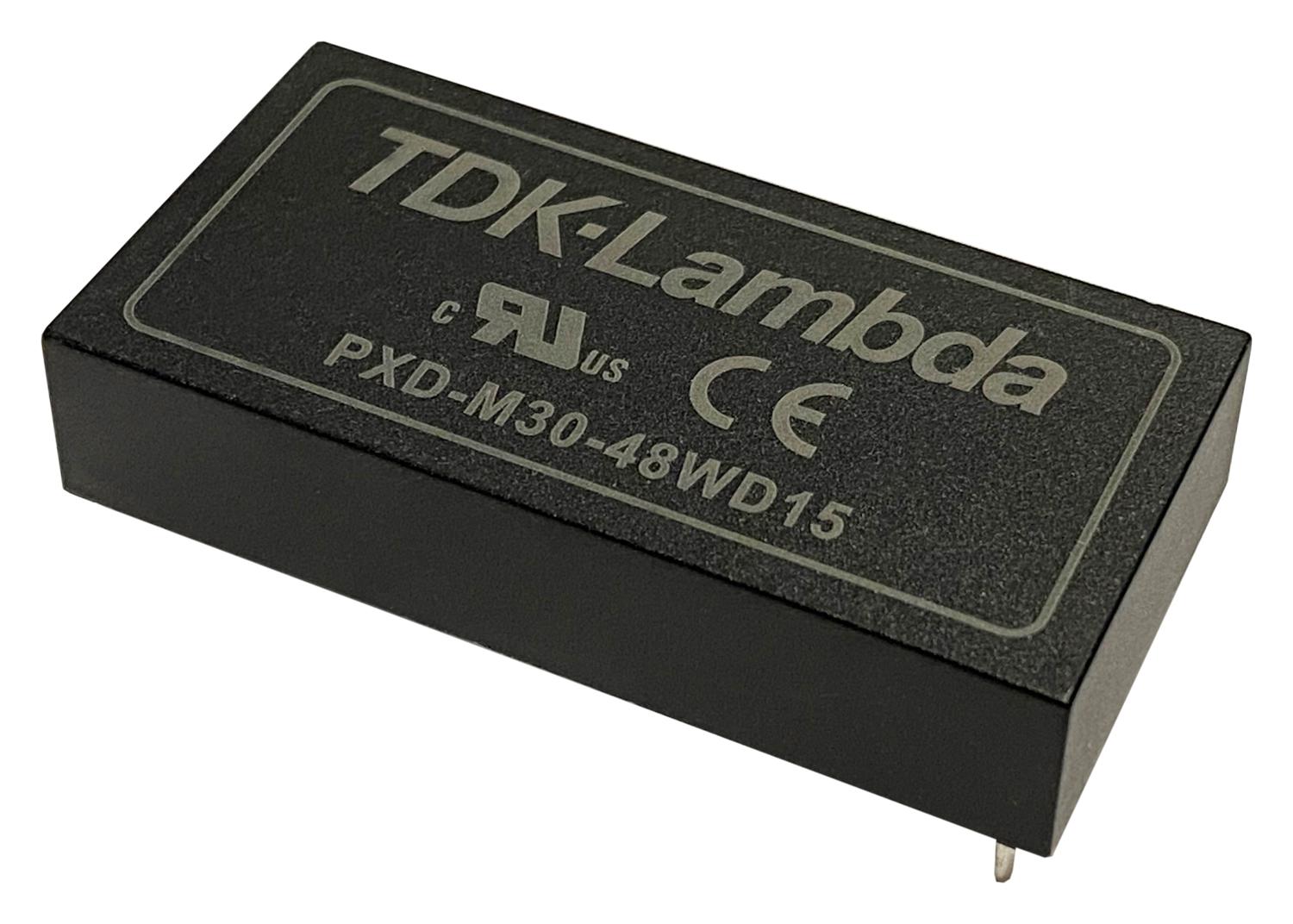

TDK-LAMBDA PXDM3024WS05 Medical Industrial DC-DC Converter
The PXD-M series of medical and industrial DC-DC converters offer a compact 2 x 1-inch package with a 4:1 input range supporting various voltages. They feature 2.5 µA touch current, 5kV input-output isolation, low no-load power consumption, and certified safety standards including IEC 60601-1. Suitable for portable and fixed medical and industrial applications, these modules deliver reliable performance with high efficiency, minimal electromagnetic interference, and rugged design to withstand harsh environments. They are ideal for space-constrained projects requiring high isolation and efficiency.
TDK-LAMBDA PXDM3024WS05 Medical Industrial DC-DC Converter Specifications:
- Input Voltage Range: 9-36V or 18-75V depending on model
- Input Surge Voltage: 50V or 100V (3s max)
- Input Shutdown Voltage: 7.8-8.6V or 15.8-17.4V
- Start-up Time: 60 ms max
- Touch Current: 2.5 µA maximum
- Efficiency: Up to 90.5%
- Isolation: 5kV input-output, 2x MOPP
- Power Consumption (No Load): 0.04-0.09W depending on model
- Operating Temperature: -40°C to +105°C
- Dimensions: 50.8 x 25.4 x 10.2 mm (2 x 1 x 0.4 inches)
- Weight: Approximately 32 g
- Certifications: IEC 60601-1, IEC 62368-1, UL, CSA, CE, RoHS
- Switching Frequency: 225–285 kHz
- Remote On/Off: Positive or Negative Logic options
- Case Material: Non-conductive silicone potting
- Vibration & Shock Resistance: MIL-STD-810F
Buy the TDK Series PXD-M 30W Medical and Industrial DC-DC Converters: PXDM3024WS05
Discover the reliable TDK Series PXD-M 30W medical and industrial DC-DC converters that provide high efficiency, compact size, and high isolation. Engineered for portable and fixed applications, these modules support wide input ranges of 9-36V or 18-75V with low power consumption, meeting strict safety and EMI standards. Perfect for medical, test, broadcast, and industrial equipment, they feature robust construction, UL and IEC certifications, and remote On/Off options. Purchase online today to elevate your project’s power stability and compliance with international safety standards.
Order your TDK Series PXD-M 30W medical and industrial DC-DC converter today and ensure reliable, efficient power in demanding environments.
Frequently Asked Questions
Where can I buy TDK-LAMBDA PXDM3024WS05?
You can click on the BUY or RFQ button to purchase PXDM3024WS05 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part PXDM3024WS05?
You can download the PXDM3024WS05 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of PXDM3024WS05?
TDK-LAMBDA
