TDK-LAMBDA CSW6548A Industrial Power Supply
The CSW65-48/A from TDK-Lambda is an enclosed U-channel AC to DC power supply designed for industrial applications. Operating within an input voltage range of 90VAC to 305VAC at 47-63Hz, it delivers 48V output with a maximum current of 1.36A, providing up to 65W of power. The unit features low ripple and noise at 280mV, with an average efficiency of 89%, and complies with safety (UL, CSA, IEC, EN60950-1) and EMI standards (EN55032-B, FCC class B). It offers high isolation resistance (>20MΩ) and withstand voltages (1.5KVAC input to ground). Its compact size is 63.5mm x 120.7mm x 38.1mm, weighing approximately 270 grams, making it ideal for reliable industrial use.
TDK-LAMBDA CSW6548A Industrial Power Supply Specifications:
- Input Voltage range: 90 - 305VAC at 47-63Hz
- Output Voltage: 48V with ripple & noise of 280mV
- Maximum Power: 65W, Output Current: 1.36A
- Efficiency: 89% average, low off-load power <150mW
- Dimensions: 63.5mm x 120.7mm x 38.1mm
- Weight: approximately 270 grams
- Isolation Resistance: >20MΩ at 25°C, 70% RH
- Withstand Voltage: 1.5KVAC input to ground, 3KVAC input to output, 500VDC output to ground
- Operating Temperature: -10°C to +70°C, derates above 50°C
- Safety Certifications: UL, CSA, IEC, EN60950-1
- EMC Standards: EN55032-B, FCC Class B
- Vibration & Shock: compliant with industry standards
- Cooling: convection cooling

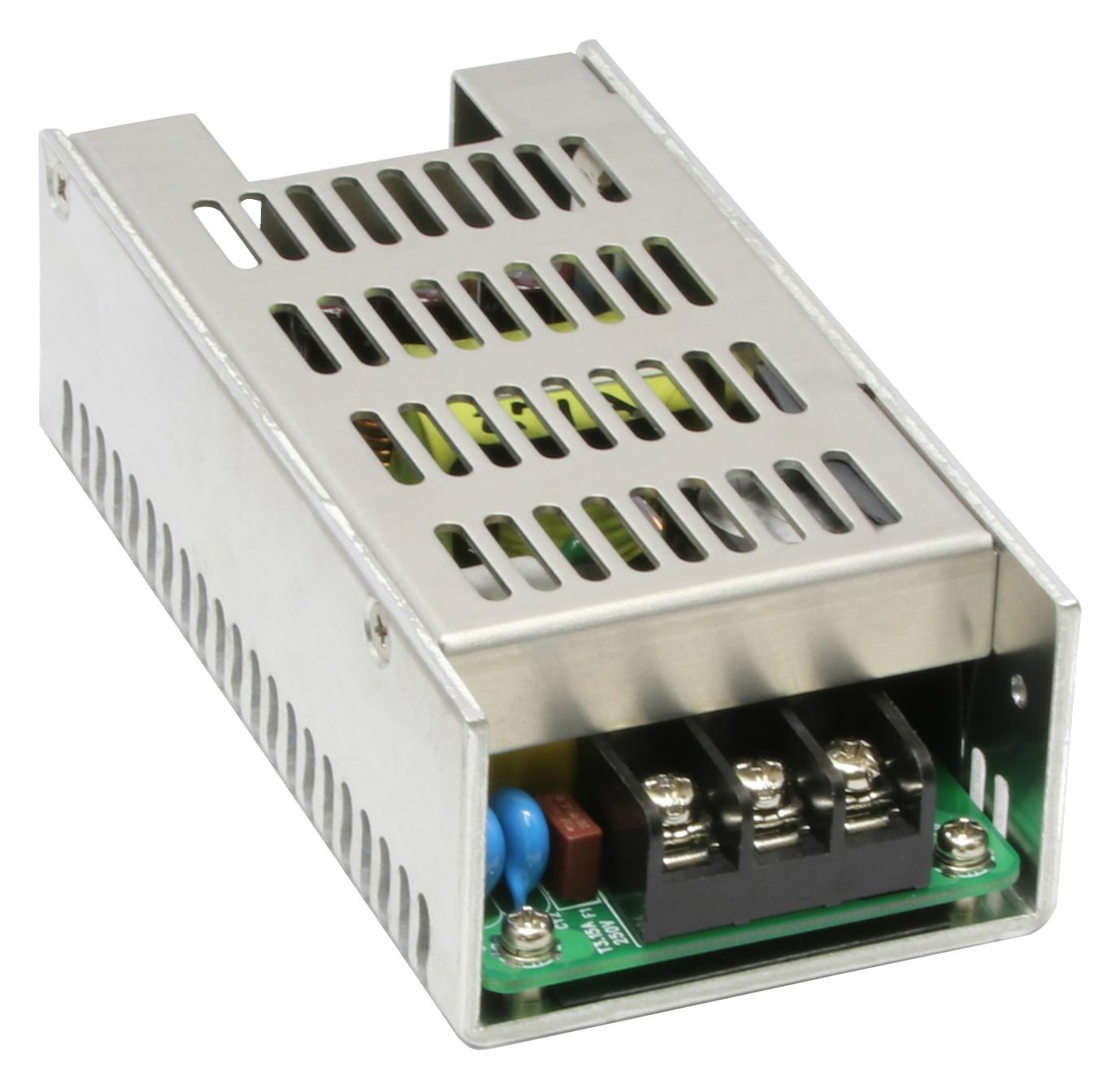

Buy the Buy TDK-Lambda CSW65 Series Power Supply Part Number CSW6548A Online
Secure your industrial projects with the TDK-Lambda CSW65-48/A power supply, offering 48V output, 65W power, high efficiency of 89%, and robust safety compliance. Designed for durability, it features low ripple noise, high isolation resistance, compact dimensions, and extensive safety certifications. Perfect for industrial automation, control systems, and equipment requiring reliable power conversion. Purchase online now to benefit from fast delivery, competitive pricing, and certified quality that ensures your equipment operates smoothly and efficiently in demanding environments.
Order your TDK-Lambda SeriesCSW65-48/A industrial power supply today and ensure reliable, efficient power delivery for your industrial applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CSW6548A?
You can click on the BUY or RFQ button to purchase CSW6548A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CSW6548A?
You can download the CSW6548A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CSW6548A?
TDK-LAMBDA
