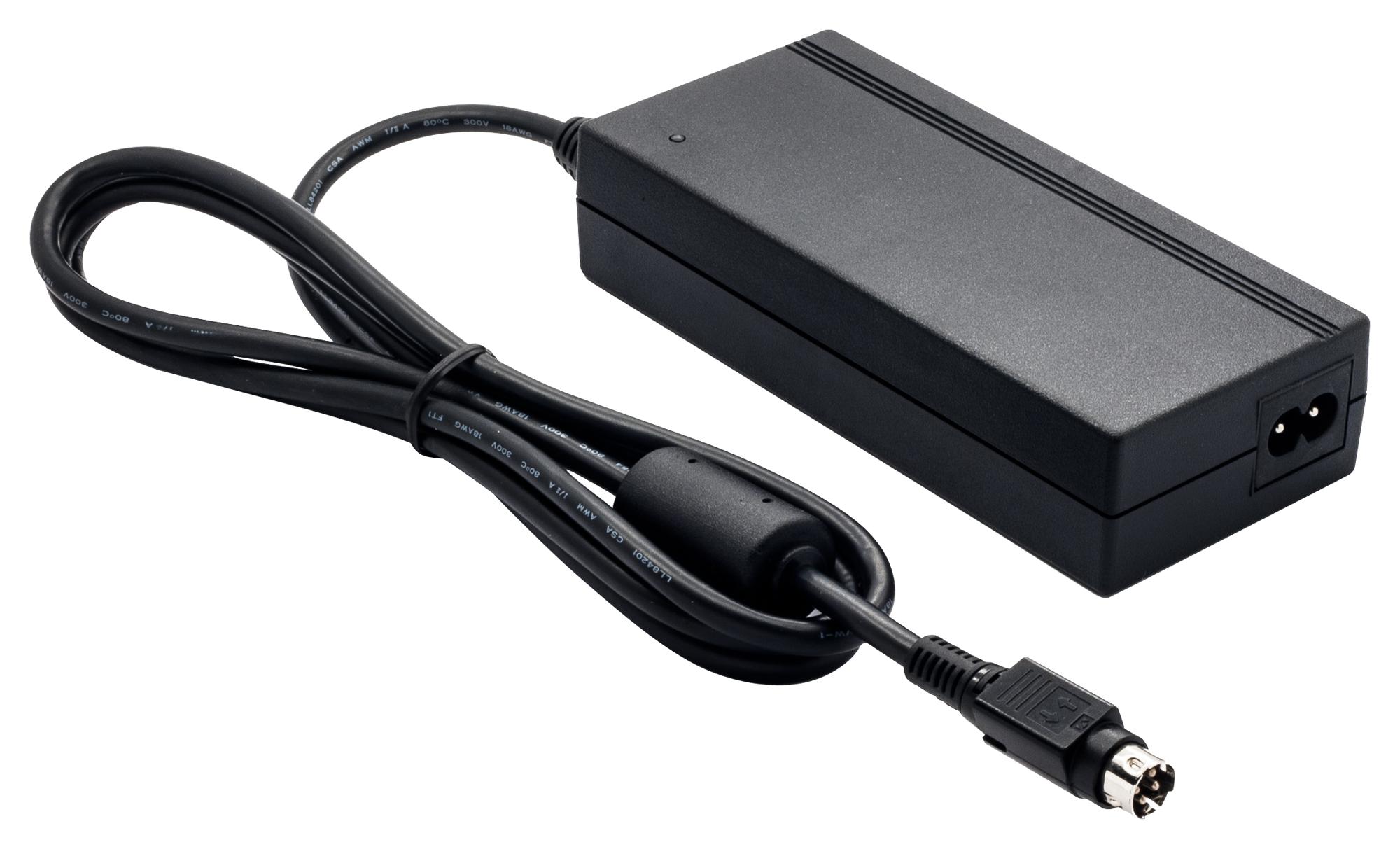

TDK-LAMBDA DTM110PW190C8 medical power supply
The DTM110PW190C8 is a 110W external power supply designed for medical and ITE applications, meeting stringent safety and efficiency standards such as IEC60601-1, DoE Level VI, and EU Tier 2. It features a 19V output with a maximum current of 5.79A, Load Regulation of ±3%, ripple of 150mV, and operates efficiently (>89%) in a temperature range from -20°C to +60°C. Its compact size, lightweight (780g), and IP41 rating make it ideal for medical equipment, broadcast, and testing environments. The power supply includes protection against overload, short circuits, and overvoltage, ensuring safety and reliability.
TDK-LAMBDA DTM110PW190C8 medical power supply Specifications:
- Output Voltage: 19V
- Maximum Output Current: 5.79A
- Power: 110W
- Input Voltage Range: 90-264VAC
- Frequency: 47-63Hz
- Inrush Current: <120A at 230VAC
- Input Current: 2A @90VAC, 1.25A @264VAC
- Power Factor: >0.9 at 230VAC full load
- Efficiency: >89%
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0-95%RH, non-condensing
- Dimensions: 63x140x33mm
- Weight: 780g
- Protection: Overload, short circuit, overvoltage
- Safety Certifications: IEC60601-1, IEC60601-1-11, UL, CSA, CE
- IP Rating: IP41
- Cooling: Convection
- Withstand Voltage: 4k VAC input to output
Buy the Buy TDK-Lambda DTM110PW190C8 Power Supply Part Number DTM110PW190C8 Online
Purchase the TDK-Lambda DTM110PW190C8 today for a reliable 110W power source engineered for medical and industrial applications. Featuring a compact design, high efficiency over 89%, and certified safety standards, this power supply ensures safe operation in sensitive environments. Its 19V output easily integrates into medical devices, broadcast, and testing equipment. With overload, short circuit, and overvoltage protections, it guarantees durability and peace of mind. Enjoy fast, secure online ordering and enhance your equipment's performance with this high-quality, compliant power solution.
Buy TDK-Lambda DTM110PW190C8 now and experience unmatched reliability and performance with its medical-grade safety and high efficiency.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM110PW190C8?
You can click on the BUY or RFQ button to purchase DTM110PW190C8 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM110PW190C8?
You can download the DTM110PW190C8 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM110PW190C8?
TDK-LAMBDA
