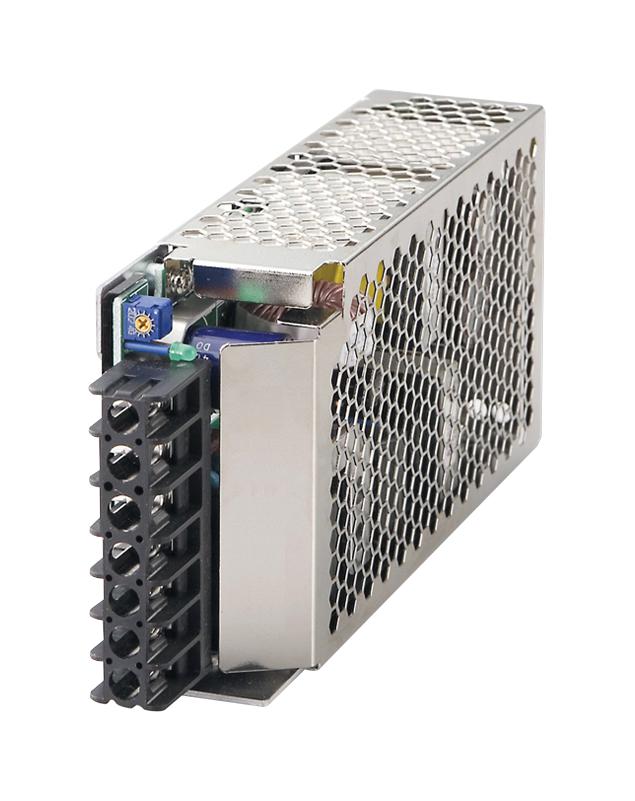

TDK-LAMBDA HWS150A15A Industrial Power Supply
This high-efficiency industrial power supply offers reliable power management for automation, testing, communications, and control systems. With a wide input range of 85-265VAC and 91% efficiency, it features overload and overvoltage protection, remote sensing, and a compact design suitable for various industrial environments. The unit withstands 2kVAC input to ground, has a life expectancy over 2.6 million hours at 25°C, and meets safety standards including UL, CSA, EN, and CE certifications. The fanless convection cooling ensures silent operation, while up to 150W power output facilitates demanding applications with durability and consistent performance.
TDK-LAMBDA HWS150A15A Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 265VAC (47 - 63Hz)
- Input Current (Typ): 0.4/0.2A, 0.65/0.4A, 0.65/0.35A, 1.3/0.65A, 1.9/0.95A
- Inrush Current: 14/28A
- Overcurrent Protection: >105%
- Overvoltage Protection: Yes
- Hold Up Time (Typ): 20ms
- Leakage Current (Max): <0.5mA
- Remote Sense: Yes
- Operating Temperature: -10°C to +70°C (derate from 50°C to 70°C)
- Storage Temperature: -30°C to +85°C
- Humidity (Non-condensing): 30-90%RH operating, 10-95%RH non-operating
- Cooling: Convection
- Isolation Voltage: 2kVAC input to ground, 3kVAC input to output, 500VDC output to ground
- Vibration & Shock Resistance: Tested for 10-55Hz and 19.6m/s² acceleration
- Certifications: UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE
- Weight: 520g - 4700g depending on model
- Dimensions: Varies from 31.5 x 82 x 80mm to 42 x 82 x 160mm
- MTBF: Over 2.6 million hours at 25°C
- Safety & EMI: Complies with international safety and EMI standards
Buy the TDK Series HWS150A Power Supply: HWS150A-150A
Purchase the TDK Series HWS150A power supply online now and ensure reliable power delivery for your automation, test, and communication systems. With high efficiency up to 91%, wide input voltage, and comprehensive protections, this product guarantees durability and stable performance in demanding industrial environments. Its compact design and convection cooling make installation effortless, while compliance with global safety standards like UL, CSA, and CE ensures maximum safety. Order today to enhance your system’s reliability and operational efficiency with this trusted industrial power solution.
Order your TDK Series HWS150A high-efficiency power supply today and give your industrial projects the dependable, stable performance they deserve.
Frequently Asked Questions
Where can I buy TDK-LAMBDA HWS150A15A?
You can click on the BUY or RFQ button to purchase HWS150A15A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part HWS150A15A?
You can download the HWS150A15A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of HWS150A15A?
TDK-LAMBDA
