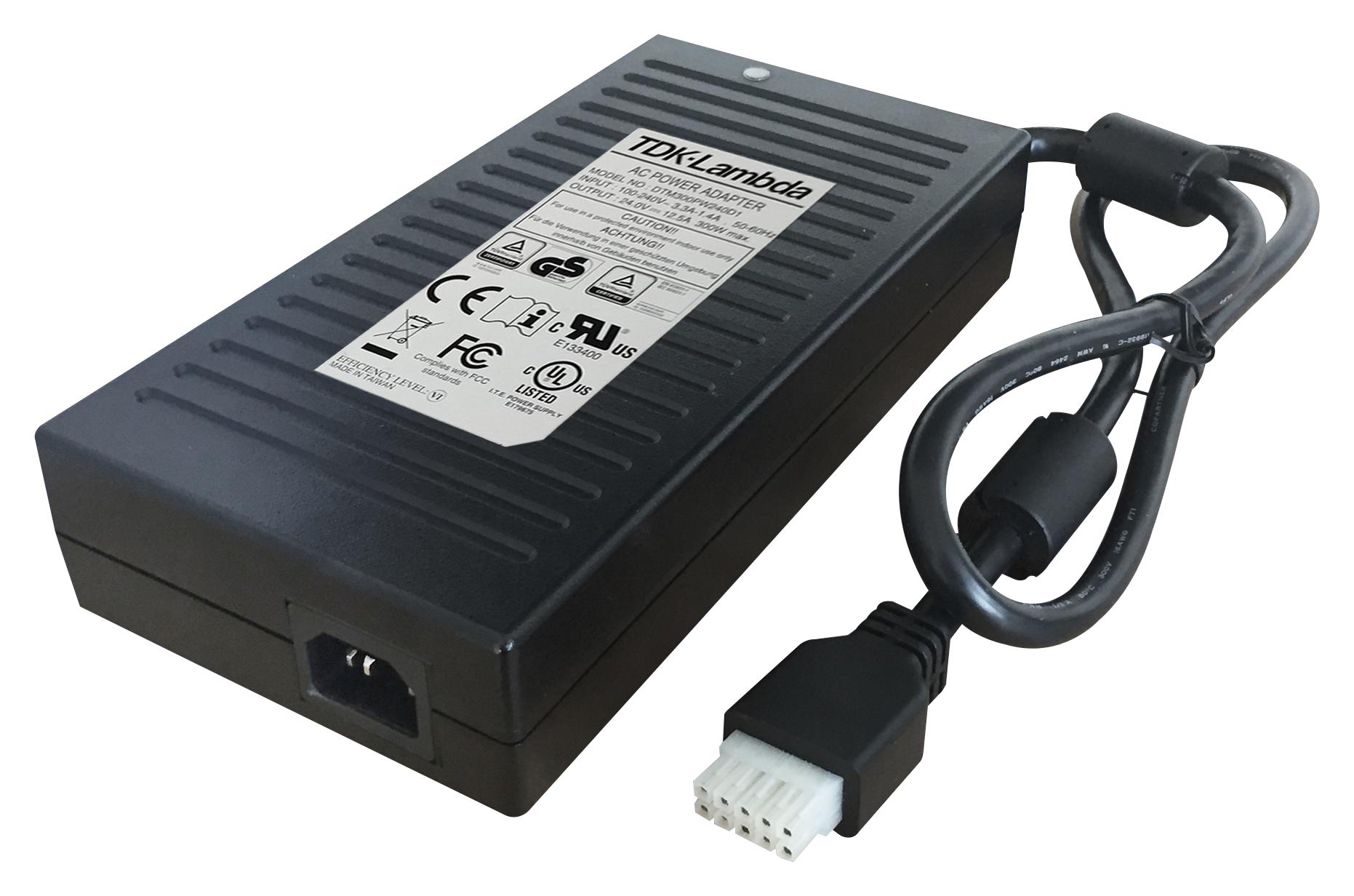

TDK-LAMBDA DTM300PW480D1 Medical Power Supply
The DTM300-D Series is a high-efficiency, medical-grade power supply with an output power of 300W. Designed to meet international safety standards, it features a wide input voltage range of 90-264VAC, low no-load power consumption (<0.5W), and excellent efficiency (>88%). Its compact size (122 x 78 x 44 mm) and convection cooling make it suitable for medical and industrial applications. The power supply provides multiple output voltages, including 12V, 19V, 24V, 28V, 48V, and 54V, with high regulation and low ripple. It offers robust protection features like overload, overvoltage, and short circuit protection, ensuring reliable operation under various conditions.
TDK-LAMBDA DTM300PW480D1 Medical Power Supply Specifications:
- Input Voltage range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <70A at 230VAC, 25°C ambient
- Input Current: 3A at 115VAC
- No Load Power Consumption: <0.5W
- Efficiency: >88%
- Output Voltages & Currents: 12V/25A, 19V/15.794A, 24V/12.5A, 28V/10.714A, 48V/6.254A, 54V/5.56A
- Ripple & Noise: 240-300mV
- Total Regulation: ±5% (-20 to -30°C 41%)
- Protection: Overload (105-150%, hiccup mode), Overvoltage (auto-recovery), Short Circuit
- Operating Temperature: -30°C to +60°C derating from 40°C
- Storage Temperature: -30°C to +85°C
- Humidity: 0-95%RH non-condensing
- Safety Certifications: IEC/UL/CSA/EN60601-1, EN55011, EN55024, FCC
- Dimensions: 122 x 78 x 44 mm
- Weight: 170g
- Cooling: Convection
- Withstand Voltage: Input to Ground 1.5kVAC, Input to Output 4kVAC
- Connector Types: IEC 320-C14/C18 (input), 10-pin mini fit Jr power output
Buy the Buy TDK-Lambda DTM300PW-480D1 Power Supply Part Number DTM300PW-480D1 Online
Purchase the TDK-Lambda DTM300PW-480D1 power supply online today for reliable 300W medical-grade performance. This versatile power supply features a wide input voltage range, high efficiency over 88%, low no-load power consumption, and robust protection features, making it perfect for medical, industrial, and automation applications. Compact and lightweight at 170 grams with convection cooling, it ensures consistent operation under demanding conditions. Get fast delivery and excellent support by ordering this essential power supply today for your critical projects and healthcare devices.
Order your TDK-Lambda Series DTM300PW-480D1 power supply today and ensure reliable, medical-grade performance for your critical applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM300PW480D1?
You can click on the BUY or RFQ button to purchase DTM300PW480D1 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM300PW480D1?
You can download the DTM300PW480D1 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM300PW480D1?
TDK-LAMBDA
