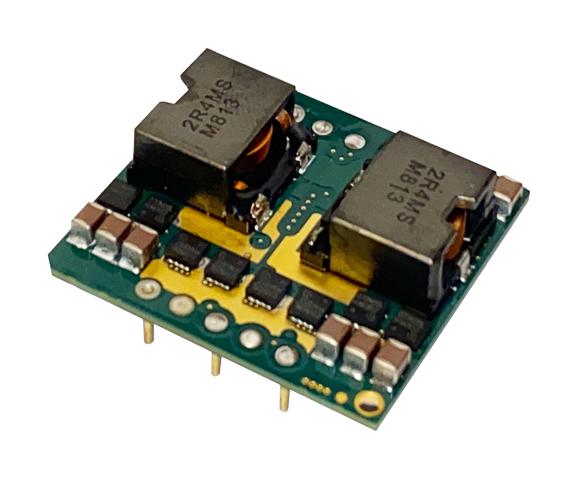

TDK-LAMBDA I7A24045A033V000R High Power DC-DC Converter
The i7A series of high-power, non-isolated DC-DC step-down converters deliver up to 750W with efficiency up to 98.5%. Featuring wide input and output adjustment ranges, low ripple, excellent dynamic response, and multiple cooling options, it’s ideal for high-current applications in industrial and automation systems. Available in various configurations like open frame, baseplate, or heatsink models, these converters support multiple system voltages from 18V to 60V, making them suitable for diverse power supply solutions. They comply with IEC/EN/UL/CSA 62368-1 safety standards and offer durable, reliable performance.
TDK-LAMBDA I7A24045A033V000R High Power DC-DC Converter Specifications:
- Input Voltage Range: 18-60V (turn on at 16.5V, typical 18-32V or 18-60V options)
- Maximum Input Current: 50A
- Efficiency: 93-98.5%
- Output Voltage Tolerance: ±3%
- Output Current: 0-45A
- Ripple & Noise: 25mV
- Switching Frequency: 660kHz
- Line Regulation: 0.2% maximum
- Load Regulation: 0.4% maximum
- External Load Capacitance: 220-10000µF or 330-10000µF (depending on model)
- Overcurrent Protection: 45A to 63A (typical)
- Overtemperature Protection: Yes
- Remote Sense: (+) Sense, up to 5% voltage compensation
- Remote On/Off: Negative logic
- Operating Temperature Range: -40°C to +125°C (derating applies at high temps)
- Cooling Methods: Convection, conduction (baseplate), or forced air
- Device Size: Open frame (34x36.8x11.5mm), with baseplate (34x36.8x12.7mm), with heatsink (34x36.8x24.9mm)
- Weight: 25g (open frame), 50g (baseplate), 70g (heatsink)
- Standards: IEC/EN/UL/CSA 62368-1, CE
- MTBF: Over 5 million hours at 40°C
Buy the TDK Lambda 7A24045A033V – Reliable DC-DC Converter for Industrial Applications
Get your TDK Lambda high-power, efficient DC-DC converter today through our online store. Designed for industrial and automation applications, it offers up to 750W power, wide input voltage ranges from 18V to 60V, and multiple cooling options for versatile setup. With excellent dynamic response, low ripple, and robust safety features like overtemperature protection, this converter ensures reliable performance even under demanding conditions. Easy to install, cost-effective, and compliant with international safety standards, it is the ideal solution for high-current power distribution needs.
Order your TDK Lambda Series 7A24045A033V high-current power converter today and ensure your projects benefit from reliable, efficient power supply solutions.
Frequently Asked Questions
Where can I buy TDK-LAMBDA I7A24045A033V000R?
You can click on the BUY or RFQ button to purchase I7A24045A033V000R from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part I7A24045A033V000R?
You can download the I7A24045A033V000R datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of I7A24045A033V000R?
TDK-LAMBDA
