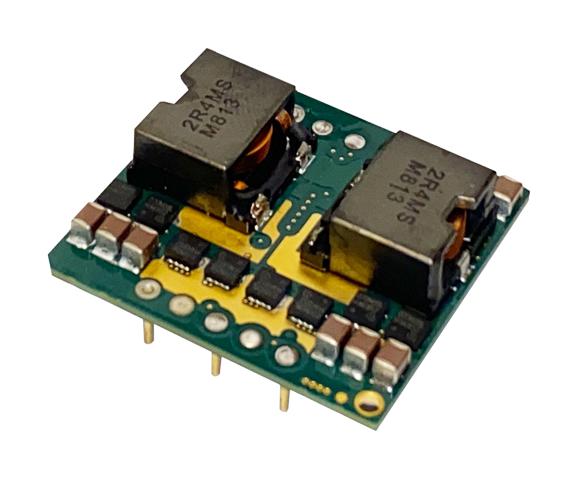

TDK-LAMBDA I7A24045A033V001R High Power DC-DC Converter
The i7A series of high-power, non-isolated DC-DC step-down converters deliver up to 750W in a compact footprint, supporting output voltages from 3.3V to 18V or 24V. It features efficiencies up to 98.5%, wide input ranges from 18V to 60V, and excellent dynamic response with low ripple noise. Suitable for applications requiring multiple high current rails, this series offers flexible configurations with convection, conduction, or forced air cooling, making it ideal for industrial, robotics, and broadcast systems demanding reliable power conversion.
TDK-LAMBDA I7A24045A033V001R High Power DC-DC Converter Specifications:
- Input Voltage Range: 18-60V, Turn on at 16.5V, Transient Vde 65V max
- Output Voltage: 3.3-18V or 3.3-24V adjustable, Regulation ±0.2%
- Output Current: 0-33A or 0-45A depending on model
- Efficiency: 91-98.5%, typical 93-98.5%
- Switching Frequency: 660 kHz
- Ripple & Noise: 25 mV
- Overcurrent Protection: 45-63A
- Environmental Operating Temp: -40°C to 125°C (Derating applies)
- Cooling Options: Convection, conduction, forced air
- Dimensions: 34 x 36.8 x 11.5 mm (Open Frame) or larger for baseplate/ heatsink
- Weight: Between 25g and 70g depending on configuration
- Safety Certifications: IEC/EN/UL/CSA 62368-1, CE
- Remote Sense: (+) Sense, up to 5% compensation
- Remote On/Off: Negative logic control
- Dynamic Response: 420 mV / 70 ms at 12V load
Buy the Buy TDK-Lambda i7A Series Part Number A24045A033V-001-R Online
Order the TDK-Lambda high power DC-DC converter online today to experience unmatched efficiency up to 98.5%, flexible input ranges, and robust performance for industrial, robotics, or broadcast systems. This versatile power module supports output currents up to 45A, features advanced remote sensing and ON/OFF control, and includes multiple cooling options such as convection or conduction for optimal thermal management. Trusted for reliable operation and compact design, this product ensures your application maintains stable, efficient power conversion for extended operational life and reduced system size.
Get TDK-Lambda i7A24045A033V-001-R today—designed for high power efficiency, reliable operation, and versatile cooling options for demanding applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA I7A24045A033V001R?
You can click on the BUY or RFQ button to purchase I7A24045A033V001R from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part I7A24045A033V001R?
You can download the I7A24045A033V001R datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of I7A24045A033V001R?
TDK-LAMBDA
