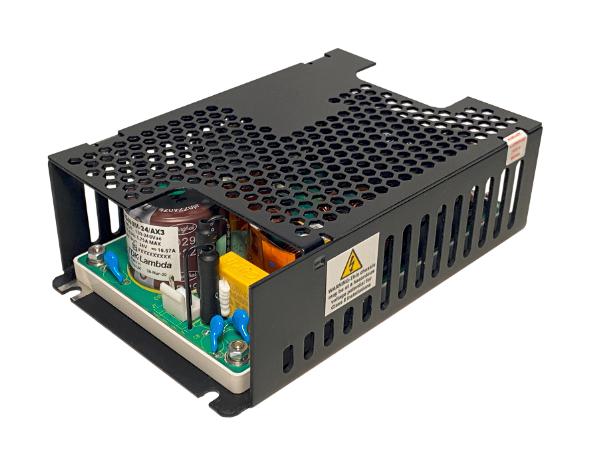

TDK-LAMBDA CUS400M12A Power Supply
The CUS400M series are compact, versatile 400W AC-DC power supplies designed in a 3x5 inch footprint. Suitable for medical and industrial equipment, they offer forced air, convection, or conduction cooling options, with peak power capabilities for extended periods. Certified for medical use with Class I & II applications, they meet stringent EMI standards and feature various case and signal options. Their high efficiency, low no-load power consumption, and multiple protection features make them ideal for medical, ITE, broadcast, and industrial applications.
TDK-LAMBDA CUS400M12A Power Supply Specifications:
- Input Voltage range: 85 - 264Vac
- Input Frequency: 47-63Hz
- Input Current: <5.0A at 100Vac
- Efficiency: Up to 94%
- Leakage Current: <250uA
- Hold Up Time: >16ms at 115Vac (400W load)
- Output Voltage Options: 12V, 15V, 24V, 36V, 48V (varies by model)
- Load Regulation: 1.0% (0 - 100% load)
- Line Regulation: 0.5%
- Ripple & Noise: <1%
- Protection: Overcurrent (101-170%), Overvoltage, Overtemperature
- Remote Sense: 0.5V compensation
- Output Power: 250W convection/conduction, 400W peak, 400W forced air
- Operating Temp: -20°C to +70°C, derates above 50°C
- Weight: 440g to 605g depending on configuration
- Size: 128 x 77.5 x 39.5mm (open frame)
- Certifications: IEC/EN/UL/CSA 62368-1, 60950-1, IEC/EN 60601-1, CE, UKCA
Buy the Buy TDK Lambda Power Supply Part Number CUS400M12A Online
Enhance your equipment with the TDK Lambda CUS400M power supply, a reliable and efficient 400W unit suitable for medical, industrial, and test applications. Compact and versatile, it offers optional cooling methods including forced air, convection, and conduction, with high efficiency up to 94%. Certified for medical and industrial standards, it includes multiple protections like overcurrent, overvoltage, and overtemperature safeguards. Quick online purchase ensures rapid delivery, enabling your systems to operate safely and efficiently while complying with global standards.
Buy TDK Lambda CUS400M12A now and experience unmatched reliability and performance in medical and industrial applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS400M12A?
You can click on the BUY or RFQ button to purchase CUS400M12A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS400M12A?
You can download the CUS400M12A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS400M12A?
TDK-LAMBDA
