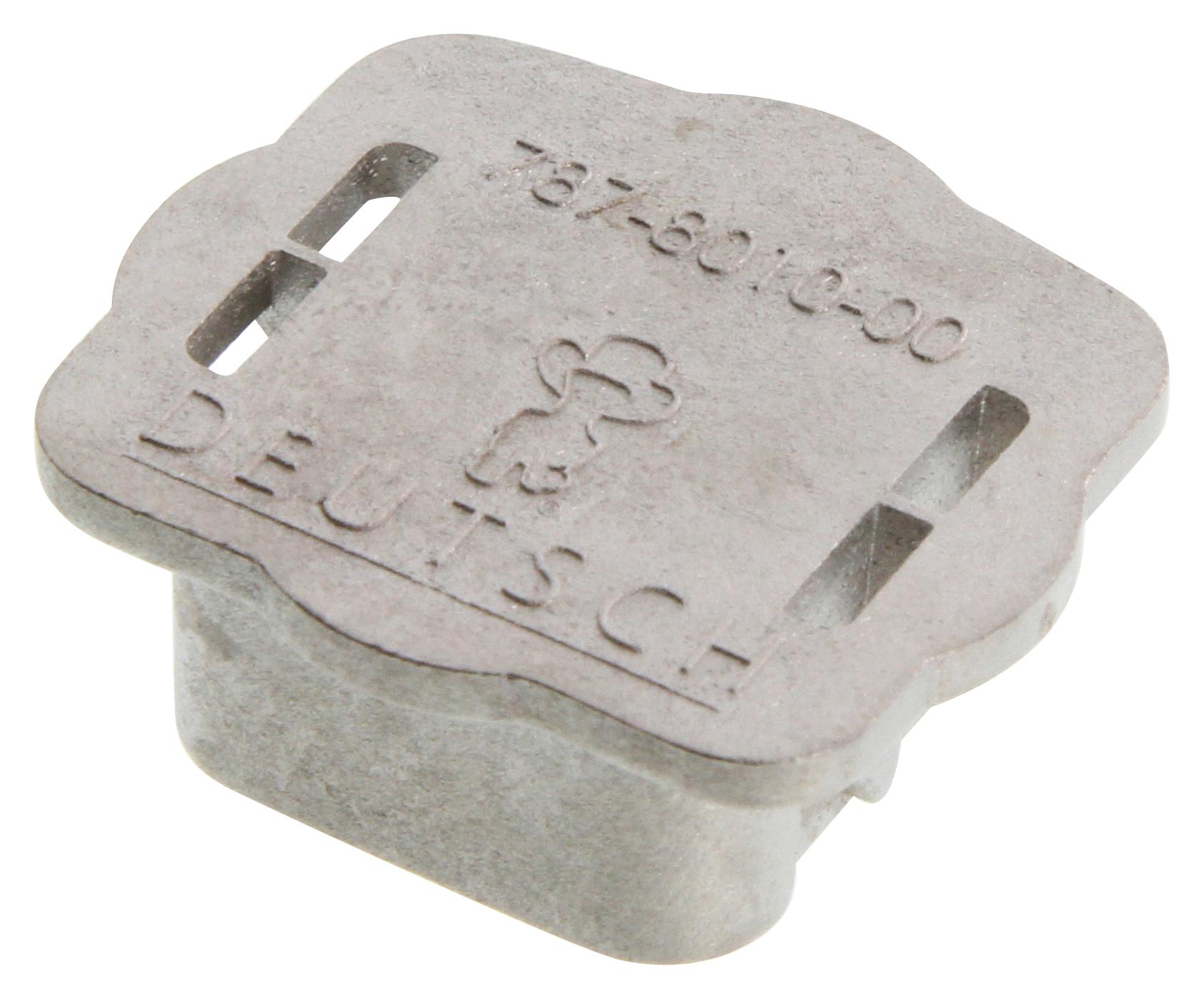

TE CONNECTIVITY 787801000 Modular Aerospace Connector
The Deutsch DMC-MD series connects aircraft in-flight entertainment and cabin systems with a modular, reliable, and lightweight design. These EN4165, ARINC 809, and BACC65 compliant connectors feature easy installation, flexible keying options, and rugged environmental performance. Made from durable composite housings, thermoplastic modules, and gold-plated contacts, they offer high vibration and salt spray resistance, suitable for aerospace, defense, and marine applications. The connectors support various configurations, including single and multi-cavity modules, with multiple backshell options for precise installation.
TE CONNECTIVITY 787801000 Modular Aerospace Connector Specifications:
- Housing: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Resistance: 5000 MΩ
- Pin Sizes & Ratings: Size 24: 3 A, Size 23: 5 A, Size 22: 5 A, Size 20: 75 A
- EMI Attenuation: 50 dB at 100 MHz, decreasing with frequency
- Weight: Receptacles approx. 0.013-0.015 lbs, plugs approx. 0.009-0.020 lbs
- Panel Mounting: Cutout diameters from 20 to 29.1 mm, recommended screw torque 0.5 N·m
Buy the Buy Deutsch DMC-MD Series Connector Part Number 787801000 Online
Discover the ease of online purchasing with the Deutsch DMC-MD series connectors, engineered for aerospace, defense, and marine use. These modular connectors provide flexible configurations, durable construction, and easy installation, making them ideal for aircraft cabin networks and other demanding environments. With corrosion resistance, vibration endurance, and multiple backshell options, buying online guarantees quick delivery of high-quality, reliable connectivity solutions tailored for your aerospace or military system needs. Elevate your project with trusted, easy-to-order Deutsch connectors today.
Buy Deutsch DMC-MD series connector now and experience unmatched reliability and lightweight performance for aerospace and military applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 787801000?
You can click on the BUY or RFQ button to purchase 787801000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 787801000?
You can download the 787801000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 787801000?
TE CONNECTIVITY
