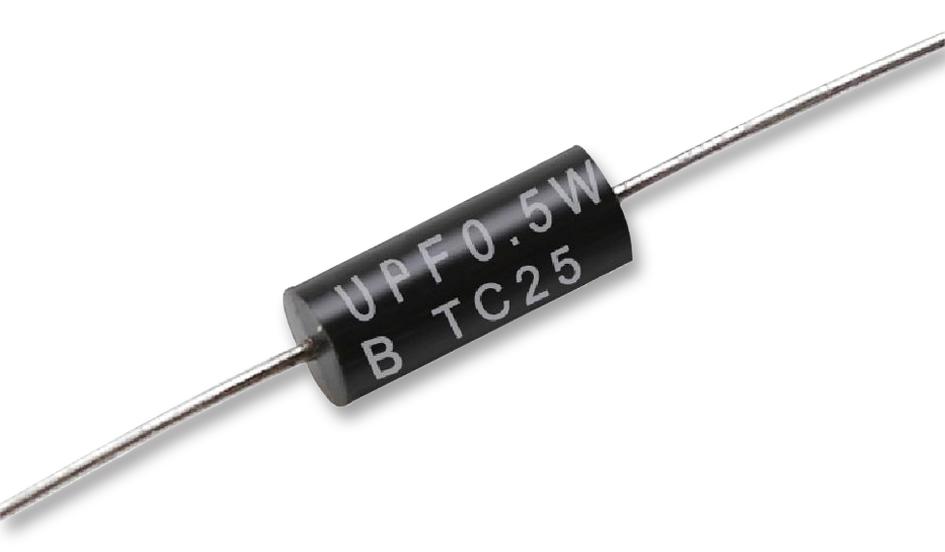

TE CONNECTIVITY UPF50B100KV High Precision Metal Film Resistor
The UPF Series high precision metal film leaded resistor provides exceptional stability, very tight tolerance down to +0.02%, and an extremely low TCR of +5PPM/C. Designed for use in precision measurement and equipment, it features a ceramic core (alumina ceramic), nickel alloy resistor element, and tinned annealed copper wire leads. With high accuracy and stability, the resistor supports various voltage ratings, temperature ranges from -55°C to +125°C, and excellent environmental resistance, making it ideal for demanding electronic applications.
TE CONNECTIVITY UPF50B100KV High Precision Metal Film Resistor Specifications:
- Power Rating: 1/4 W (UPF25), 1/2 W (UPF50)
- Voltage Rating: 250 V (UPF25), 500 V (UPF50)
- Resistance Range: 1 Ω to 500 kΩ
- Temperature Coefficient of Resistance: +5 PPM/°C
- Operating Temperature Range: -55°C to +125°C
- Resistance Tolerance: ±0.02%
- Construction: Ceramic core (alumina ceramic), nickel alloy resistor element, tinned annealed copper lead wires
- Physical Dimensions: UPF25 - 7.0 x 4.0 mm, UPF50 - 10.2 x 4.0 mm
- Insulation Resistance: > 1 GΩ at 800 V for 1 minute
- Solderability: 95% min. coverage at 245°C for 5 seconds
- Environmental Resistance: Damp heat, temperature cycling, and soldering heat tested
- Certification Standards: MIL-STD-202F, JIS-C-5201
Buy the TE Series UPF High Precision Metal Film Resistor: UPF50B100KV
Purchase the TE Series UPF50B100KV high precision metal film resistor online today and ensure exceptional stability and accuracy for your electronic projects. Ideal for measurement and precision equipment, it features extremely low TCR, tight tolerances, and reliable environmental resistance. Designed for demanding applications, it supports a wide temperature range, high voltage, and excellent durability. Buy now to benefit from fast shipping, authentic quality, and optimal performance in your high-precision electronics.
Get TE UPF50B100KV today—built for precision and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY UPF50B100KV?
You can click on the BUY or RFQ button to purchase UPF50B100KV from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part UPF50B100KV?
You can download the UPF50B100KV datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of UPF50B100KV?
TE CONNECTIVITY
