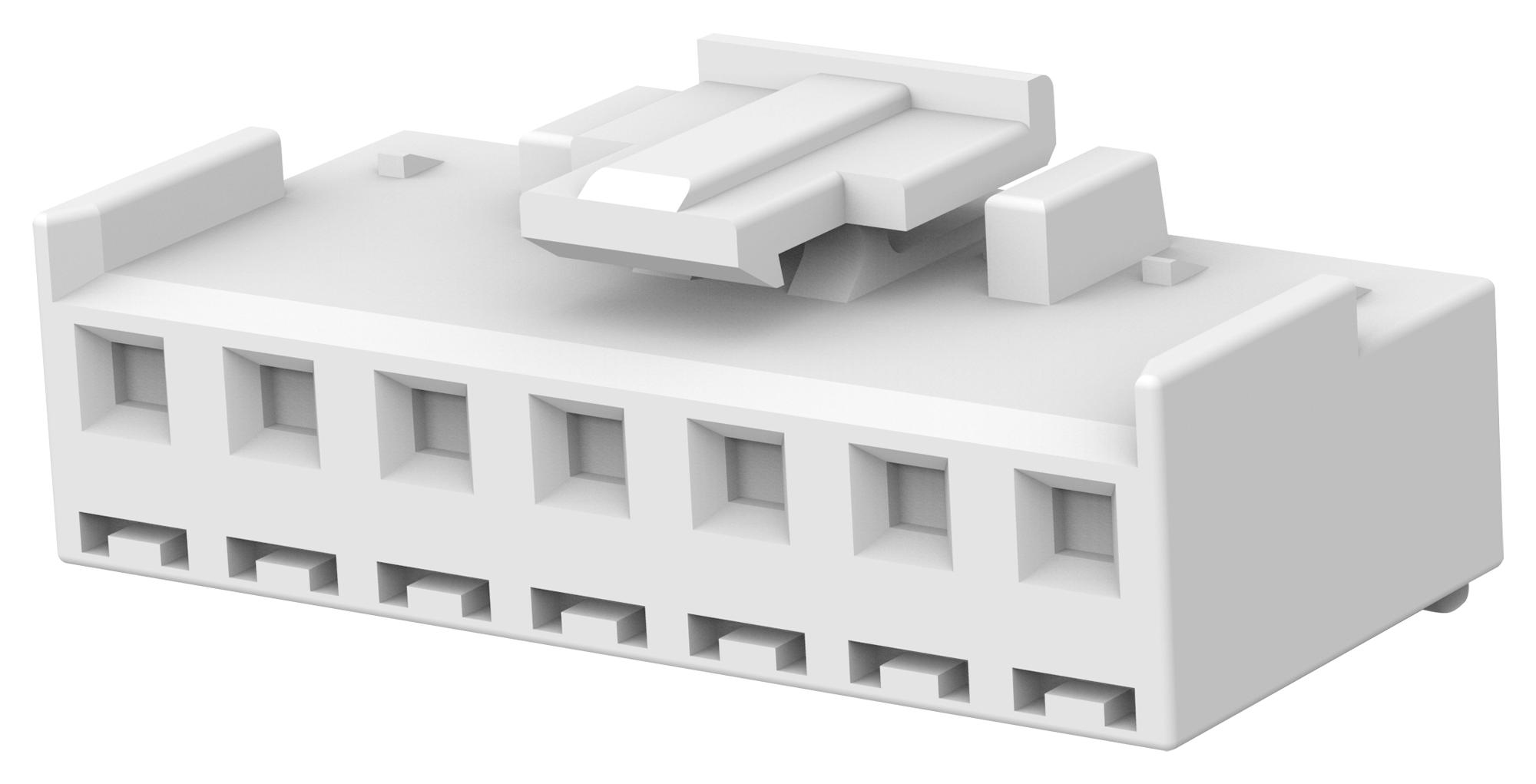

TE CONNECTIVITY 17444167 Glow Wire Connector
TE Connectivity offers Economy Power II glow wire connectors designed for safety and environmental compliance in household appliances, HVAC, and industrial machinery. These connectors feature UL 94 V-0 flammability, IEC 60335-1 compliance, and operate at voltage up to 600 VAC with a current rating of 11.5 A. They accommodate wire sizes from 0.26 to 1.33 mm (22 to 16 AWG) and include features like locking latches, polarization tabs, and continuity testing windows. Their durable copper contacts are tin plated, ensuring reliable electrical connections for global safety standards.
TE CONNECTIVITY 17444167 Glow Wire Connector Specifications:
- Voltage rating: 600 VAC
- Current rating: 11.5 A
- Position: 2 to 12 single row wire-to-board
- Wire size: 0.26 to 1.33 mm (22 to 16 AWG)
- Centerline: 3.96 mm
- Operating temperature: -55 to 105°C
- Contacts: Tin plated copper alloy
- UL recognition: E28476
- Application standards: IEC 60335-1, UL 94 V-O
- Flammability index: GWFI 850°C, GWEPT 750°C
- Housing material meets UL 94 V-0
- Features: Locking latch, polarization tabs, breakaway TPAs, continuity testing windows, contact lubrication
- Color options available upon request
Buy the TE Series Economy Power II Glow Wire Connectors: 17444167
Enhance your safety and compliance with TE Connectivity's Economy Power II glow wire connectors. Designed for household appliances, HVAC, and industrial machinery, these connectors meet UL 94 V-0 and IEC 60335-1 standards. They support wire sizes from 0.26 to 1.33 mm and operate at voltages up to 600 VAC with a current of 11.5 A. Features like locking latches, polarization tabs, and continuity testing windows ensure reliable connections. Available in various colors, they are essential components for global safety standards and efficient wiring solutions.
Order your TE Connectivity Series Economy Power II 17444167 glow wire connectors today and ensure safety precision for household and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 17444167?
You can click on the BUY or RFQ button to purchase 17444167 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 17444167?
You can download the 17444167 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 17444167?
TE CONNECTIVITY
