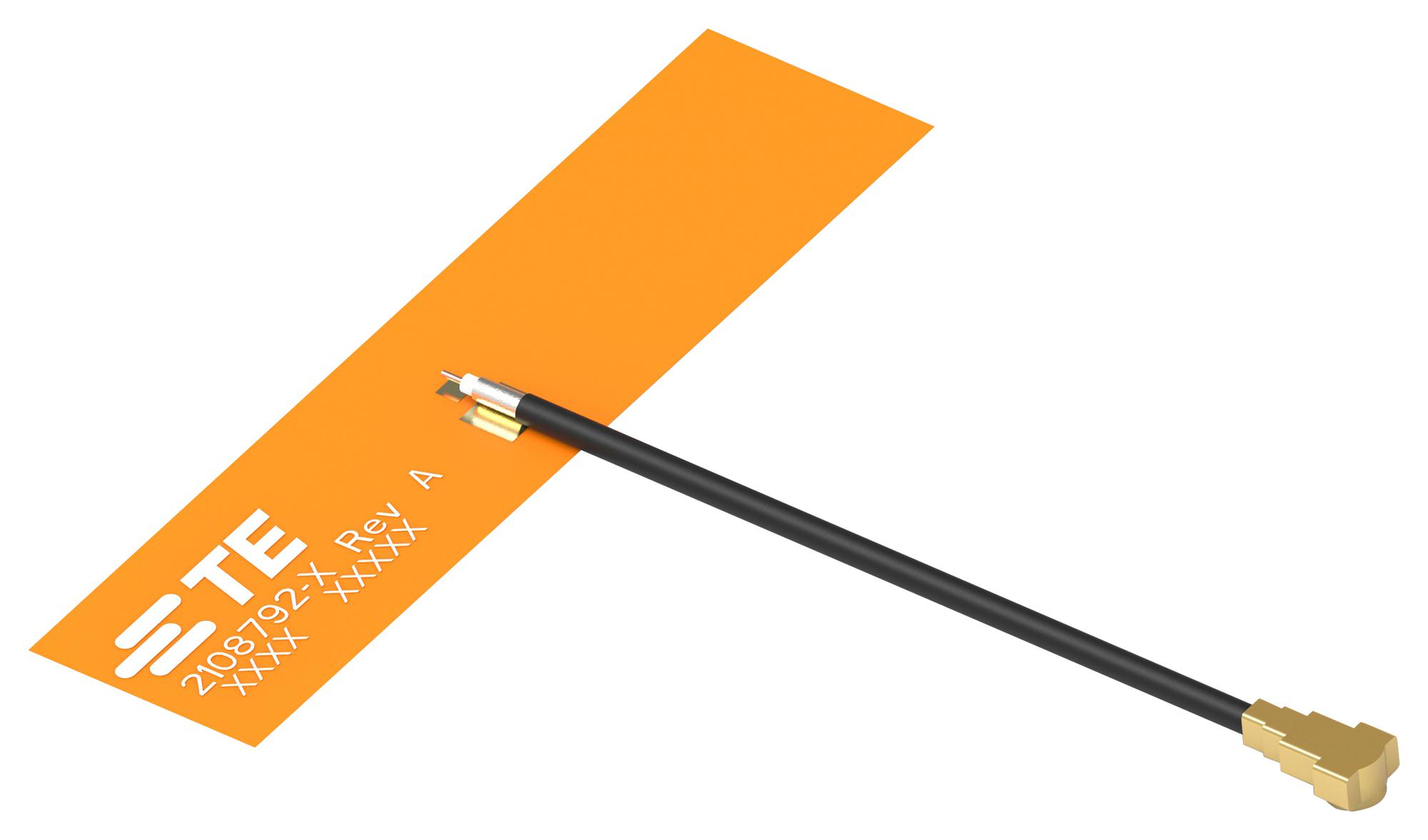

TE CONNECTIVITY 21087921 ZigBee/Bluetooth/WLAN Antenna
The TE Connectivity 2108792-1 is a versatile embedded antenna engineered for a wide range of wireless applications, including Bluetooth, WLAN, and ZigBee. Its flexible PCB design and adhesive mounting method allow for easy integration into various devices. The antenna boasts a triple-band frequency range, supporting multiple wireless standards like 802.11 a/b/g/n/ac/ad/ax. With a VSWR of less than 2:1 and an impedance of 50 Ω, it ensures efficient signal transmission and reception. The 113.8 mm cable assembly with an MHF compatible connector provides convenient connectivity. This antenna is a reliable solution for devices requiring robust wireless communication capabilities across global regions.
TE CONNECTIVITY 21087921 ZigBee/Bluetooth/WLAN Antenna Specifications:
- Wireless Application: Bluetooth, WLAN, ZigBee
- Antenna Connection Type: Cable Assembly
- Antenna Connector Type: MHF Compatible
- Cable Length: 113.8 mm
- Band Type: Triple Band
- Antenna Protocol: WLAN
- Number of Ports: 1
- Antenna Style: Embedded
- Antenna Type: Flexible PCB
- VSWR (Max): <2:1
- Impedance: 50 Ω
- Active Antenna: No
- Frequency Band: 2400 – 2500 MHz, 5150 – 5875 MHz, 5925 – 7125 MHz
- Product Weight: .546 g[.019 oz]
- Region: Global
- Polarization: Linear
- Mounting Retention Type: Adhesive
- Product Length: 40 mm
- Product Width: 10 mm
- Product Height: .12 mm
- Application by Region: Bluetooth - Global - 2400 – 2500 MHz, WLAN - Global - 2400 – 2483.5 MHz, WLAN - Global - 5150 – 5875 MHz, WLAN - Global - 5925 – 7125 MHz
- Wireless Standard: 802.11 a/b/g/n/ac/ad/ax, Bluetooth, ZigBee & Wi-Fi
- Packaging Method: Bag & Box
- Precision Level: Standard
