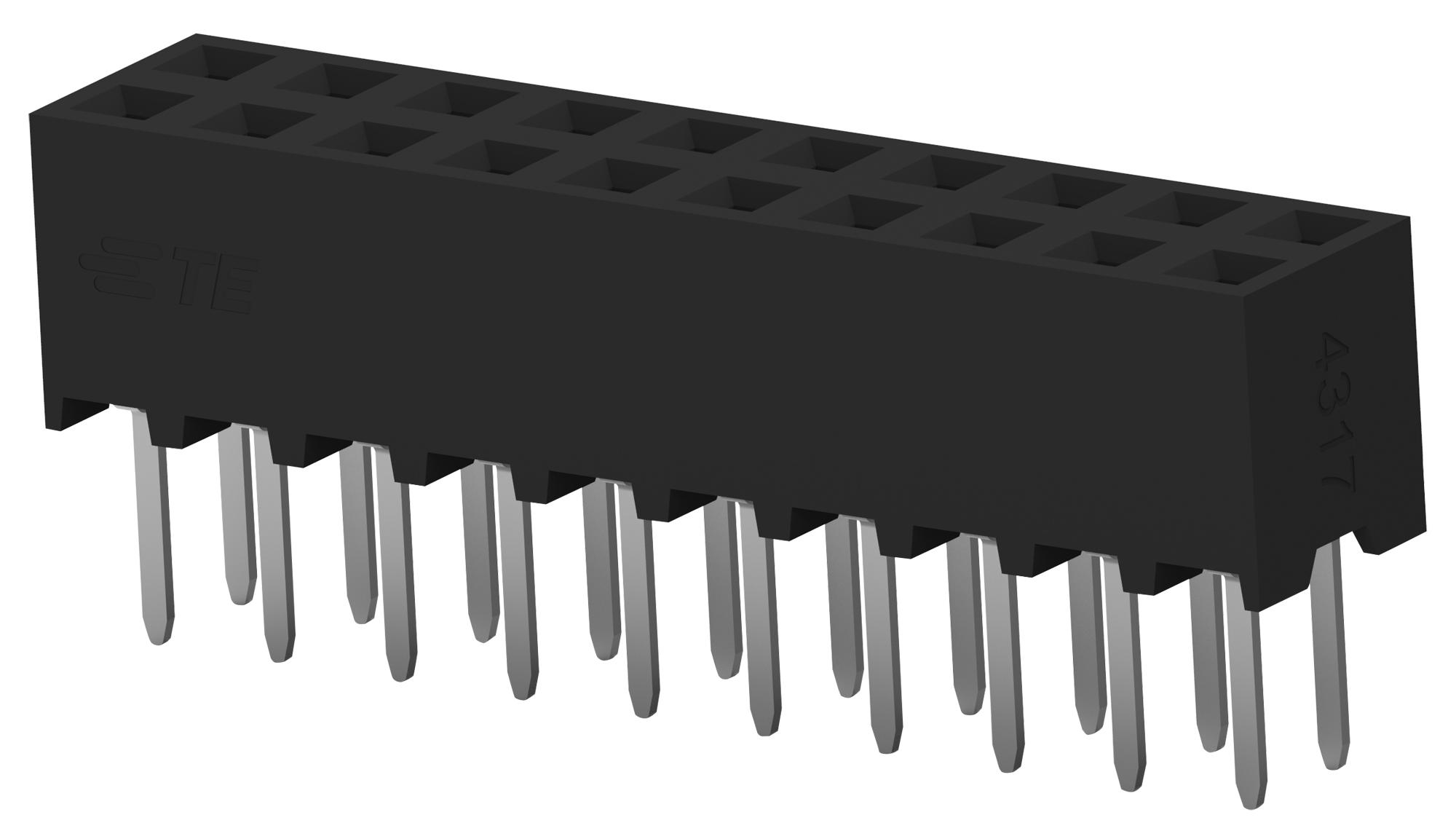

TE CONNECTIVITY 223148200 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles are designed for reliable signal transfer in industrial automation, PLC, servo drives, and testing equipment. Constructed from flame-retardant UL94V0 high-temperature plastic, these receptacles feature dual-beam phosphor bronze contacts with multiple gold plating options, ensuring electrical stability and durability. Available in surface-mount and through-hole configurations with various solder tail lengths for PCB thicknesses from 1.6mm to 2.4mm, offering space-saving design and multiple stacking options. RoHS and REACH compliant, these receptacles support automated assembly and withstand operating temperatures from -40°C to 125°C.
TE CONNECTIVITY 223148200 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Contact Material: Phosphor Bronze
- Gold Plating Options: 30p" [0.76um], 15y" [0.38um], 4u" [0.1um]
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Current Rating: 2A (max.)
- Operating Temperature: -40°C to 125°C
- Vibration Resistance: No electrical discontinuity >1 microsecond
- Reflow Solder Capability: Up to 260°C
- Housing Material: UL 94V0 Liquid Crystal Polymer (LCP), Black
- Compliance: RoHS & REACH, UL Certified, Pending VDE Approval
- Packaging: Available in tape & reel and tube formats for automated assembly
- Application Compatibility: Surface-mount, through-hole reflow, high-temperature applications
Buy the Buy TE Connectivity AMPMODU 2mm Part Number 223148200 Online
Secure your industrial automation projects with TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles. Engineered for space efficiency, these high-reliability connectors support PCB stacking and offer dual-beam contacts for increased electrical stability. Suitable for surface-mount and through-hole reflow processes, they withstand harsh environments and temperatures from -40°C to 125°C. RoHS and REACH compliant, they ensure safe, compliant, and long-lasting performance. Purchase online now to streamline your assembly and ensure reliable connections in PLCs, servo drives, and instrumentation.
Get TE Connectivity AMPMODU 2mm Board-to-Board Receptacles today—designed for space-saving stacking, reliable contacts, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223148200?
You can click on the BUY or RFQ button to purchase 223148200 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223148200?
You can download the 223148200 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223148200?
TE CONNECTIVITY
