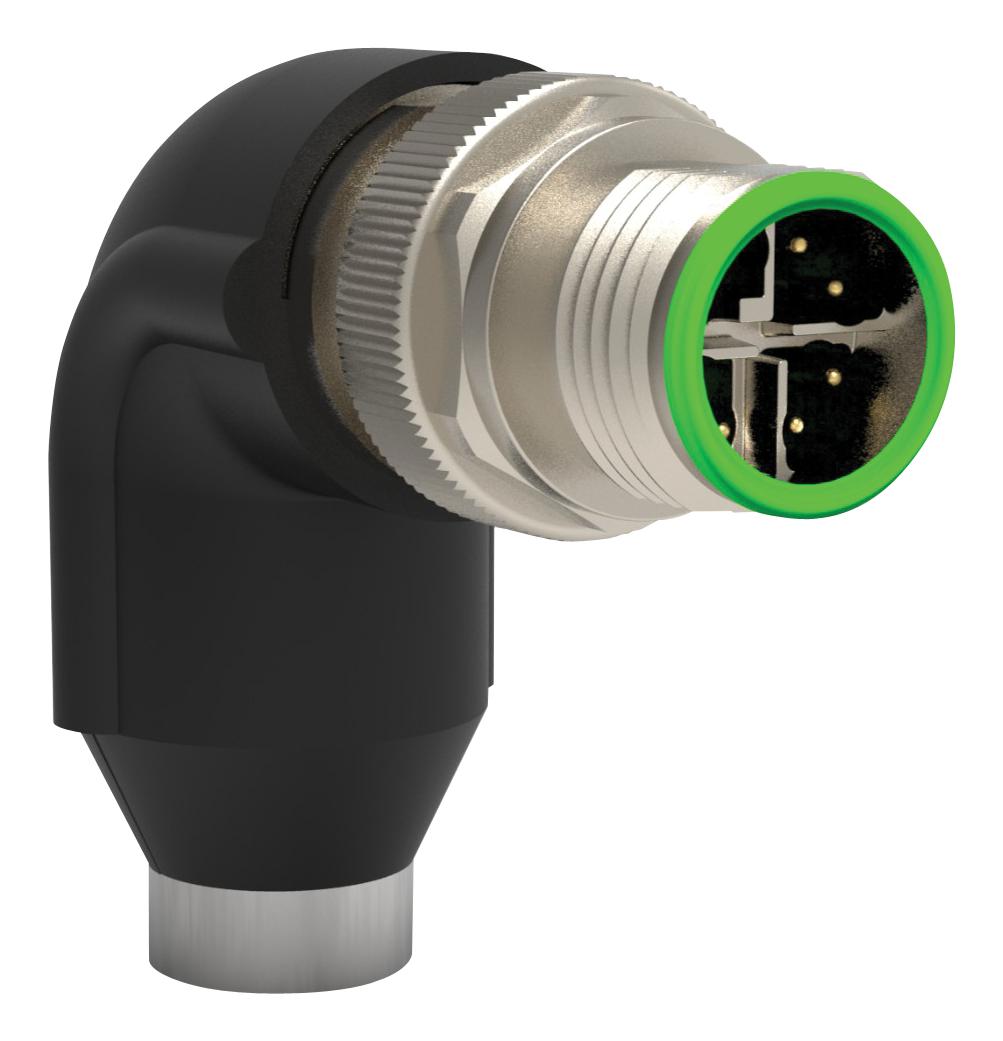

TE CONNECTIVITY 23507912 Industrial M12 Ethernet Connector
The M12 X-Coded Right Angle connector is designed for industrial applications requiring reliable, high-speed Ethernet connectivity up to 10 Gb/s in harsh environments. Its compact, ruggedized construction supports IP67 waterproofing, vibration, and torsion resistance, making it ideal for onboard networks such as passenger info, entertainment, surveillance, and Wi-Fi systems. Easy to assemble with pre-assembled components and flexible cable exit options, it features screw-machined crimp contacts, EMI/RFI shielding, and operates reliably between -40°C to 85°C. Its space-saving design is perfect for confined spaces.
TE CONNECTIVITY 23507912 Industrial M12 Ethernet Connector Specifications:
- Voltage Rating: 48V
- Current Rating: 0.5A
- Data Transmission Rate: up to 10 Gb/s
- Standards: IEC 61076-2-109, IEC 802.3an Cat 6a
- Material: Cu Alloy Ni plated housing, Elastomer O-Ring seal, TPE Grip Boot, Thermoplast contact holder
- Electrical Resistance: Contact resistance < 5 mΩ, Insulation resistance >= 100 MΩ
- Mechanical Durability: 250 cycles
- Temperature Range: -40°C to 85°C (without booth), -40°C to 70°C (with booth)
- IP Protection: IP67
- Conductor Size: AWG 22-26
- Vibration Test: EN 61373 Category 1, class B
- Dimensions: Length 43.4 mm, Width 35.6 mm, Height 42.2 mm
- Cables: Flexible, with cable exit options at 45° increments
Buy the TE Connectivity Series M12 X-Coded Right Angle: 23507912
Enhance your industrial network with the ruggedized M12 X-Coded Right Angle Ethernet connector. Supporting up to 10 Gb/s, IP67 waterproofing, and vibration resistance, it offers quick assembly and space-saving design for confined industrial spaces. Its durable construction, suitable for onboard systems like passenger info, surveillance, and Wi-Fi networks, ensures reliable performance in extreme temperatures from -40°C to 85°C. Pre-assembled, with flexible cable exits, it is ideal for customers seeking robust, high-quality Ethernet solutions.
Order your TE Connectivity Series M12 X-Coded Right Angle connector today and ensure reliable, high-speed Ethernet connections in harsh industrial environments.
