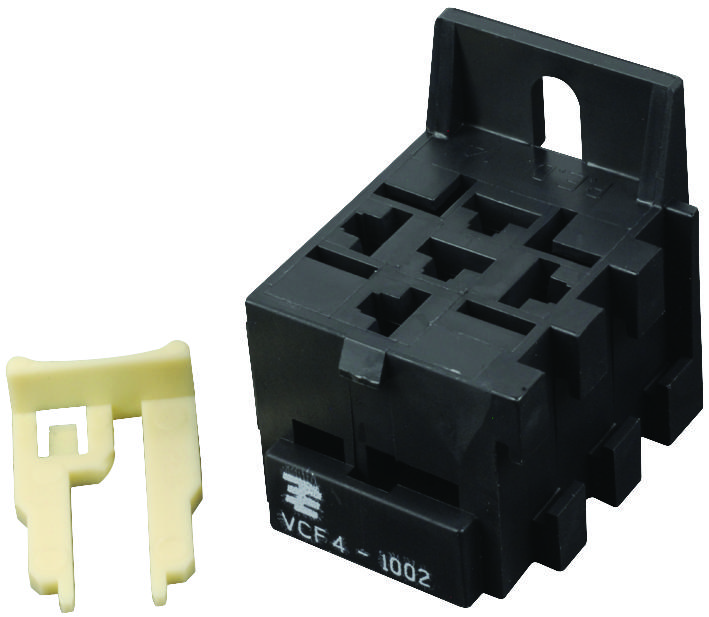

TE CONNECTIVITY VCF41002 Relay Socket
The VCF4-1002 is a 5-pin relay socket equipped with quick-connect terminals, designed for use with plug-in mini ISO relays and suitable for bracket-type mounting. It ensures a reliable connection in industrial applications, allowing easy installation and secure attachment for relay components. The socket supports interlocking and individual mounting options, with crimp terminals ordered separately. Its robust design and compatibility with various relay pin configurations make it ideal for automation, control systems, and electronic equipment needing dependable relay connections in demanding environments.
TE CONNECTIVITY VCF41002 Relay Socket Specifications:
- Type: PCB socket for mini ISO relays
- Number of pins: 5
- Mounting: Bracket-type, interlocking or individual
- Terminal type: Quick-connect, crimp terminals ordered separately
- Pin configuration: Compatible with VCF4-1000/1001 series
- Application: Industrial relay connections
- Material: Insulated thermoplastic housing
- Compatibility: Relay pin spacing 16-12 AWG (1.3 - 8.3 mm2) and 20-18 AWG (0.5 - 0.8 mm2)
- Certifications: IEC 61810-1 compliant
- Dimensions: Standard relay socket size for mini ISO relays
- Design features: Soldering recommended with relay inserted to minimize insertion force
- Operational temperature range: -55°C to +105°C
- Supplied with: 24A111 terminal retainer
Buy the Tyco Series VCF4 Relay Socket: VCF4-1002
Experience reliable and secure relay connections with the Tyco VCF4-1002 relay socket. Designed for industrial automation, it offers quick-connect terminals and flexible mounting options. Whether for control panels or automation systems, this socket ensures consistent performance and ease of installation. Suitable for mini ISO relays, it supports robust operation in demanding environments, reducing downtime. Order online now to enhance your system’s reliability and achieve seamless relay integration for manufacturing, electronic control, and automation applications.
Get Tyco VCF4-1002 relay socket today—built for industrial reliability and easy installation in automation systems.
