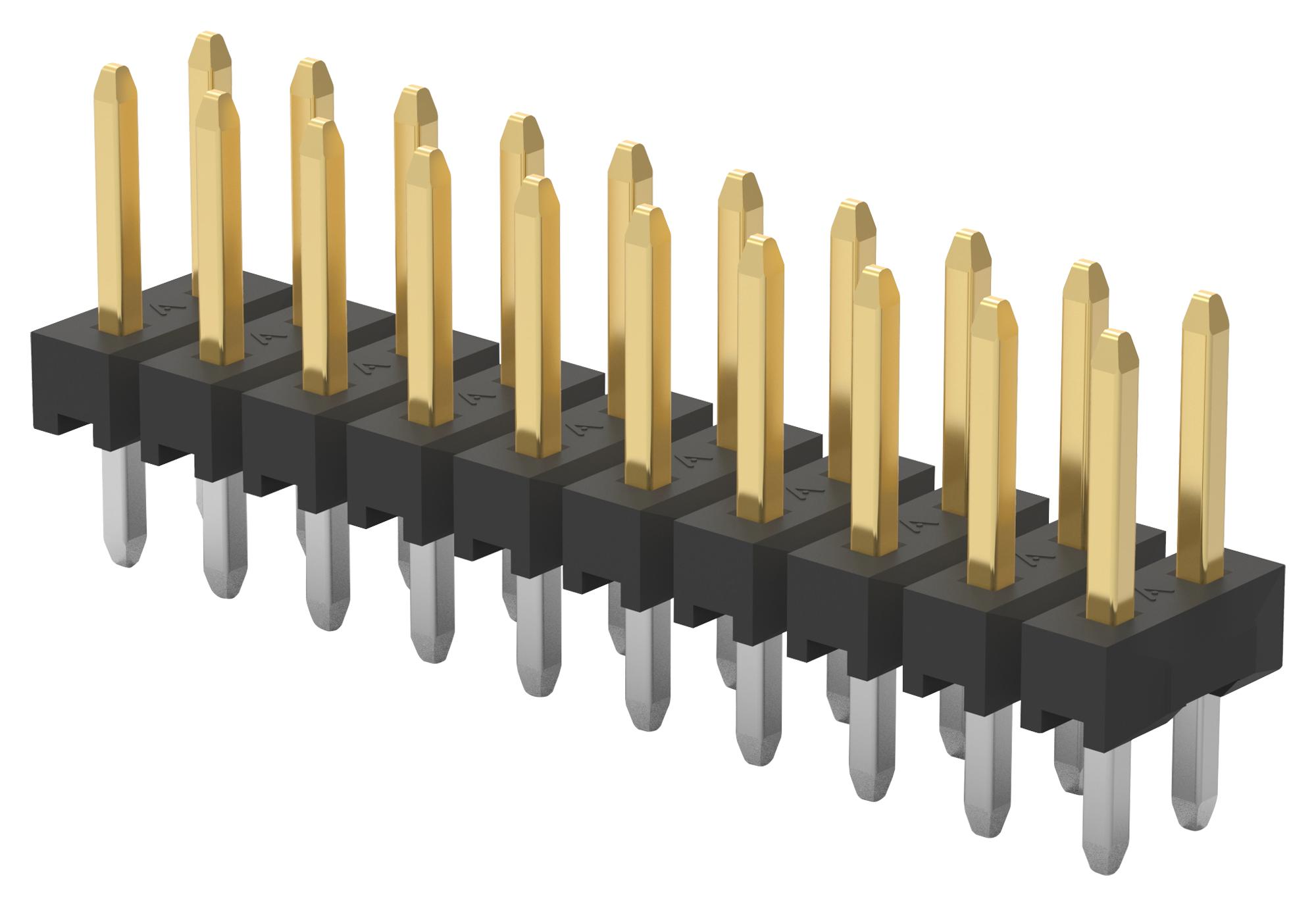

TE CONNECTIVITY 28421286 PCB Header
The AMPMODU 2mm Breakaway Header is a compact, high-performance connector designed for PCB applications. It features a 2.00mm centerline with 0.50mm square pins, suitable for board-to-board and wire-to-board connections. Compatible with automation and through-hole mounting, it offers space-saving benefits by reducing PCB footprint by nearly 38% compared to standard 2.54mm headers. Made from high temperature UL 94VO plastic, it supports operating temperatures from -40°C to 125°C, with gold and tin plating options for reliable electrical connections. Ideal for industrial automation, control systems, and instrumentation.
TE CONNECTIVITY 28421286 PCB Header Specifications:
- Centerline: 2.00mm [0.079]
- Pin Size: 0.50mm [0.02"] square pins
- Number of Positions: 2 to 25 per row, single or double row options
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Material: High temperature UL 94VO plastic housing
- Electrical Rating: 2A max. current, dielectric withstand voltage 650VAC, operating voltage 125VDC
- Operating Temperature: -40°C to 125°C
- Reflow Capable: Up to 260°C
- Plating Options: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Certifications: RoHS & REACH compliant, UL certified
- Vibration Resistance: No electrical discontinuity greater than UL standard
Buy the TE Connectivity Series AMPMODU 2mm Breakaway Header: 28421286
Order the TE Connectivity 28421286 high-performance breakaway header online today to enhance your PCB assemblies. This compact connector with a 2mm centerline saves nearly 38% space, allowing for more functionality in limited areas. Crafted from UL 94VO plastic, it operates efficiently from -40°C to 125°C and is reflow solder capable at 260°C. Available with gold and tin plating options, it ensures reliable electrical connections and durability, perfect for industrial controls, automation, instrumentation, and material handling systems.
Buy TE Connectivity 28421286 now and experience unmatched reliability and performance with space-saving, high-temperature PCB headers suitable for industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421286?
You can click on the BUY or RFQ button to purchase 28421286 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421286?
You can download the 28421286 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421286?
TE CONNECTIVITY
