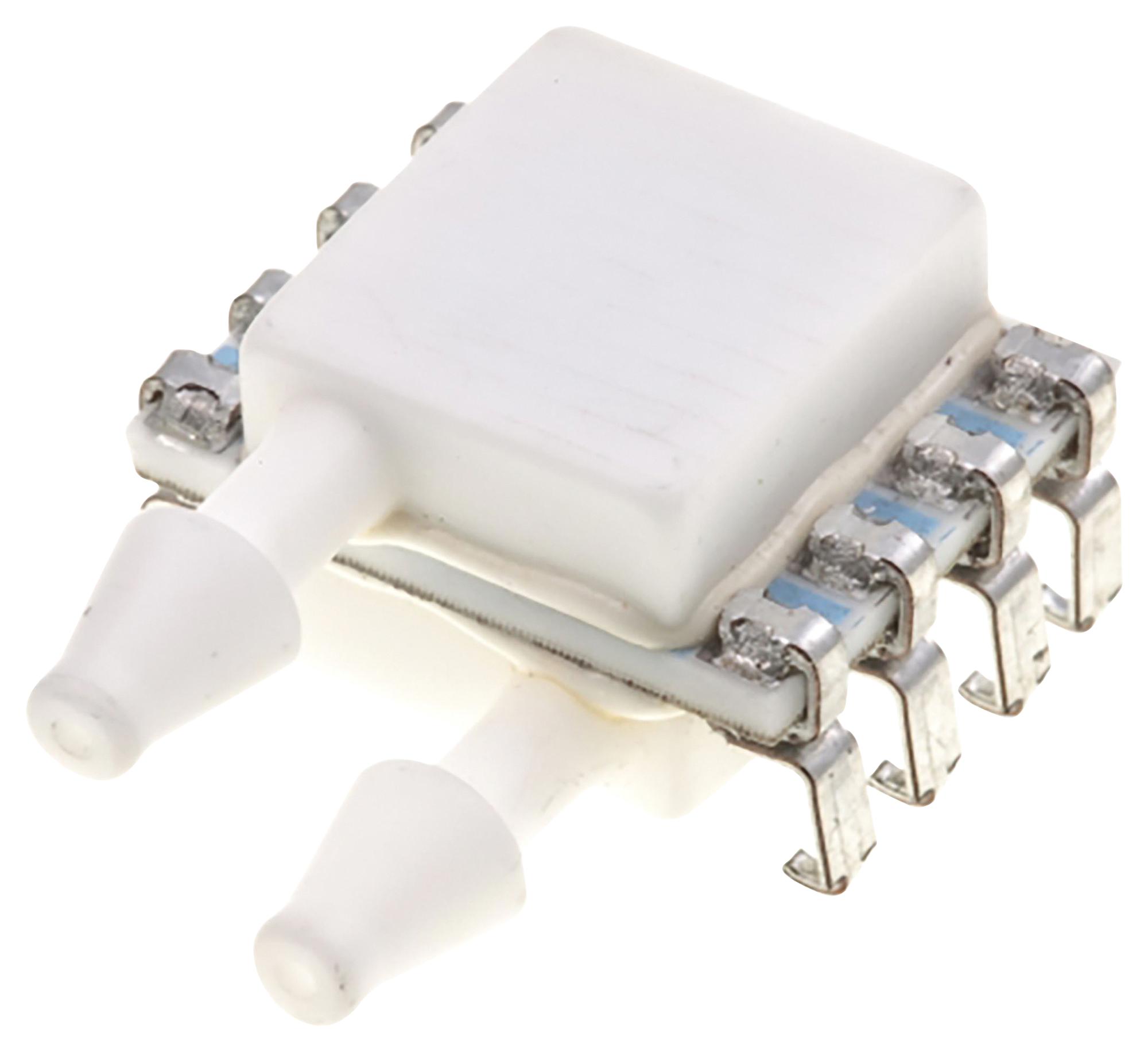

TE CONNECTIVITY 4525DOTP5AS005GPF Pressure Sensor
This is a small, ceramic-based, PCB-mounted pressure transducer featuring a proprietary UltraStable™ process and advanced CMOS sensor conditioning circuitry. It provides a low-cost, high-performance digital output with a 14-bit resolution for pressure and an 11-bit resolution for temperature measurements. Designed to meet stringent OEM requirements, it is suitable for applications such as blocked filter detection, altitude and airspeed measurements, medical instruments, fire suppression systems, panel meters, environmental controls, and pneumatic systems. The transducer has a top port, operates on a 5V DC supply voltage, and offers 10% to 90% output modulation. It has a pressure range of 0.05 PSI, uses an SPI interface, and features gauge pressure measurement. Options include through-hole pins and gel coating protection.
TE CONNECTIVITY 4525DOTP5AS005GPF Pressure Sensor Specifications:
- Dimensions: 12.4 mm x 12.4 mm x 8 mm
- Material: Ceramic and silicon sensor elements
- Pressure Range: 0.05 PSI (adjustable across standard ranges)
- Pressure Types: Gauge, Differential, Absolute, Vacuum, Compound
- Output Resolution: 14-bit pressure, 11-bit temperature
- Supply Voltage: 3.3V or 5.0V DC
- Interface: SPI and I2C protocols
- Port Types: Top port, side port, manifold mount options
- Wetted Materials: Ceramic, silicon, borosilicate glass, RTV, gold, aluminum, epoxy
- Temperature Range: -10°C to +85°C (compensated), -25°C to +105°C (operational)
- Accuracy: ±0.25% span, Total Error Band less than 1%
- Response Time: 5 ms update rate
- Power Consumption: Standard or low power options (<1A in standby)
Buy the TE Connectivity MS4525DO – Reliable Pressure Sensor for Industrial Applications
Order the TE Connectivity pressure sensor online today and experience high accuracy and durability for your industrial, medical, or aerospace projects. Compact and easy to install, this sensor offers a 14-bit pressure and 11-bit temperature measurement resolution, with options for various pressure types including gauge, differential, and vacuum. Operating on 3.3V or 5.0V DC, it features SPI and I2C interfaces for seamless integration. Its rugged ceramic construction ensures reliable performance in harsh environments, making it ideal for OEM, environmental control, and pneumatic systems. Purchase now for fast delivery and dependable operation.
Get TE Connectivity MS4525DO today—built for precision and long-lasting durability in critical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 4525DOTP5AS005GPF?
You can click on the BUY or RFQ button to purchase 4525DOTP5AS005GPF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 4525DOTP5AS005GPF?
You can download the 4525DOTP5AS005GPF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 4525DOTP5AS005GPF?
TE CONNECTIVITY
