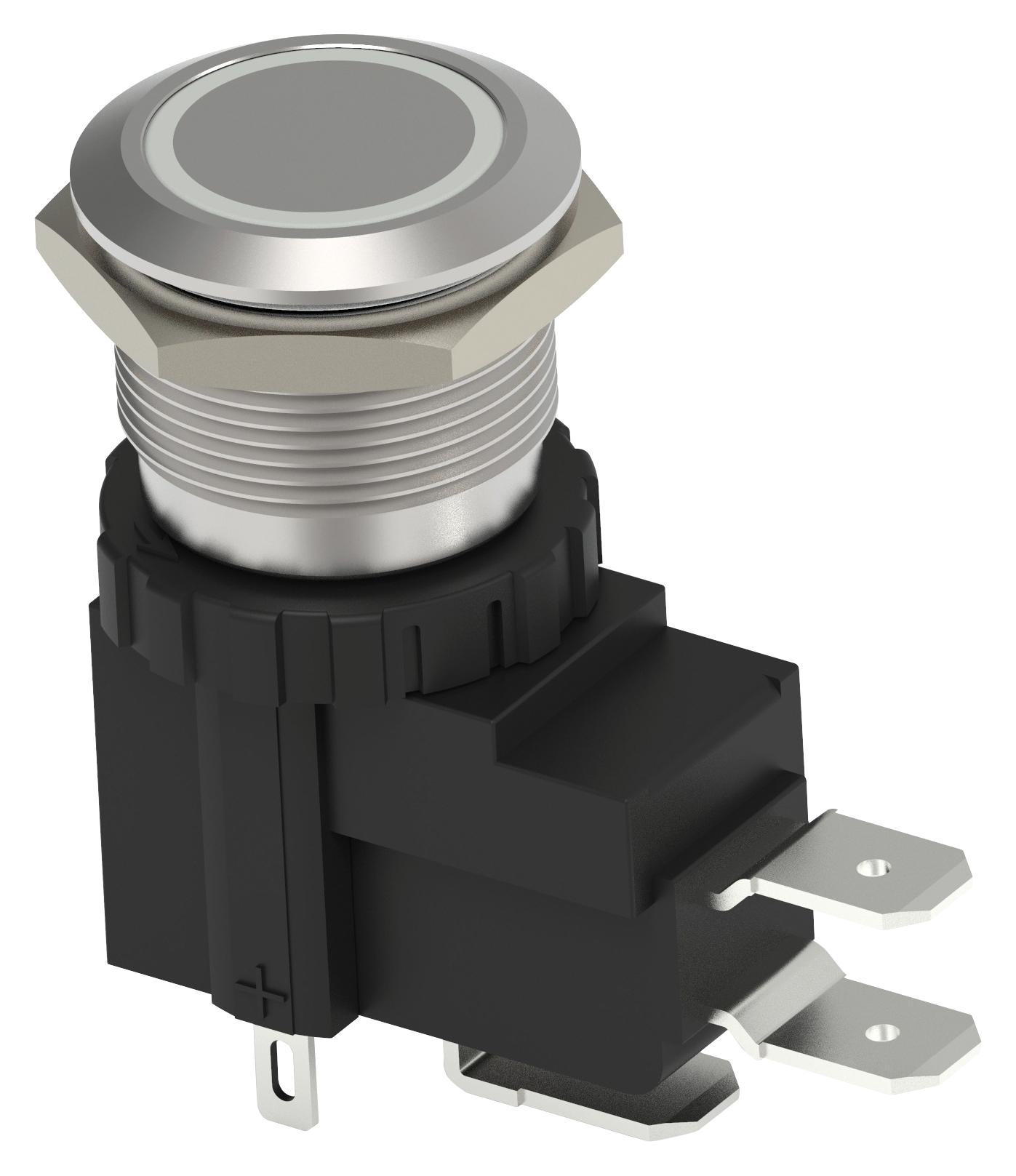

TE CONNECTIVITY AVH19LSFE6242604 Vandal-Resistant Pushbutton Switch
The AVH Series anti-vandal high current pushbutton switches are designed for demanding industrial, automotive, shipping, medical, and access control applications. Available in 19mm, 22mm, and 25mm diameters, these switches feature a contact rating of up to 26A at 125/250VAC, with options for momentary or locking operation, LED indicators, and various sealing and bushing types. Built to withstand harsh environments with an ingress protection of IP67, they support high mechanical and electrical longevity, making them ideal for rugged industrial and electronic control systems.
TE CONNECTIVITY AVH19LSFE6242604 Vandal-Resistant Pushbutton Switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Panel Cut-out Diameter: 19.10mm, 22.20mm, 25.20mm
- Maximum Panel Thickness: 10.0mm
- Contact Rating: 16A, 26A / 125VAC, 250VAC
- Material: Silicone sealing, stainless steel body options
- Actuation: Momentary or locking
- Operation Force: 3.5 ± 1.5 N
- Travel: 3.2mm
- Ingress Protection: IP67
- Temperature Range: -25°C to 85°C
- LED Light Types: Non-LED, Power Symbol, Ring, Illuminated Power Symbol
- Terminal Types: #187, #250, 16A, 26A
- Mechanical Life: Up to 1,000,000 cycles
- Electrical Life: 10,000 cycles
- Sealing: Silicone
- Certifications: UL Recognized
Buy the AVH Series – Reliable Vandal-Resistant Pushbutton for Industrial Applications
Discover the robust AVH Series vandal-resistant high current pushbutton switches available online. Designed for industrial, automotive, and control applications, these switches offer high current ratings up to 26A, IP67 sealing, and durable stainless steel or silicone construction. Available in multiple sizes with LED options, they support momentary or locking operation with long mechanical and electrical lifespans. Easy to install with panel cut-outs tailored for each size, perfect for demanding environments requiring reliable operation over millions of cycles.
Get AVH Series pushbutton switches today—built for rugged industrial environments and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE6242604?
You can click on the BUY or RFQ button to purchase AVH19LSFE6242604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE6242604?
You can download the AVH19LSFE6242604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE6242604?
TE CONNECTIVITY
