TE CONNECTIVITY FX293X100A0025L Force Sensor
The FX29 compression load cell is a compact, versatile force sensor designed for embedded force measurement in medical, industrial, and robotic applications. Utilizing Microfused technology, it offers excellent stability, high over-range capability, and multiple output options including mV, amplified, and digital signals. Constructed from stainless steel with a micro miniaturized MEMS strain gauge, the sensor provides reliable, precise force measurement across a range of load capacities from 50N to 500N (10 to 1000 lbf). Its rugged design ensures durability in demanding environments while maintaining low power consumption and environmental resistance.
TE CONNECTIVITY FX293X100A0025L Force Sensor Specifications:
- Load Ranges: 10 lbf (50 N) to 100 lbf (500 N)
- Output Options: mV, amplified (0.5-4.5V), digital (I2C)
- Supply Voltage: 5.0V ±0.25V (analog), 3.0V ±0.3V (digital)
- Max Over-Range: 2.5 times rated load
- Material: Stainless steel enclosure with microfused sensing element
- Linearity: ±1% of span
- Hysteresis & Repeatability: ±0.8% span
- Size: Length approximately 40 mm, width 19.7 mm, height 20 mm
- Thermal Range: -40°C to +85°C
- Ingress Protection: IP43
- Cycle Life: >1 million full load cycles
- Response Time: 3 ms (digital), 2 ms (analog)
- Weight: 6 grams
- Environment: Resistant to humidity up to 85% RH, EMI/RFI protected

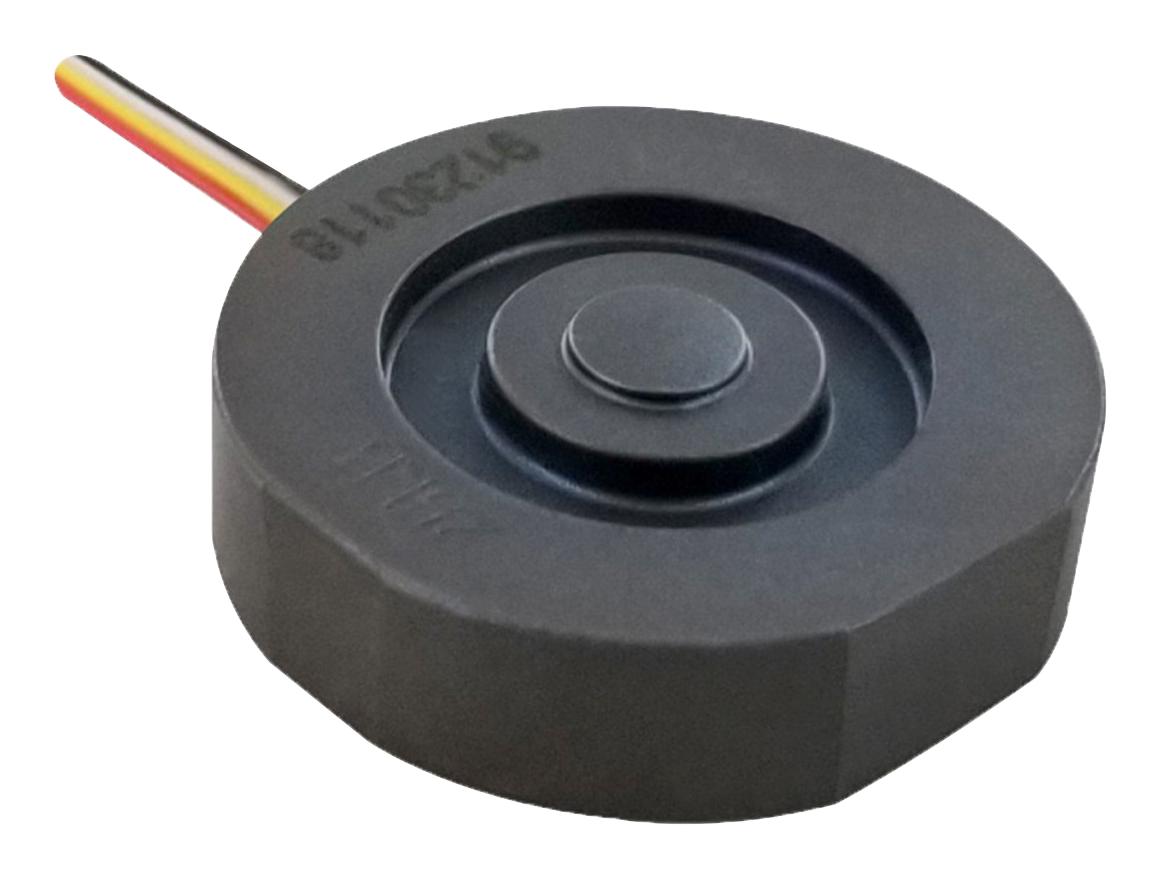

Buy the TE Connectivity Series FX29 Compression Load Cell: FX293X100A0025L
Discover the high-performance TE Connectivity Force Sensor, designed for precise force measurement in medical, robotics, and industrial applications. Compact and rugged, it features multiple output options including mV, amplified, and digital signals, with load capacities from 50N to 500N. Its stainless steel enclosure ensures durability while maintaining accuracy and stability over extensive cycles. Easy to integrate into complex systems, this sensor offers quick response times, low power consumption, and excellent environmental resistance. Upgrade your force sensing solutions with this reliable, versatile sensor today.
Order your TE Connectivity Series FX29 compression load cell today and give your force measurement projects the reliable accuracy they deserve.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FX293X100A0025L?
You can click on the BUY or RFQ button to purchase FX293X100A0025L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FX293X100A0025L?
You can download the FX293X100A0025L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FX293X100A0025L?
TE CONNECTIVITY
