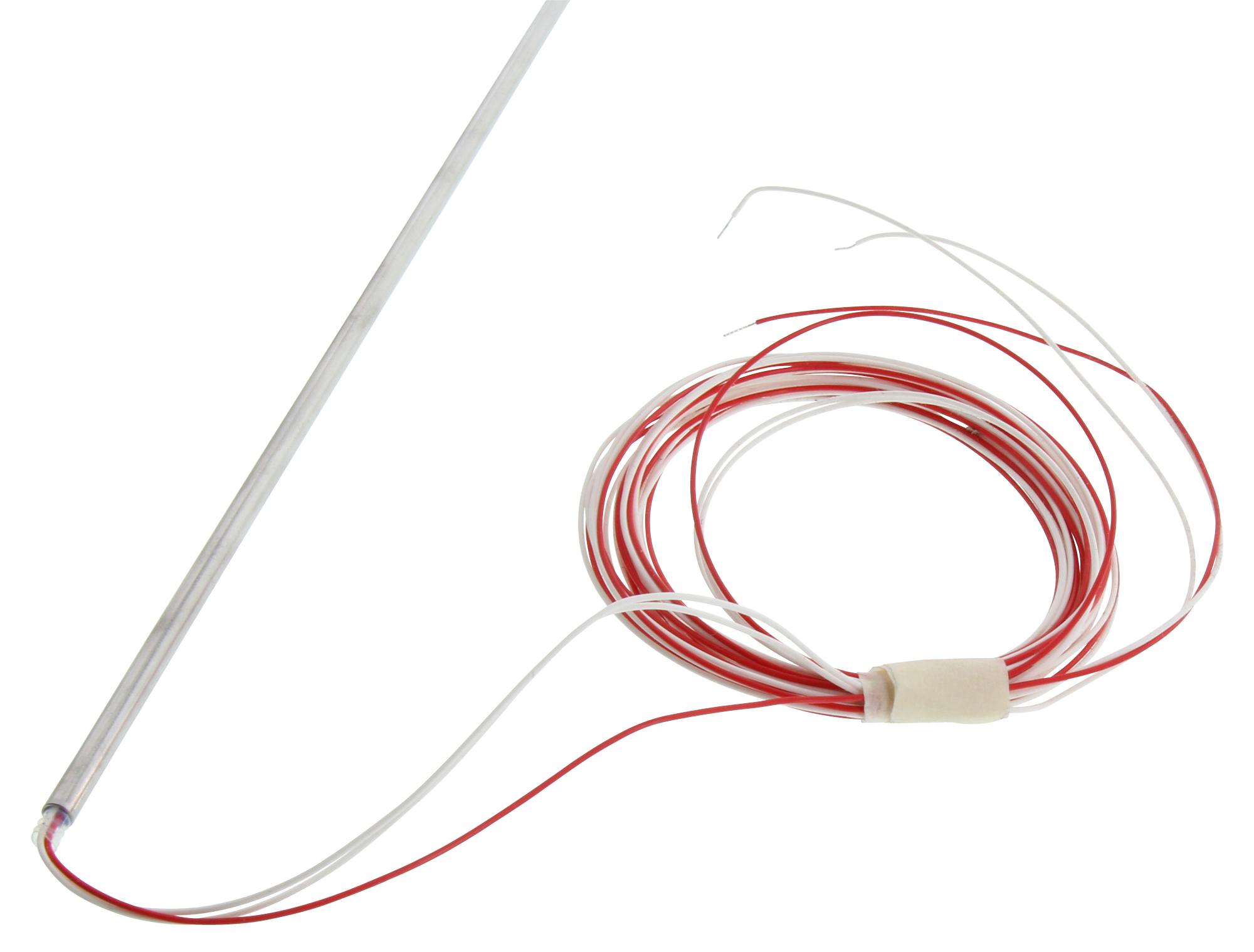

TE CONNECTIVITY R8580360 Bearing RTD Probe
The Tip Sensitive Bearing RTD Probe is a highly accurate tubular temperature sensor encased in a copper alloy tip, designed for bearing temperature measurement in electric motors and generators. It features various sheath styles, including stainless steel and epoxy glass, with single or dual element configurations using platinum, copper, or nickel. The probe offers fast response times, adjustable lengths up to 96 inches, and is suitable for industrial applications requiring precise monitoring of bearing temperature in dynamic environments, ensuring reliable operation and preventive maintenance.
TE CONNECTIVITY R8580360 Bearing RTD Probe Specifications:
- Sheath Styles: Stainless Steel, Isolated Stainless Steel, Insulated Epoxy Glass
- Sheath Diameters: 0.188", 0.250", 0.215"
- Elements: Single or Dual, Platinum, Copper, Nickel
- Insulation Resistance: 1000 megohms @ 500 VDC to case, 100 megohms @ 50 VDC between elements
- Time Constant: Stainless Steel Sheath 2.0 sec, Dual Element 3.0 sec, Epoxy Glass 2.5 sec
- Pressure Rating: Stainless Steel 100 psi, Epoxy Glass 30 psi, Fluid Sealed Holder 50 psi
- Temperature Range: -50°C to 250°C (-58°F to 482°F)
- Accuracy: Repeatability less than + .06% ice point resistance, stability less than + .2% after 1000 hours
- Sheath Length: 3.0" to 96.0"
- Model Options: P2B Platinum, P2C Platinum, N3C Nickel, Copper with various leadwire configurations
Buy the Buy TE Connectivity Tip Sensitive Bearing RTD Probe Part Number R8580360 Online
Purchase the TE Connectivity Bearing RTD Probe today to ensure accurate, reliable temperature sensing in electric motors and generators. With versatile sheath styles, adjustable lengths up to 96 inches, and a variety of element configurations, this probe provides fast response and long-term stability. Its robust construction allows for operation under high pressure and temperature conditions, making it ideal for industrial environments. Order online now for quick delivery and elevate your maintenance protocols with precision temperature monitoring for bearings.
Get TE Connectivity Tip Sensitive Bearing RTD Probe R8580360 today—engineered for precise bearing temperature monitoring and exceptional durability.
