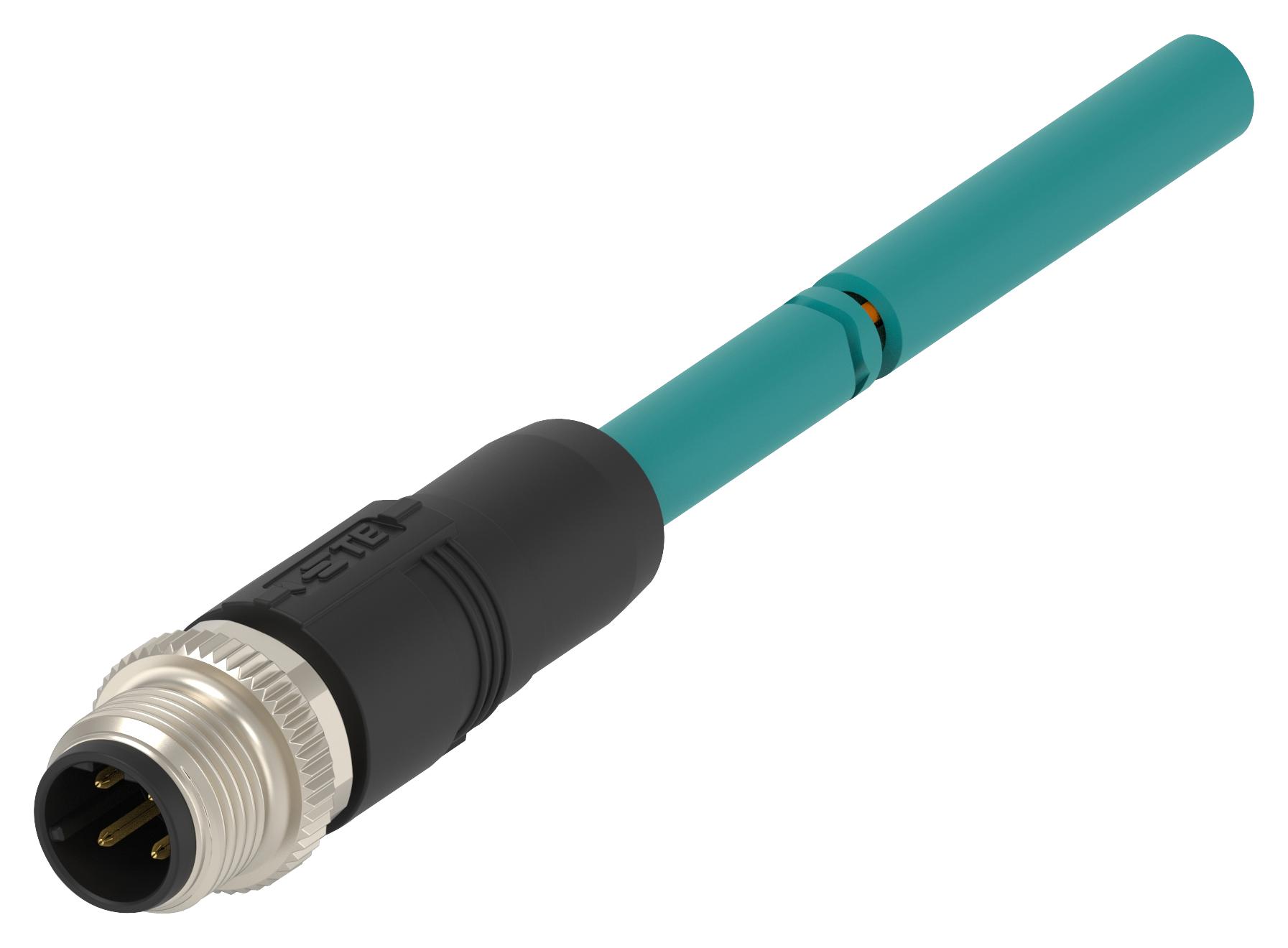

TE CONNECTIVITY TAD2413A201005 Industrial Ethernet Cable Assembly
The M8/M12 Cable Assembly features a 4-position industrial Ethernet connection with D keying, a straight cable exit, and IP67 environmental protection. It is designed with tinned copper conductors and a blue PA66+25GF jacket, suitable for Ethernet/IP applications in industrial environments. The assembly includes a plug connector and has a length of 5000 mm, ensuring robust connectivity for automation and control systems. Compliant with RoHS, ELV, and REACH standards, it provides reliable corrosion-resistant performance with a straight mounting configuration for ease of installation.
TE CONNECTIVITY TAD2413A201005 Industrial Ethernet Cable Assembly Specifications:
- Application: Industrial Ethernet
- Number of Positions: 4
- Environmental Protection: IP67
- Conductor Material: Tinned Copper
- Cable Jacket Color: Blue
- Cable Exit Angle: Straight
- Housing Material: PA66+25GF
- Cable Type: Overmolded TPE
- Wire Size: 24 AWG
- Cable Length: 5000 mm
- Connectors: M12 Pigtail, Plug, D keying
- Operational Voltage: 30 VDC
- Compliance: EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2, REACH
- Certifications: IP67; Halogen Content: Not Low Halogen
- Packaging: Bag
- Part Number: TAD2413A201-005
Buy the TE Series Ethernet/IP Cable: TAD2413A201-005
Purchase the TE Industrial Ethernet Cable Assembly TAD2413A201-005 today for reliable data transmission in demanding industrial environments. Designed with IP67 protection, it features a 4-position M12 connector with D keying, a straight cable exit, and a 5-meter length for flexible installation. Constructed with tinned copper conductors and a rugged PA66+25GF jacket, it ensures durability and corrosion resistance. Ideal for Ethernet/IP applications, this assembly complies with RoHS, ELV, and REACH standards, delivering high performance and ease of use for automation and control systems.
Get TE TAD2413A201-005 today—built for industrial Ethernet performance and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TAD2413A201005?
You can click on the BUY or RFQ button to purchase TAD2413A201005 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TAD2413A201005?
You can download the TAD2413A201005 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TAD2413A201005?
TE CONNECTIVITY
