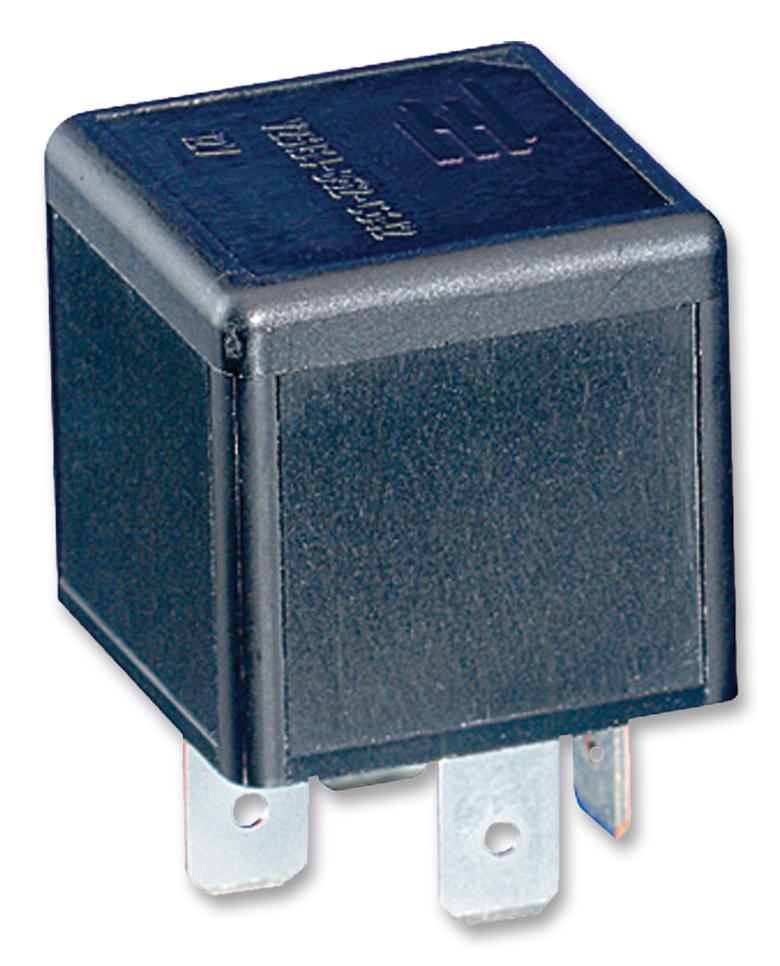

TE CONNECTIVITY V23134B0052C642 Automotive Power Relay
The Power Relay F4 is a versatile automotive relay designed for reliable operation in demanding vehicle electrical systems. It features plug-in mini ISO connection, various contact configurations including NO, NC, and form C, with contact gaps greater than 0.8mm. Capable of handling up to 72VDC with high current limits, it supports applications such as ABS control, cooling fans, fuel pumps, and lighting. It offers rugged construction, insulation strength of 500V ins between open contacts, and features like dielectric testing, vibration resistance, and IP54/IP67 protection for durability in automotive environments. Available with different coil voltages and terminal options, it ensures secure and easy installation.
TE CONNECTIVITY V23134B0052C642 Automotive Power Relay Specifications:
- Contact arrangement: 1 NO, 1 NC, 1 form C, 1 form U, 2 NO
- Contact gap: >0.8mm
- Rated voltage: up to 72VDC
- Maximum switching voltage: 80VDC
- Maximum load current: 60A (23°C), 40A (85°C), 41.7A (125°C)
- Limiting switching current: 420A (NO/NG)
- Operate/Releases time: typ. 7ms
- Electrical endurance: >2x10^5 operations
- Mechanical endurance: >1x10^6 operations
- Coil voltage options: 12VDC, 24VDC, 42VDC (customized available)
- Insulation: 500V insulation between contacts and coil
- Protection: IP54 dustproof, IP67 sealed for environmental durability
- Vibration resistance: >59g
- Operating temperature: -40°C to +125°C
- Coil resistance: varies by voltage (e.g., 1.6Ω for 12V coil, 3.2Ω for 24V), tested at +23°C
- Approval & compliance: IEC 61810-1, RoHS/ELV compliant
- Construction: Plug-in or PCB terminals, with optional brackets and special covers
Buy the TE Connectivity Series Power Relay F4: V23134B0052C642
Discover the high-performance automotive relay designed for demanding vehicle systems. The Power Relay F4 offers plug-in ISO connection, multiple contact configurations, and high current ratings up to 60A. Built with rugged insulation and environmental protection, it ensures long-lasting reliability under extreme temperatures and vibrations. Ideal for ABS control, fuel pumps, lighting, and more, this relay is easy to install with various terminal options. Order online today and upgrade your vehicle’s electrical system with confidence and efficiency.
Buy TE Connectivity Power Relay F4 now and experience unmatched reliability and high current switching performance for automotive and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23134B0052C642?
You can click on the BUY or RFQ button to purchase V23134B0052C642 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23134B0052C642?
You can download the V23134B0052C642 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23134B0052C642?
TE CONNECTIVITY
