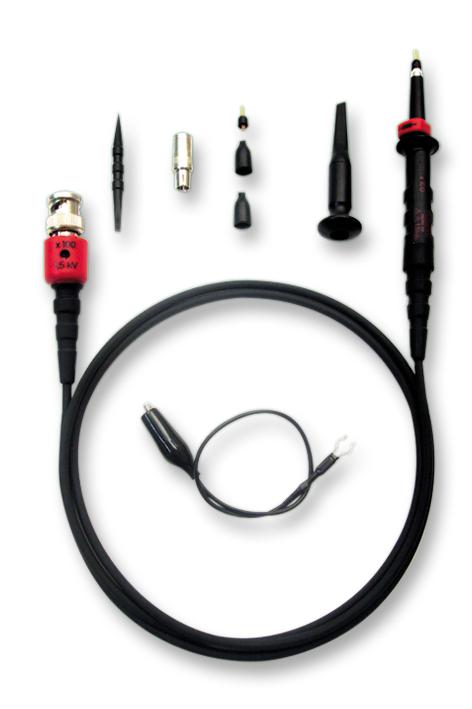

TESTEC HV250 High-Voltage Measurement Probe
The HV250 is a high-voltage passive probe designed for oscilloscopes and measurement equipment, capable of measuring up to 2500 volts peak DC and AC. It features a 100:1 attenuation ratio with an input impedance of 100 MΩ and a capacitance of 4 pF. With a bandwidth of 300 MHz and a rise time of 1.2 ns, it ensures precise high-speed measurements. Its compact design includes a 1.2-meter cable length and a compensation range of 10 to 50 pF, making it suitable for high-voltage testing in industrial and laboratory environments.
TESTEC HV250 High-Voltage Measurement Probe Specifications:
- Attenuation Ratio: x100
- Input Impedance: 100 MΩ
- Capacitance: 4 pF
- Bandwidth: 300 MHz
- Rise Time: 1.2 ns
- Cable Length: 1.2 m
- Max. Input Voltage: 2500Vp CAT I, DC incl. Peak AC
- Compensation Range: 10..50 pF
Buy the Testec HV250 – Reliable High-Voltage Probe for Industrial Applications
Purchase the Testec HV250 high-voltage measurement probe online today to ensure accurate and reliable voltage testing up to 2500V. Its excellent bandwidth of 300 MHz and fast rise time of 1.2 ns make it ideal for high-speed measurements in industrial, laboratory, and maintenance applications. Designed with a high input impedance of 100 MΩ and a capacitance of 4 pF, it guarantees minimal circuit loading. The compact 1.2-meter cable, wide compensation range, and robust build quality ensure durability and ease of use while providing precise voltage readings in challenging environments.
Get Testec HV250 today—built for precise high-voltage measurements and long-lasting durability in industrial testing environments.
Frequently Asked Questions
Where can I buy TESTEC HV250?
You can click on the BUY or RFQ button to purchase HV250 from an authorized TESTEC distributor.
How do I troubleshoot issues or seek technical support for part HV250?
You can download the HV250 datasheet or visit the TESTEC website for support.
Who is the manufacturer of HV250?
TESTEC
