TESTEC TTSI7005 Differential Voltage Probe
The TT-SI 7000 series active differential probes are designed for safe, accurate voltage measurements between two points where neither is ground referenced. Suitable for a wide variety of measurement tasks, these probes are compatible with oscilloscopes from all major brands. The series includes models TT-SI 7002 and TT-SI 7005, featuring attenuation ratios from x1 to x200 and bandwidths from 15MHz to 60MHz. They handle maximum input voltages up to 700V DC peak, ensuring precise, high-voltage measurements with safety standards compliant standards such as IEC 1010-031:2015 CAT III.
TESTEC TTSI7005 Differential Voltage Probe Specifications:
- Attenuation: x1, x5, x10, x20, x50, x200
- Bandwidth: 15MHz @ x20, 25MHz @ x50, 60MHz @ x10
- Max. Input Voltage: +700V (DC + AC peak) @ x200, +175V @ x50
- Absolute Max Input Voltage: 600Vrms (each side to ground)
- Safety Standard: IEC 61010-031:2015 — CAT III

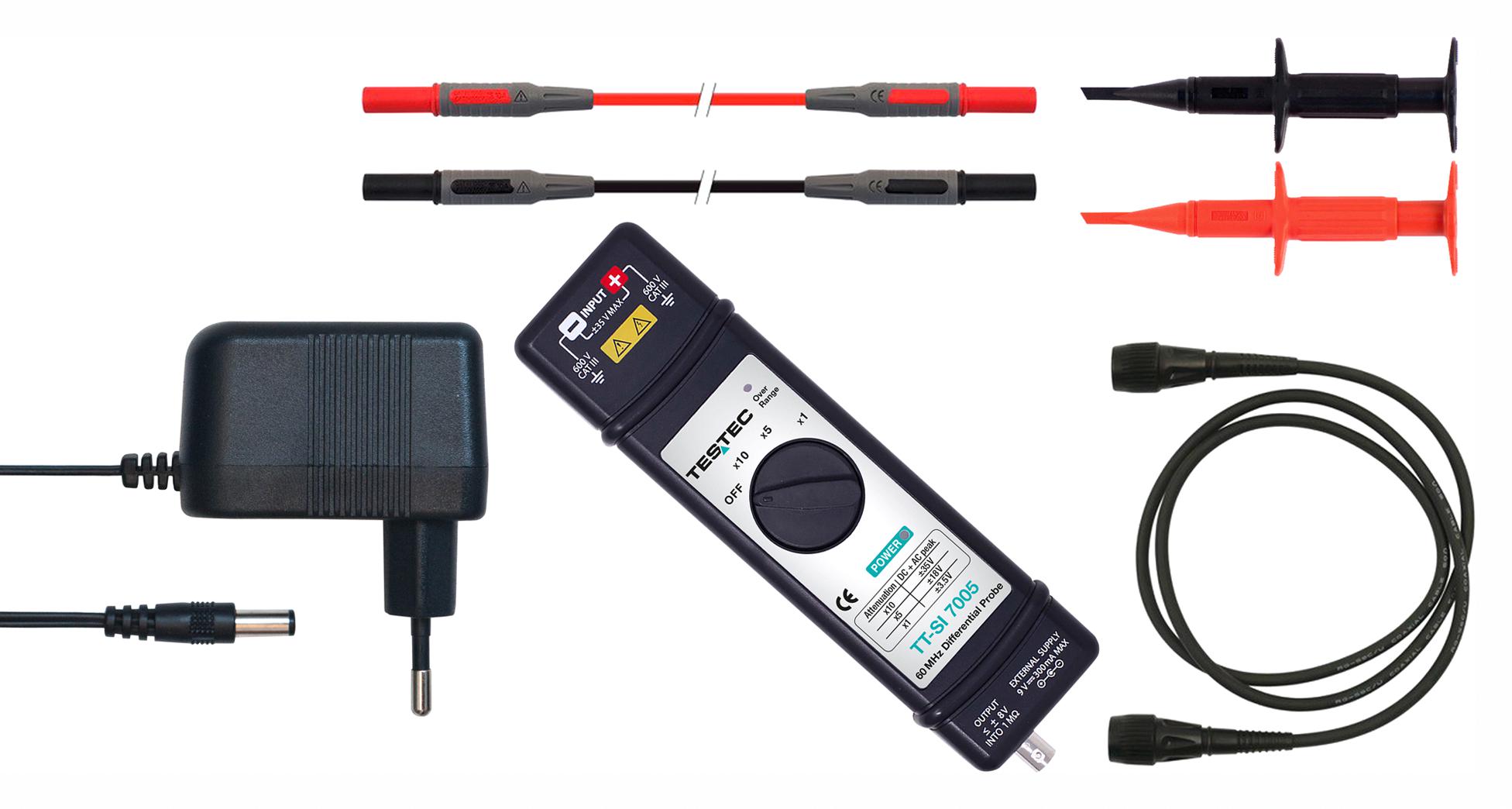

- Supplied Accessories: 2 test leads with insulated banana plugs, grabbers, insulated BNC cable, mains adapter for EU
- Physical & Technical: Includes insulated test leads, grabbers, BNC cable, and EU mains adapter for reliable measurements
Buy the Buy Testec Differential Probes Part Number TTSI7005 Online
Enhance your testing capabilities with the Testec Series7000 differential probes, designed for high-voltage safety and accuracy. The TT-SI 7005 model supports up to 700V DC peak, offers attenuation ratios from x1 to x200, and bandwidths up to 60MHz, making it ideal for various measurement tasks. Easily connect to oscilloscopes from all major manufacturers, with included test leads, grabbers, BNC cable, and EU mains power adapter for hassle-free setup. Ensure safe operations and precise readings in your high-voltage testing environments.
Order your Testec Series7000 TT-SI 7005 differential probe today and ensure precise high-voltage measurements with safe, reliable performance.
Frequently Asked Questions
Where can I buy TESTEC TTSI7005?
You can click on the BUY or RFQ button to purchase TTSI7005 from an authorized TESTEC distributor.
How do I troubleshoot issues or seek technical support for part TTSI7005?
You can download the TTSI7005 datasheet or visit the TESTEC website for support.
Who is the manufacturer of TTSI7005?
TESTEC
