TESTEC TTHVP40 High Voltage Measurement Probe
This high voltage probe is designed for accurate measurement of high-voltage rails up to 40kV DC or peak AC, complying with BS EN 61010 standards. It features a bandwidth of 300Hz to 50MHz, an attenuation factor of 1000:1, and a maximum input voltage of 28kVrms AC and 30kV peak. The device provides an input impedance of 100MΩ with 1pF capacitance, rise time of 7ns, and dimensions of 360mm x 75mm x 75mm. Suitable for oscilloscopes and multimeters, it ensures safety and precision in high-voltage testing environments.
TESTEC TTHVP40 High Voltage Measurement Probe Specifications:
- Bandwidth: 50MHz [-3dB], 40MHz (-3dB), 300Hz [-3dB]
- Attenuation: 1000:1, 21% @ 1mA, 26% @ 1mA, 26% @ 1mA
- Accuracy: VDC 26%, VAC 26% @ 1kHz, VAC 23% @ 1kHz, VAC 25% @ 60Hz
- Input Impedance: 100MΩ / 1pF, 100MΩ / 3pF, 1000V / -
- Rise Time: 7ns
- Compensation Range: 15..30pF
- Max Input Voltage: AC 28kVrms, PEAK 30kV
- Cable Length: 1.0m to 2.0m
- Dimensions: 360mm x 75mm x 75mm
- Overvoltage Category: CAT I / Pollution Degree 2
- Certifications: BS EN 61010 compliant for measurements up to 40kV
- Input Voltage: AC 28kVrms, PEAK 30kV

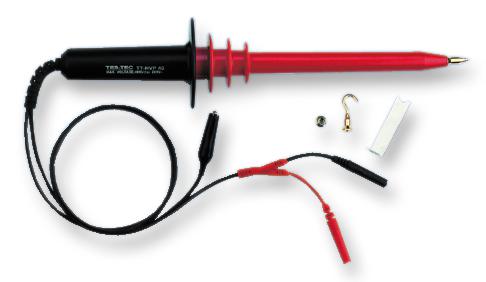

Buy the Testec Series High Voltage Probe: TT-HVP 40
Enhance your high-voltage testing with the Testec TT-HVP 40. This robust probe provides safe, precise measurements up to 40kV DC or peak AC, ensuring reliable performance in industrial and laboratory settings. Its 50MHz bandwidth, high attenuation ratio, and 7ns rise time make it ideal for oscilloscopes and multimeters. With a compact design and high safety standards, the TT-HVP 40 ensures accurate results, durability, and ease of use. Order online now and experience professional-grade high-voltage measurement.
Get Testec TT-HVP 40 today—built for precision and long-lasting durability in high-voltage measurement environments.
Frequently Asked Questions
Where can I buy TESTEC TTHVP40?
You can click on the BUY or RFQ button to purchase TTHVP40 from an authorized TESTEC distributor.
How do I troubleshoot issues or seek technical support for part TTHVP40?
You can download the TTHVP40 datasheet or visit the TESTEC website for support.
Who is the manufacturer of TTHVP40?
TESTEC
