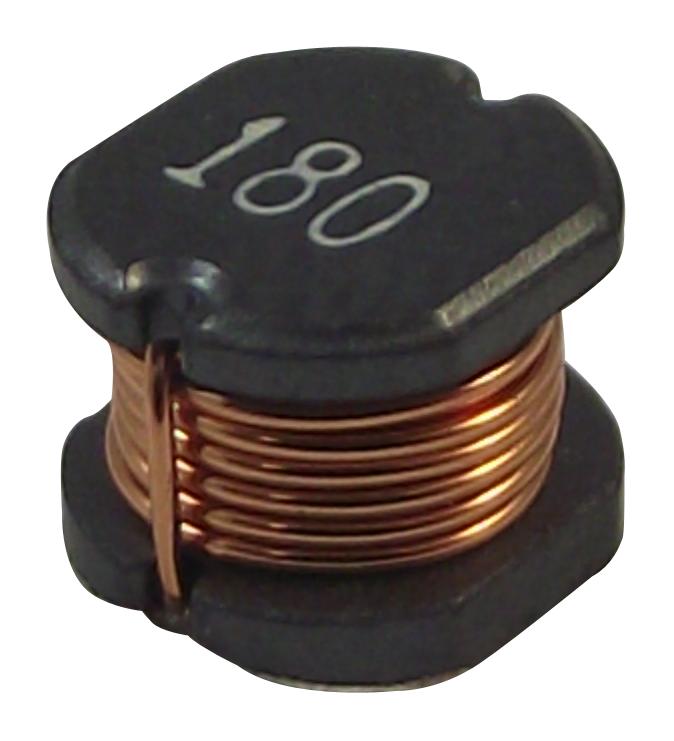

TRACO POWER TCK046 High-Frequency Inductor
The TCK-046 is a compact inductor designed for high-frequency applications, featuring an inductance of 18 pH with a tolerance of +20% at 1 KHz and 1 V. It can handle a rated current of 1.23 A and operates efficiently within a temperature range of -40°C to +125°C. This inductor has a maximum DCR of 150 mOhm, ensuring minimal power loss, and is suitable for use in power supplies, filtering, and RF circuits, offering reliable performance in demanding electronic systems.
TRACO POWER TCK046 High-Frequency Inductor Specifications:
- Inductance: 18 pH +20% at 1 KHz / 1 V
- Impedance (DCR): 150 mOhm max.
- Rated Current: 1.23 A
- Operating Temperature Range: -40°C to +125°C
- Outline Dimensions: 5.2 mm x 5.8 mm x 1.3 mm (max. dimensions)
- Impedance Curve: Provided for performance analysis
- Material: Inductive coil with high-quality magnetic core
- Application: Power supplies, RF circuits, filtering
- Compatibility: Suitable for high-frequency electronic designs
- Design: Compact surface-mount package with PCB pattern support
Buy the Buy Traco Power Inductor TCK-046 Part Number TCK-046 Online
Purchase the Traco Power TCK-046 inductor online today and improve your electronic circuit designs. With a compact size, high rated current of 1.23 A, and excellent temperature range from -40°C to +125°C, this inductor is perfect for power supply modules, RF circuits, and filtering systems. Its low DCR of 150 mOhm ensures minimal power loss and efficient performance in demanding applications. Order now for quick delivery and get premium quality components for your projects.
Order your Traco Power TCK-046 high-performance inductor today and enhance your electronic projects with reliable, high-frequency filtering solutions.
